EnerSys PowerSafe SBS XL 170F-FT

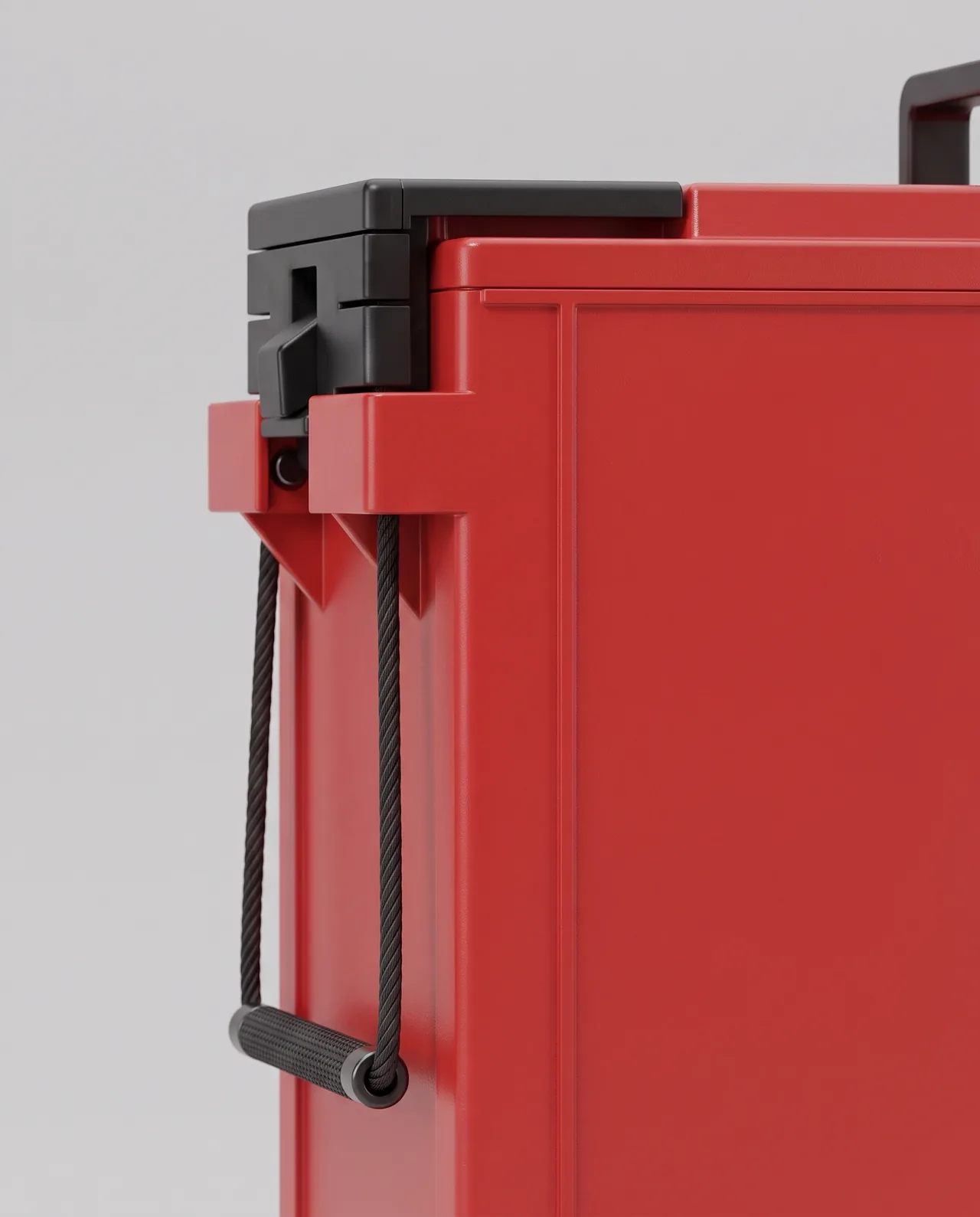

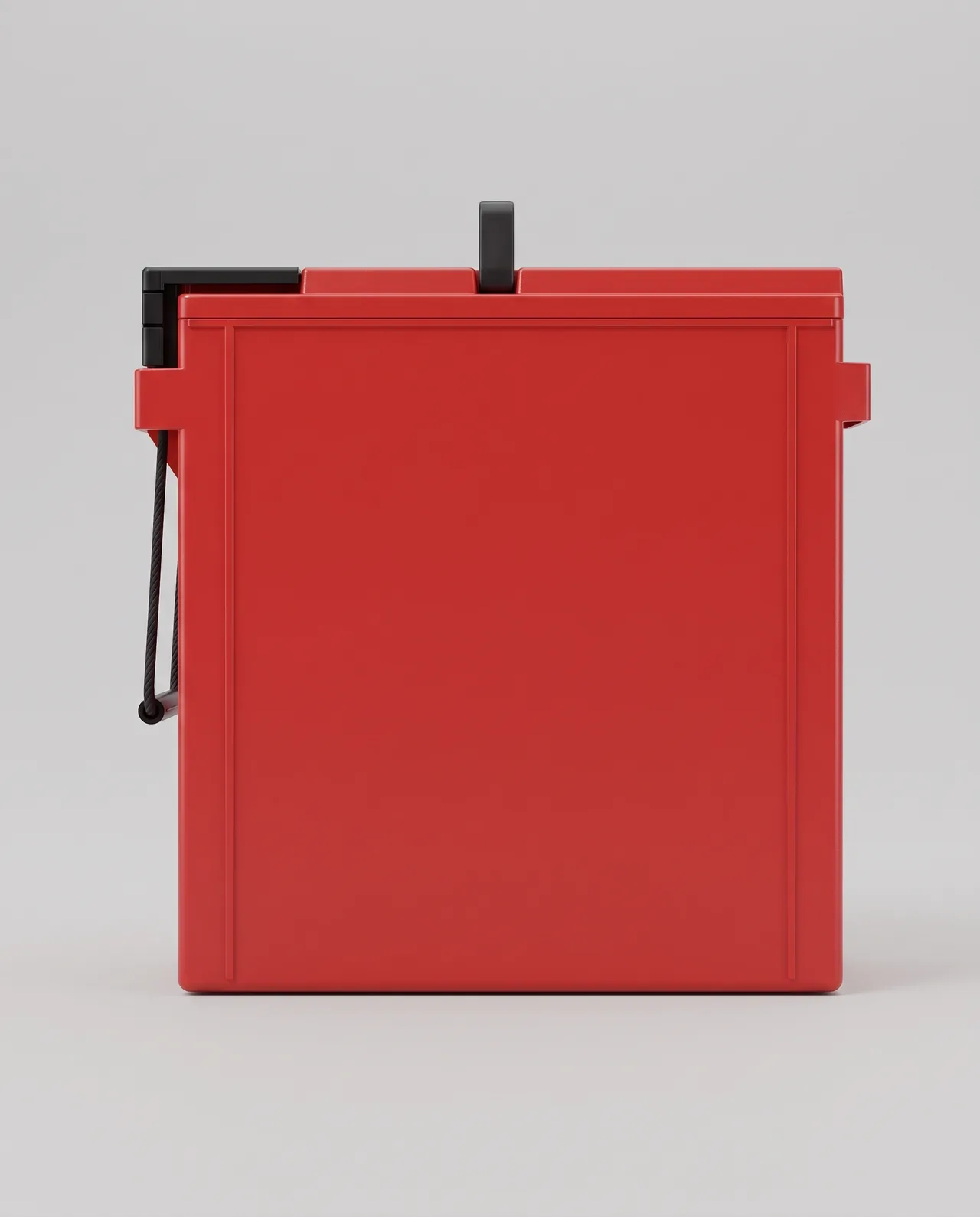

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
25 of 60 publishedChemistry and form
- Chemistry family
- Lead acid
- Chemistry detail
- Tppl vrla
- Unit form
- Monobloc
- Cells in series
- 6
- Terminal access
- Front
Capacity and energy
- Rated capacity
- 167.2 Ah
- Capacity rating rate (hour rate)
- 8 h
- Capacity rating end voltage
- 1.75 V/cell
- Capacity rating temperature
- 25 °C
Discharge performance
- Short-circuit current
- 4,100 A
- Internal resistance
- 3 mΩ
Discharge performance table
| Discharge duration (min) | Rating basis | Value | End voltage (V/cell) | Rating temperature (°C) | Label as published | Headline rating |
|---|---|---|---|---|---|---|
| 30 min | Amperes | 192.9 | 1.75 V/cell | 25 °C | Discharge Currents (Amperes) 77F (25C), 30 minutes, 1.75 Vpc | — |
| 60 min | Amperes | 116.4 | 1.75 V/cell | 25 °C | 1 hour, 1.75 Vpc, 77F | — |
| 480 min | Amperes | 20.9 | 1.75 V/cell | 25 °C | 8 hours, 1.75 Vpc, 77F | Yes |
| 30 min | Amperes | 202 | 1.75 V/cell | 35 °C | Discharge Currents (Amperes) 95F (35C), 30 minutes, 1.75 Vpc | — |
| 480 min | Amperes | 21.3 | 1.75 V/cell | 35 °C | 8 hours, 1.75 Vpc, 95F | — |
Voltage and charging
- Nominal voltage
- 12 V
Life and warranty
- Design life
- 10 years
- Design life reference temperature
- 35 °C
- Shelf life before freshening charge
- 24 months
Thermal
- Operating temperature, minimum
- -40 °C
- Operating temperature, maximum
- 65 °C
Physical
- Length
- 561 mm
- Width
- 125 mm
- Height
- 316 mm
- Weight
- 58 kg
- Electrolyte volume
- 2.75 L
Compliance
- Safety certifications
- IEC 60896 21, IEC 60896 22, Telcordia gr 4228, Nebs gr 63, UL 94 v0
- Transport classification
- Dot 49cfr non spillable, Icao iata pi 806
