Gerchamp CDU3150 L2L 150kW In-Rack CDU

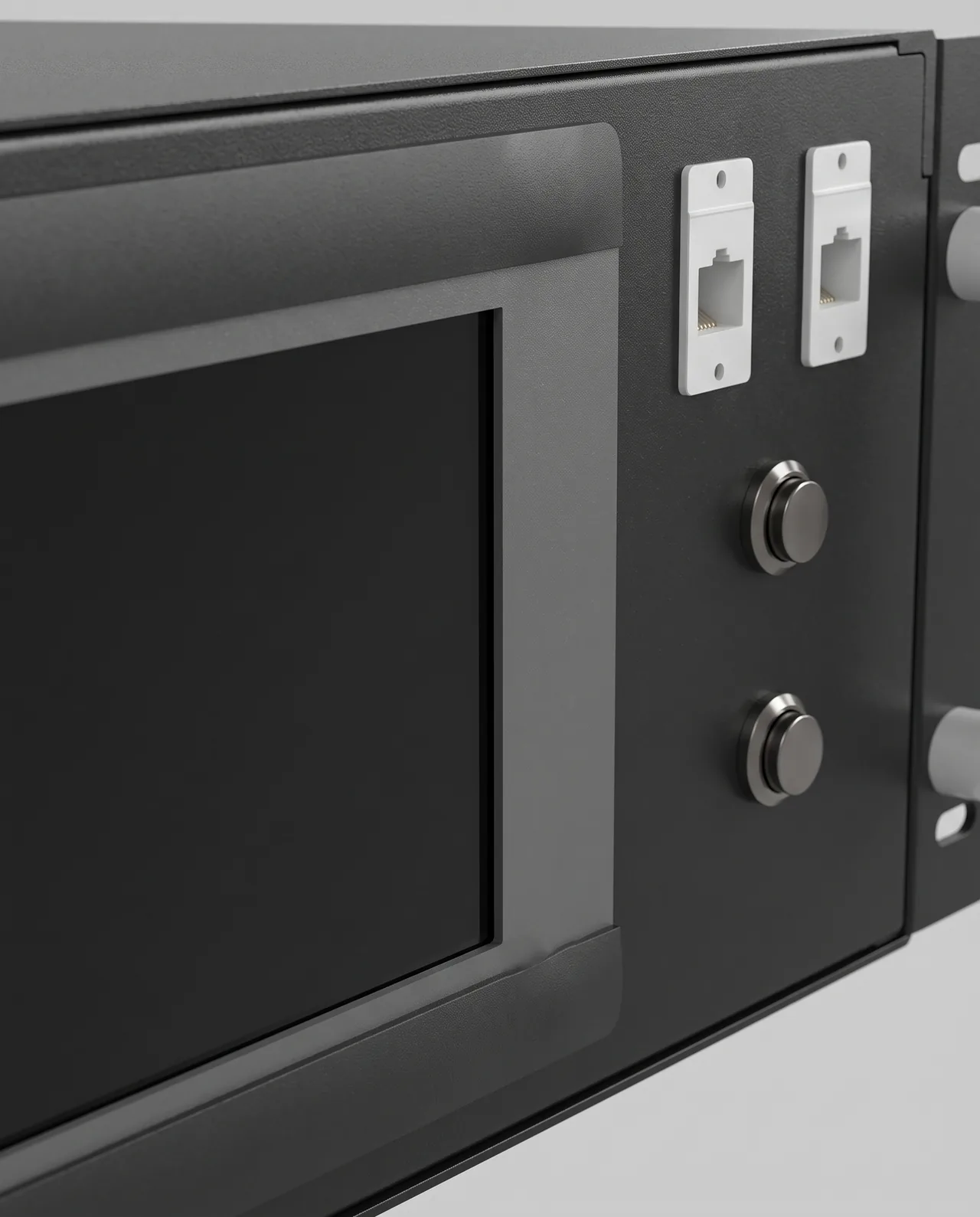

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
25 of 58 publishedType and form
- Heat rejection type
- Liquid to liquid
- Form factor
- In rack
- Rack units
- 4 U
Capacity and rating
- Cooling capacity
- 152 kW
- Approach temperature (at nominal)
- 4 K
Primary loop
- Primary (FWS) pressure drop
- 80 kPa
- Primary (FWS) connection size
- 25.4 mm
Secondary loop
- Secondary (TCS) nominal flow rate
- 152 l/min
- Secondary (TCS) maximum flow rate
- 230 l/min
- Pumps running at nominal flow
- 1
- Secondary (TCS) available external differential pressure
- 200 kPa
- Secondary (TCS) supply temperature, minimum
- 10 °C
- Secondary (TCS) supply temperature, maximum
- 55 °C
- Secondary (TCS) connection size
- 25.4 mm
Pumps and redundancy
- Number of pumps
- 2
- Pump redundancy
- Selectable
Electrical
- Supply frequency
- 50 60
- Maximum power consumption
- 1.5 kW
Physical
- Height
- 178 mm
- Width
- 450 mm
- Depth
- 1,055 mm
- Sound pressure level
- 54 dBA
- Sound measurement distance
- 3 m
Control
- Control and monitoring protocols
- Modbus rtu, SNMP
- Dew point control
- Standard
