Gerchamp CDU3680 L2L 680kW In-Row CDU

Name: Gerchamp CDU3680 L2L 680kW In-Row CDU
Brand: Gerchamp

Gerchamp CDU3680 L2L 680kW In-Row CDU — 34view

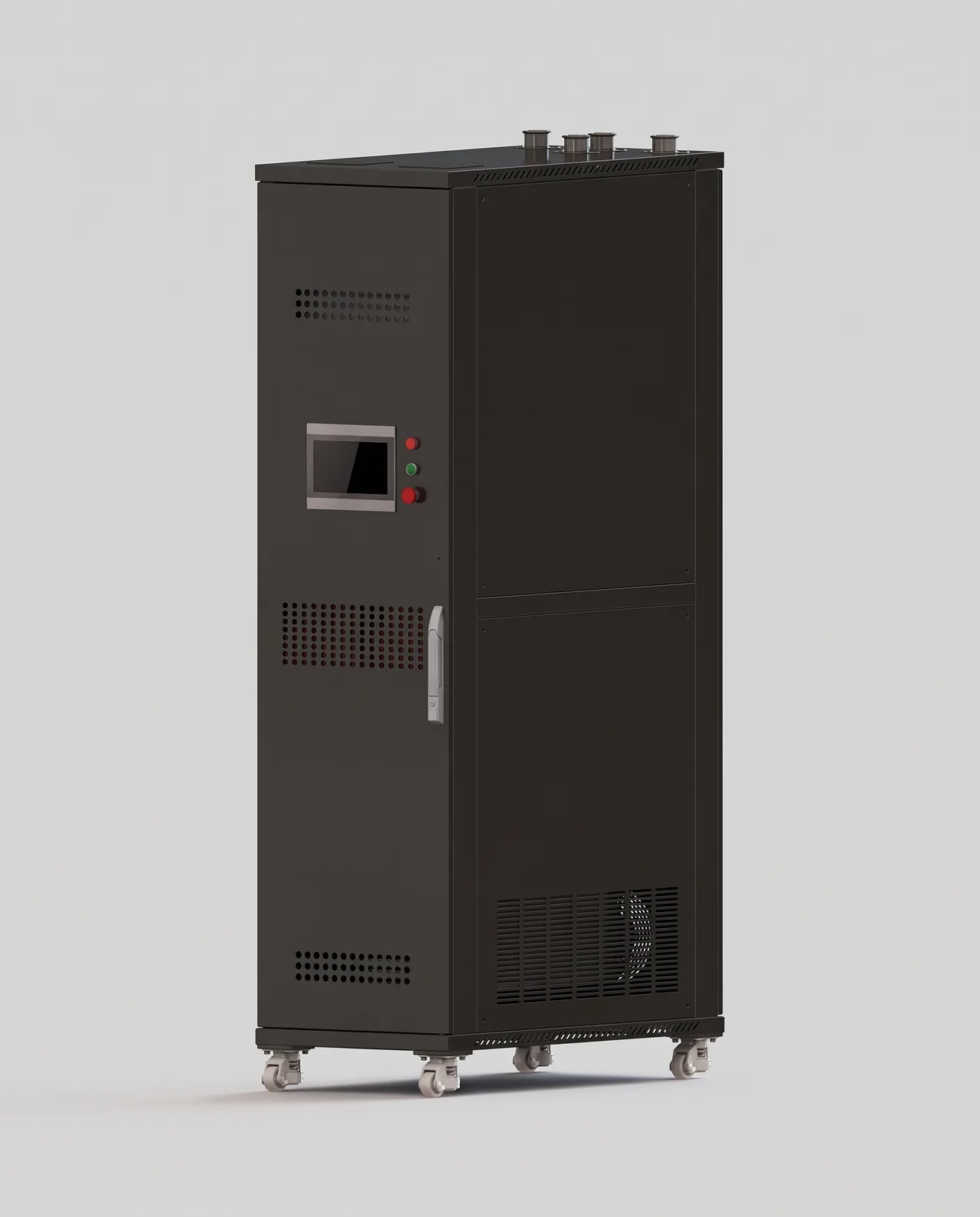

Gerchamp CDU3680 L2L 680kW In-Row CDU — elevation

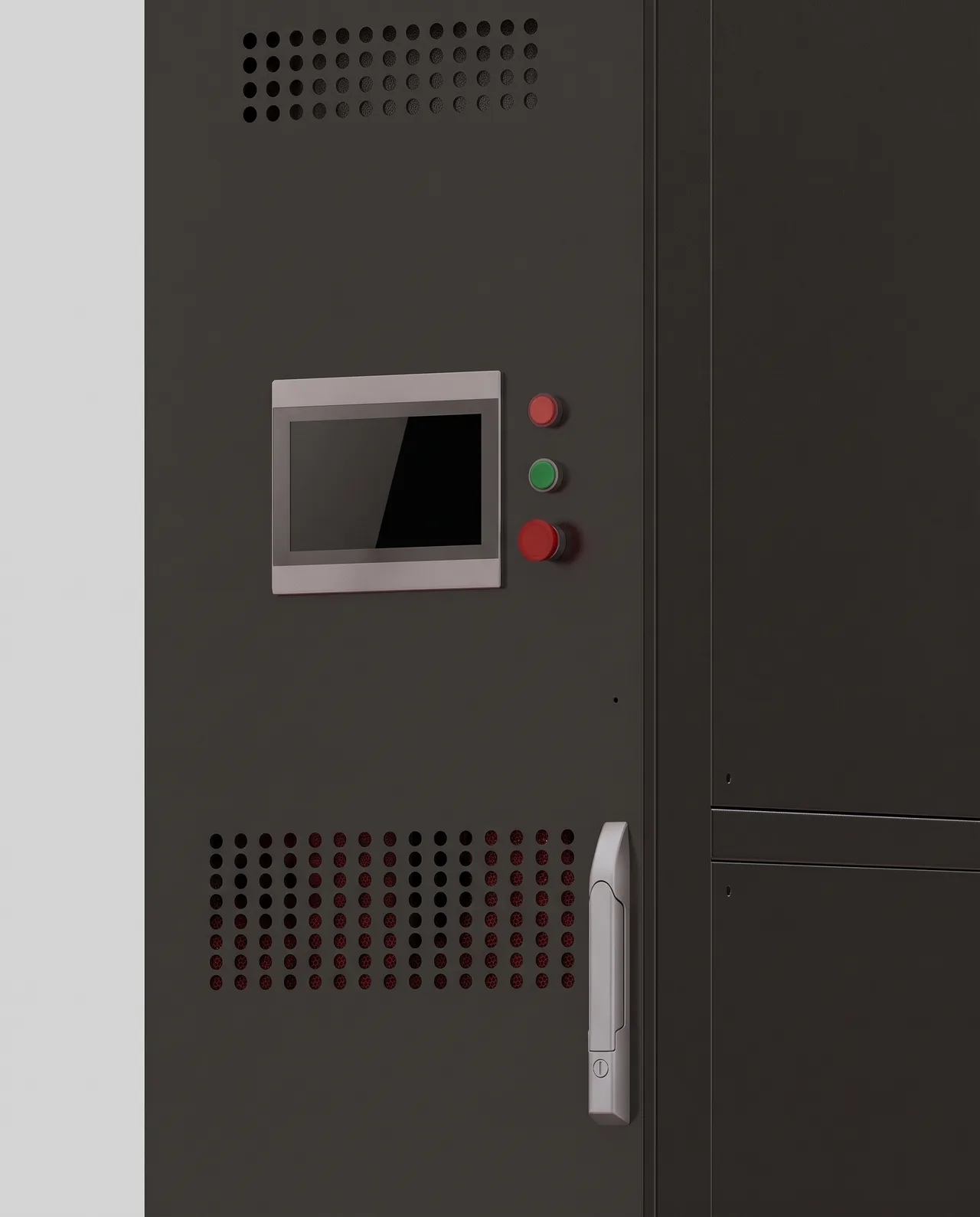

Gerchamp CDU3680 L2L 680kW In-Row CDU — detail

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.

Specification

23 of 58 published

Type and form

Heat rejection type: Liquid to liquid
Form factor: In row

Capacity and rating

Cooling capacity: 680 kW
Approach temperature (at nominal): 4 K

Primary loop

Primary (FWS) pressure drop: 80 kPa
Primary (FWS) connection size: 63.5 mm

Secondary loop

Secondary (TCS) nominal flow rate: 700 l/min
Secondary (TCS) maximum flow rate: 1,050 l/min
Pumps running at nominal flow: 1
Secondary (TCS) available external differential pressure: 200 kPa
Secondary (TCS) supply temperature, minimum: 10 °C
Secondary (TCS) supply temperature, maximum: 55 °C
Secondary (TCS) connection size: 63.5 mm

Pumps and redundancy

Number of pumps: 2

Electrical

Supply phases: 3
Supply frequency: 50 60
Maximum power consumption: 4.5 kW

Physical

Height: 1,900 mm
Width: 600 mm
Sound pressure level: 54 dBA
Sound measurement distance: 3 m

Control

Control and monitoring protocols: Modbus rtu, SNMP
Dew point control: Standard

Source

Manufacturer datasheetgerchamp.com

Leaflet 'gerchamp-cdu3680-l2l-680kw-leaflet-a0.pdf', Version A0 2026/04/15, two pages; specification table on p.2 headed '680 kW / 48U / L2L CDU'. THE MODEL NUMBER 'CDU3680' IS NOT PRINTED ANYWHERE ON THE LEAFLET: p.1 headline is '680kW/48U L2L In-Row CDU'. The model number comes from the product web page (H1 'CDU3680 L2L 680kW'), which links this exact PDF and reproduces the leaflet figures. 'Bluearth' as the line name is from the web page. Form factor is the manufacturer's own ('In-Row CDU'); the '48U' in the headline is the cabinet height, not a rack-mount size, and rack_units_u is forbidden for in_row. Pump redundancy is NOT written: p.1 says 'N+1 pump configuration' while the p.2 table says 'Single pump (N) / dual pump (N+N) / dual pump switchover' (see conflicts). The leaflet labels both pump-mode flows 'Maximum flow rate'; per the brief, single-pump is recorded as the nominal flow at 1 pump and dual-pump as the maximum. REVIEW 2026-09-22: every value re-read on the rendered page by the reviewer; leaflet https://www.gerchamp.com/media/d/gerchamp-cdu3680-l2l-680kw-leaflet-a0.pdf (Version A0 2026/04/15) is the figure source, the product page is cited because it prints the model number. QUARANTINED, not stored: depth (table 1050 mm vs p.1 footprint 1200 x 600 mm), pump redundancy (p.1 'N+1' vs p.2 'N / N+N / switchover'). noise_dba 54 is the printed BOUND. tcs_supply_temp_min/max_c carry the printed secondary coolant window 10-55C. 550 kg printed without a dry/wet qualifier, not stored.

GerchampManufacturer profile

Get started

Compare this model

Put it beside every other model in this class and see which figures share rating conditions.

Create a free account

Missing or wrong?

If you make this equipment and something here is out of date, or your range is not listed at all, tell us and we will correct it.

Submit a correctionManufacturers and suppliers

More Coolant Distribution Units (CDUs)

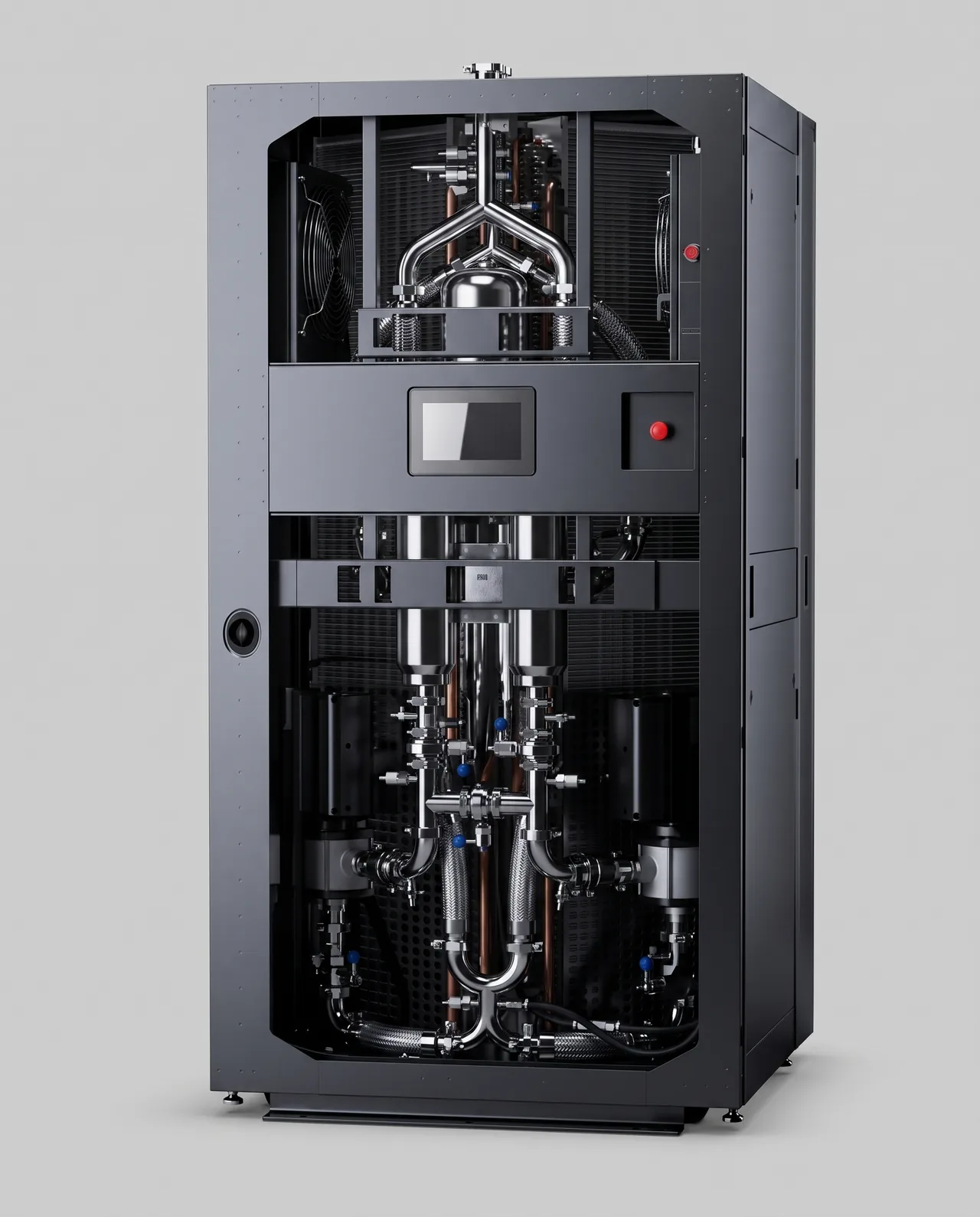

CoolIT SystemsCoolIT AHx240

Capacity: 240 kW
Rated at: 15 K approach
Form: in row
Heat rejection: liquid to air

20 of 58 fieldsView

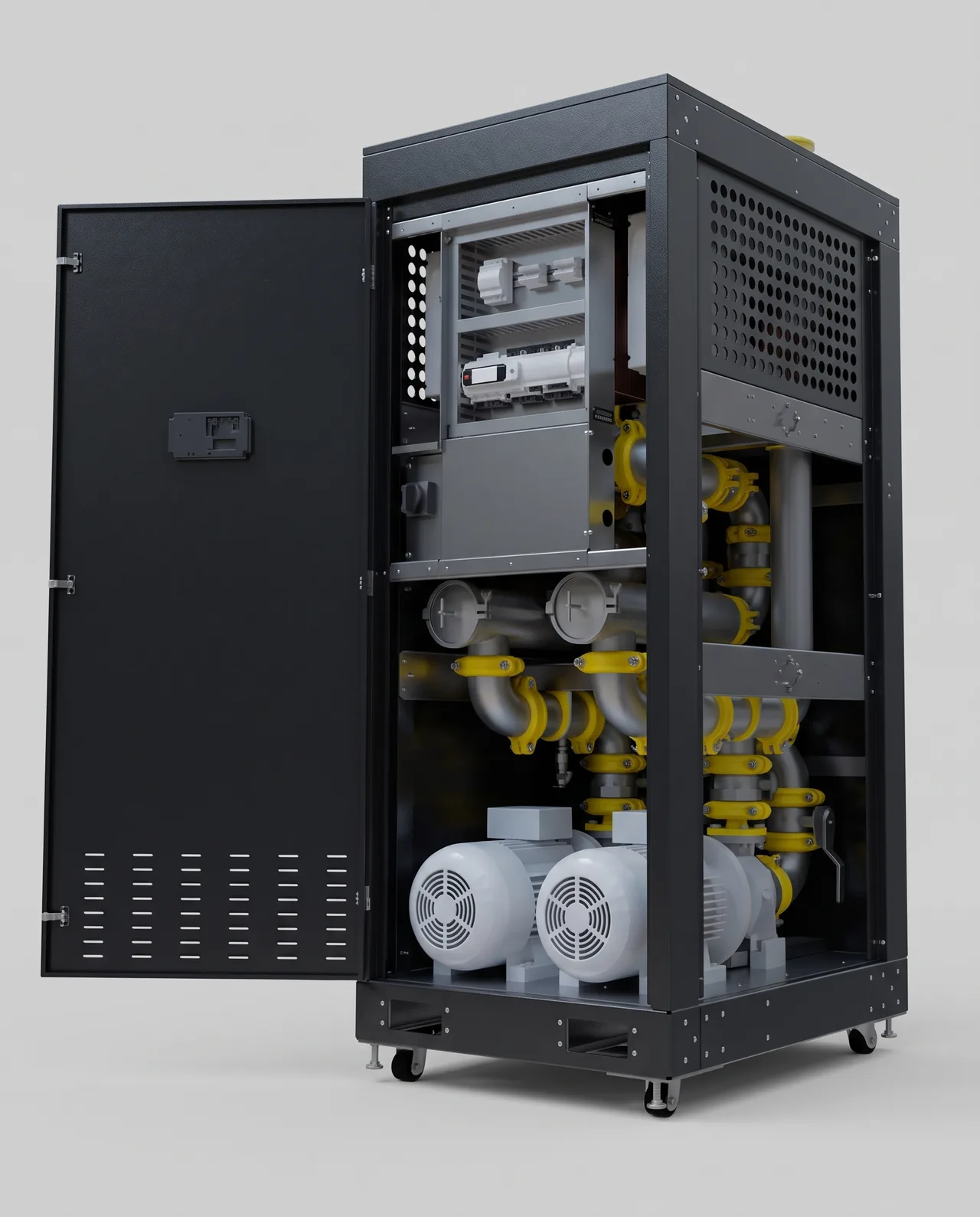

ChilldyneChilldyne CDU-1500

Capacity: 1,500 kW
Rated at: 4 K approach · 15 K ΔT
Form: floor mount
Heat rejection: liquid to liquid
Supply: 480 V · 3-phase

26 of 58 fieldsView

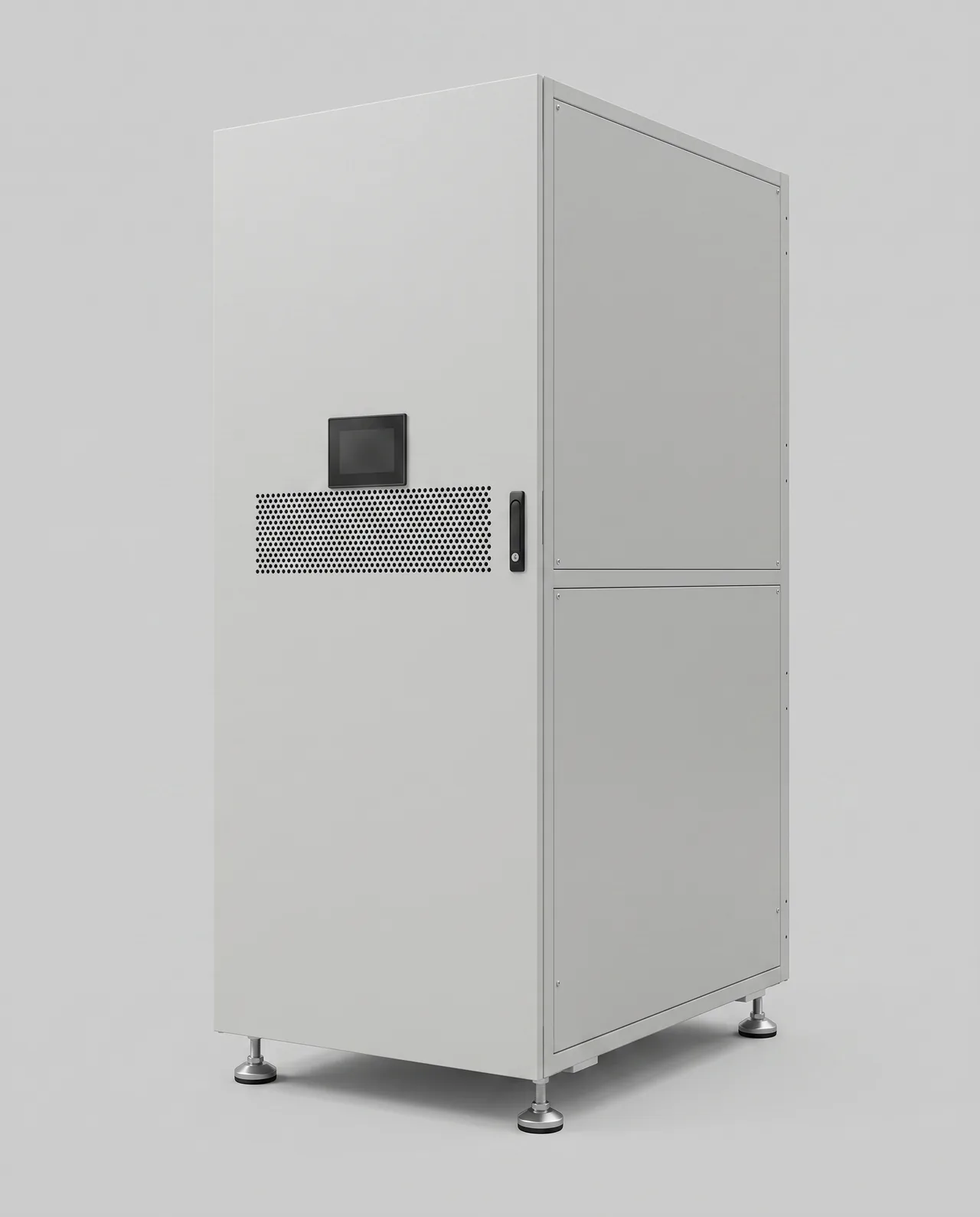

LiquidStackLiquidStack CDU-1MW

Capacity: 1,004 kW · max 1,350 kW
Rated at: 4 K approach · 10 K ΔT
Form: in row
Heat rejection: liquid to liquid

36 of 58 fieldsView

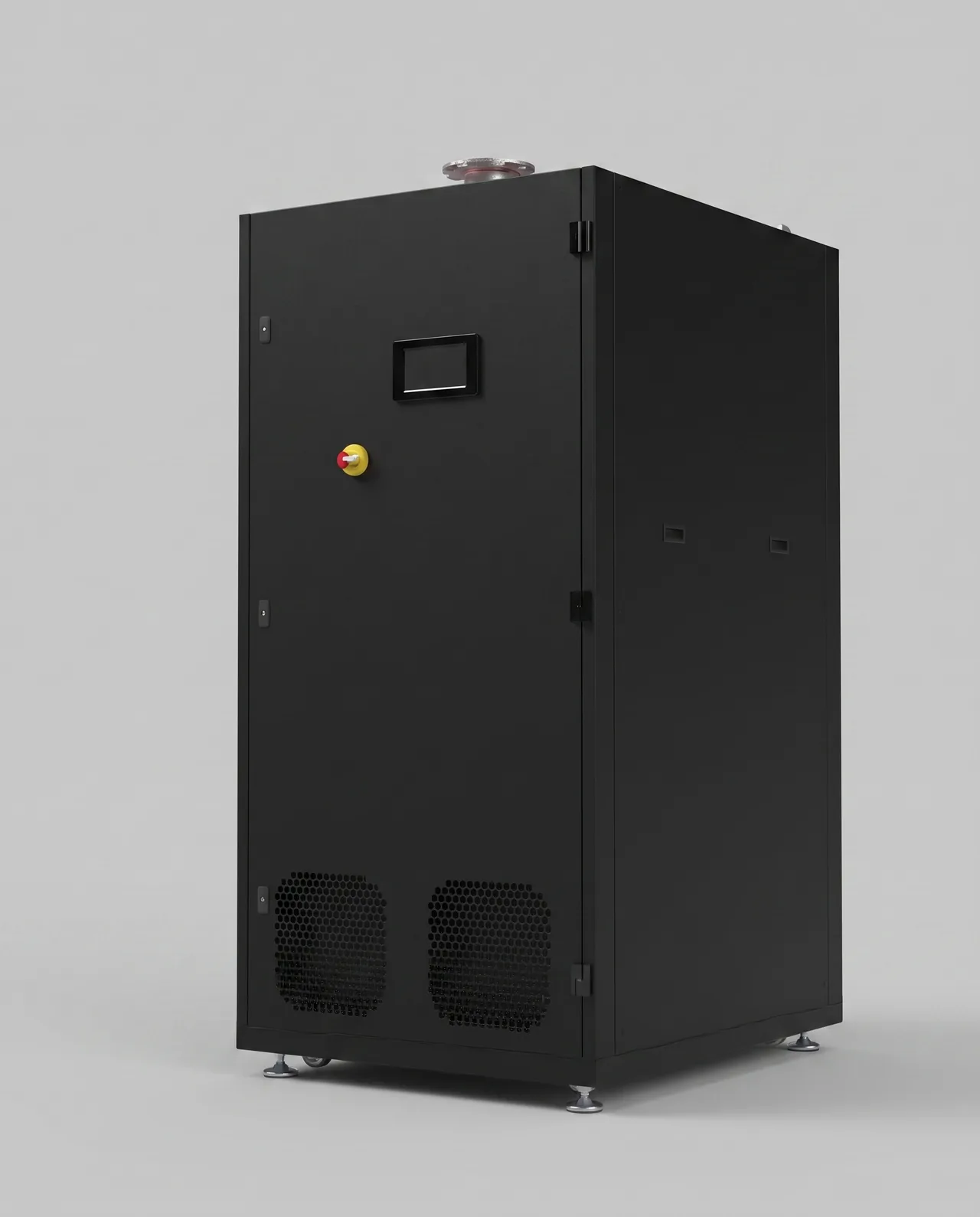

AiredaleAiredale CDU10

Capacity: 1,028 kW
Rated at: 4 K approach · FWS 27 °C · TCS 31 °C · 10 K ΔT
Form: in row
Heat rejection: liquid to liquid
Supply: 400 V · 3-phase

31 of 58 fieldsView

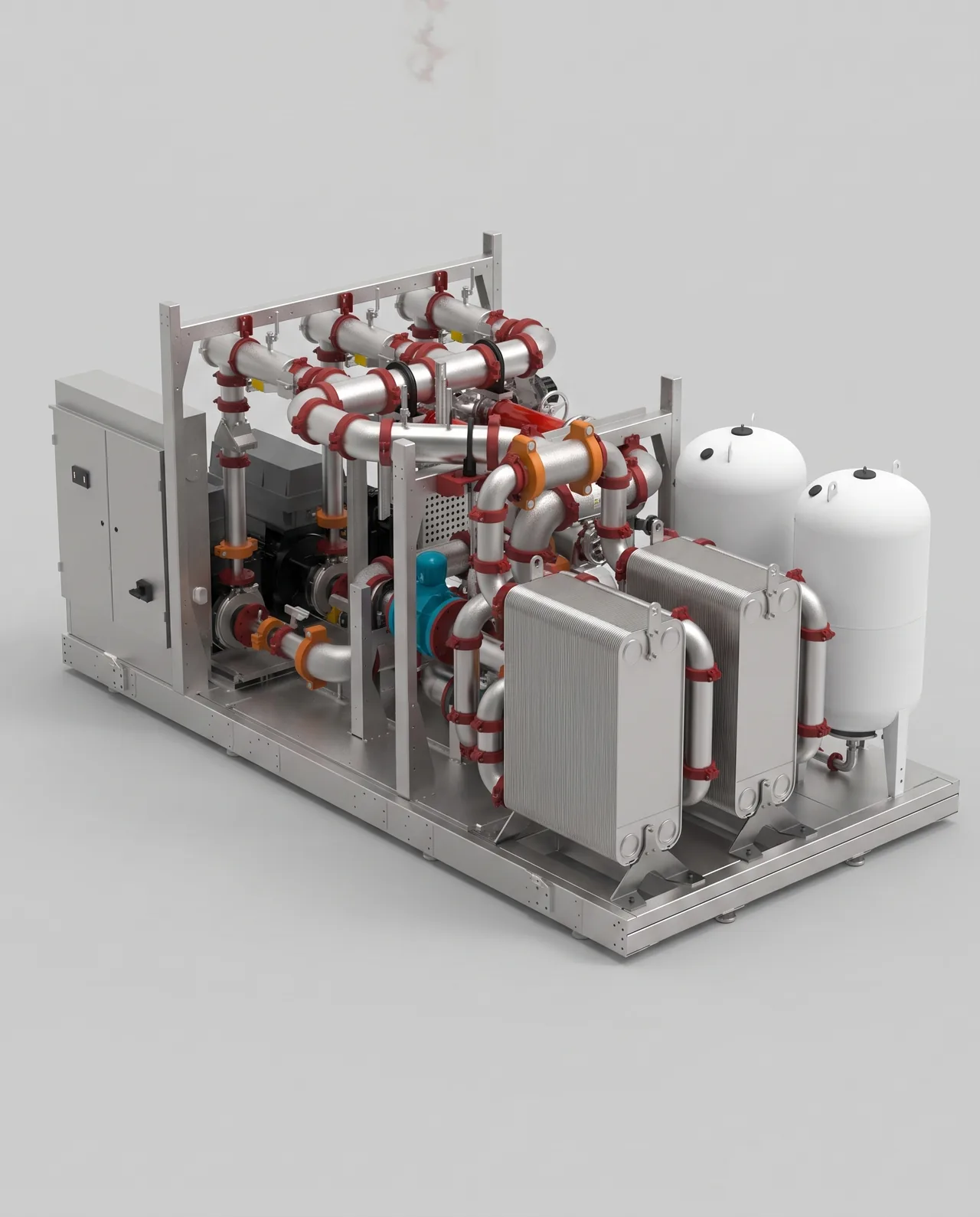

AiredaleAiredale CDU15

Capacity: 2,160 kW
Rated at: 4 K approach · FWS 27 °C · TCS 31 °C · 10 K ΔT
Form: skid
Heat rejection: liquid to liquid
Supply: 400 V · 3-phase

30 of 58 fieldsView

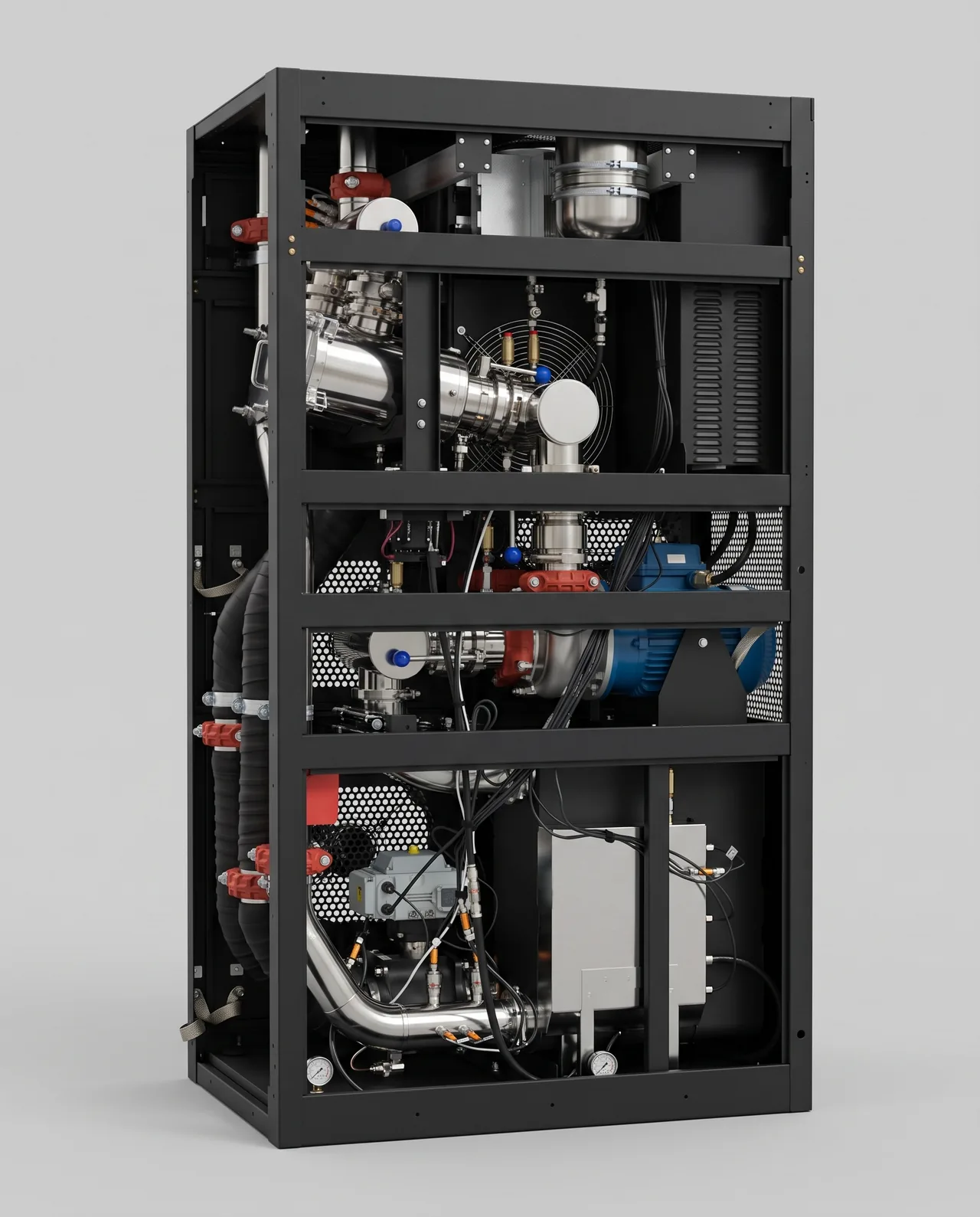

CoolIT SystemsCoolIT CHx2000
