Huawei ESM-48100B1

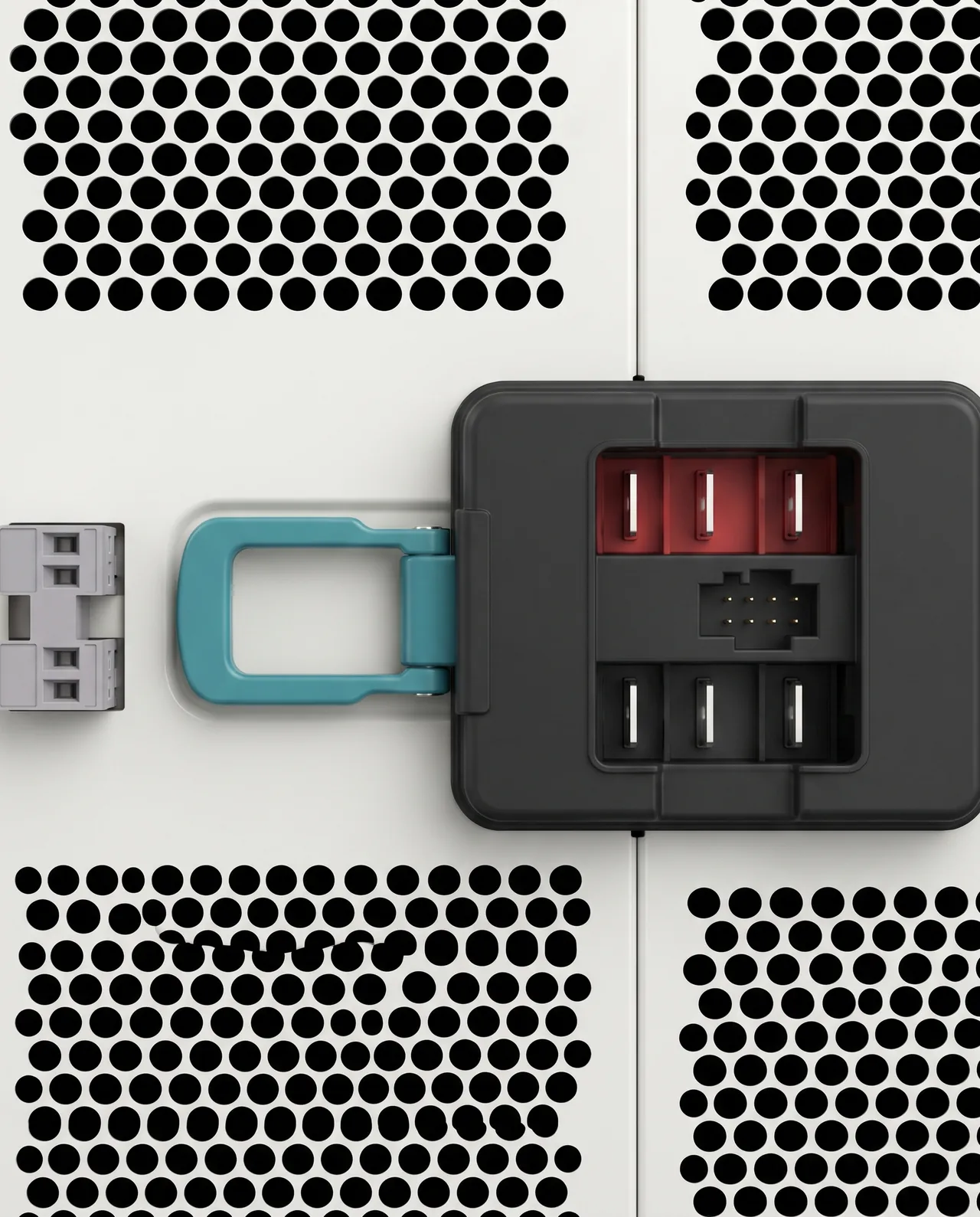

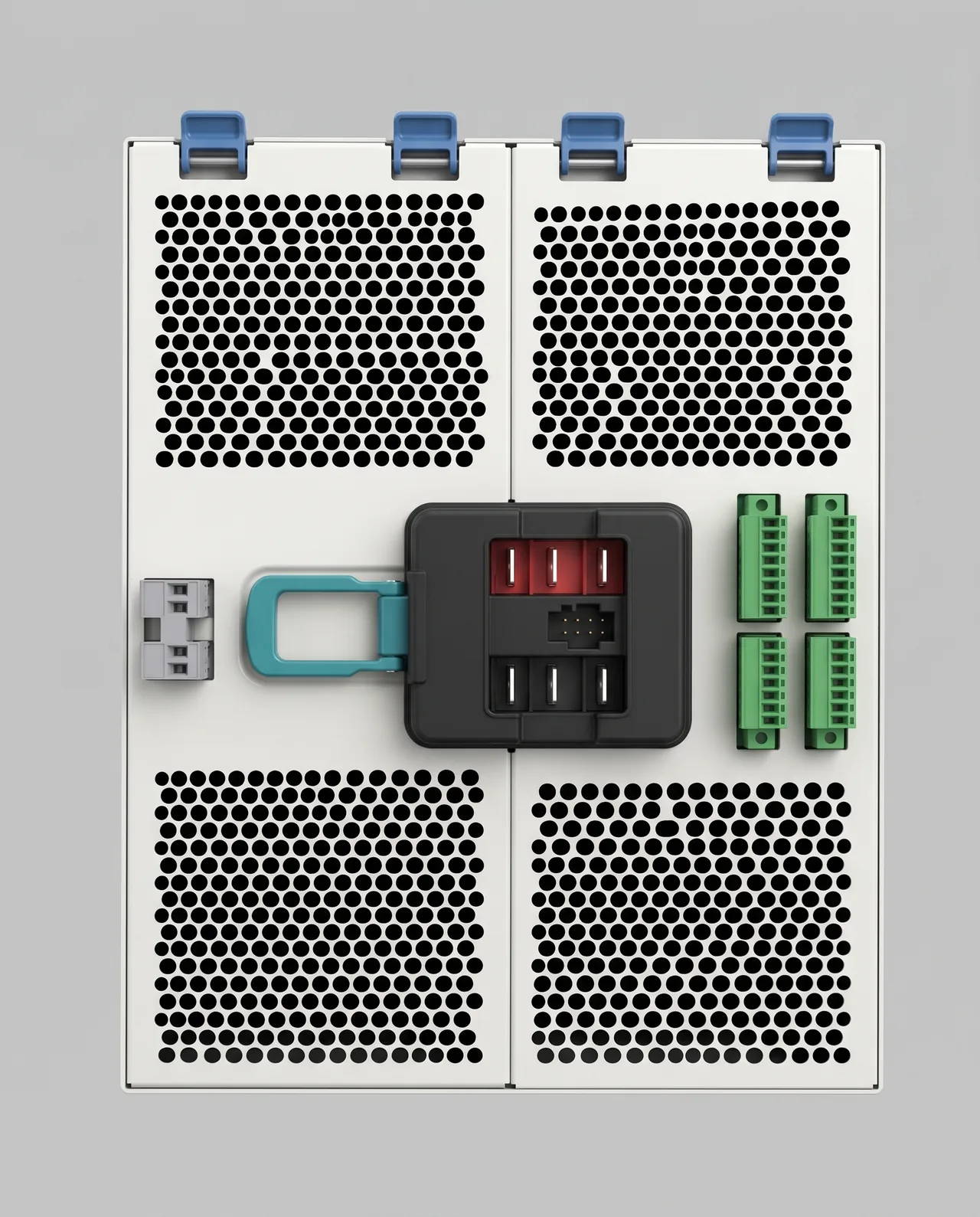

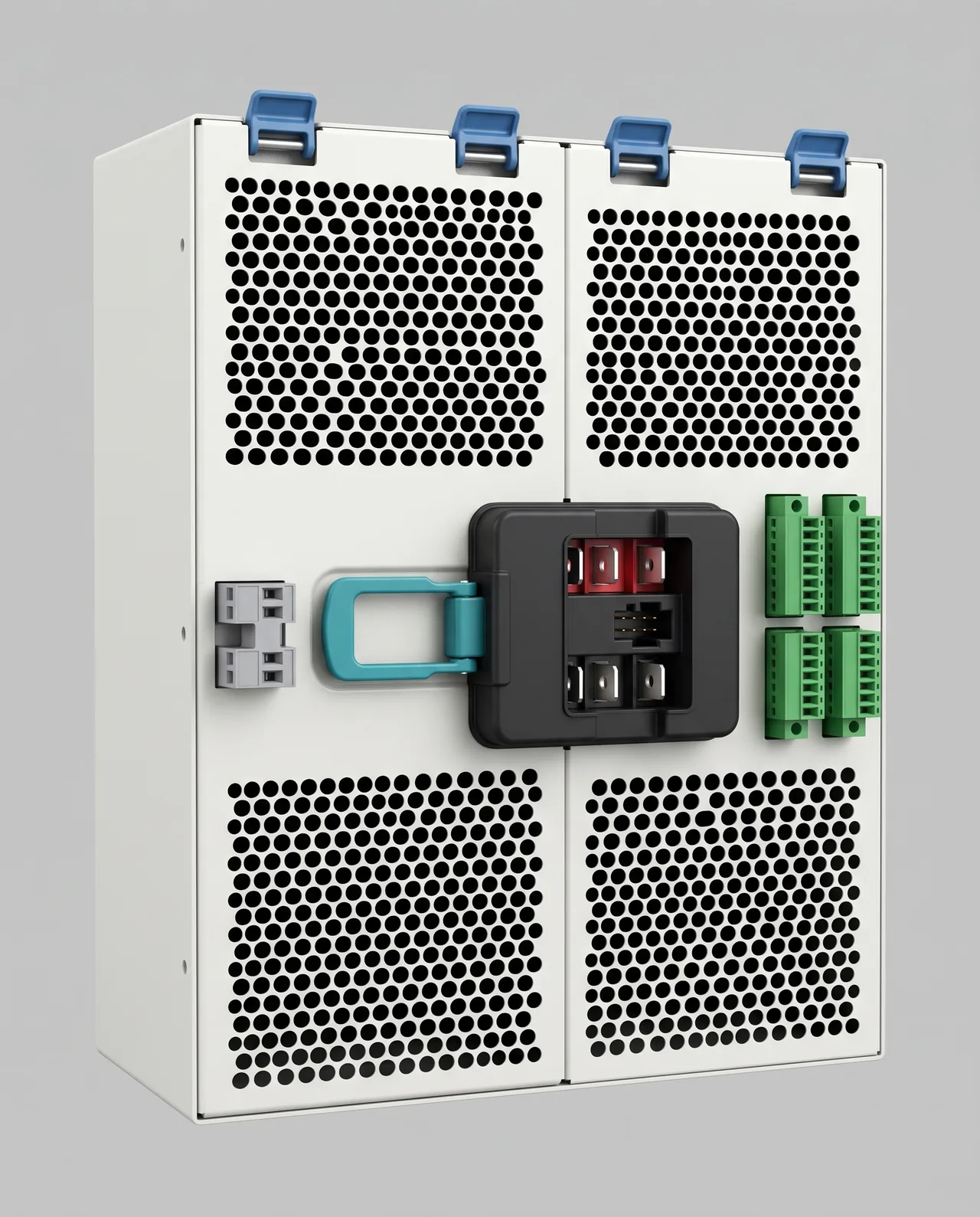

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
21 of 60 publishedChemistry and form
- Chemistry family
- Lithium ion
- Chemistry detail
- Lfp
- Unit form
- Module
Discharge performance
- Maximum discharge power
- 4.8 kW
- Maximum discharge power basis
- Not stated
Voltage and charging
- Nominal voltage
- 48 V
- Maximum charge current
- 100 A
Life and warranty
- Cycle life
- 3,500 cycles
- Cycle life depth of discharge
- 85 %
- Cycle life end-of-life capacity
- 70 %
Thermal
- Operating temperature, minimum
- -20 °C
- Operating temperature, maximum
- 45 °C
- Charge temperature, minimum
- 0 °C
- Charge temperature, maximum
- 45 °C
Physical
- Length
- 396 mm
- Width
- 442 mm
- Height
- 130 mm
- Weight
- 43 kg
Management
- Battery management system
- Integrated
- Monitoring protocols
- Canbus, Rs485, Dry contacts
Compliance
- Transport classification
- Un 38 3
More UPS Batteries
6

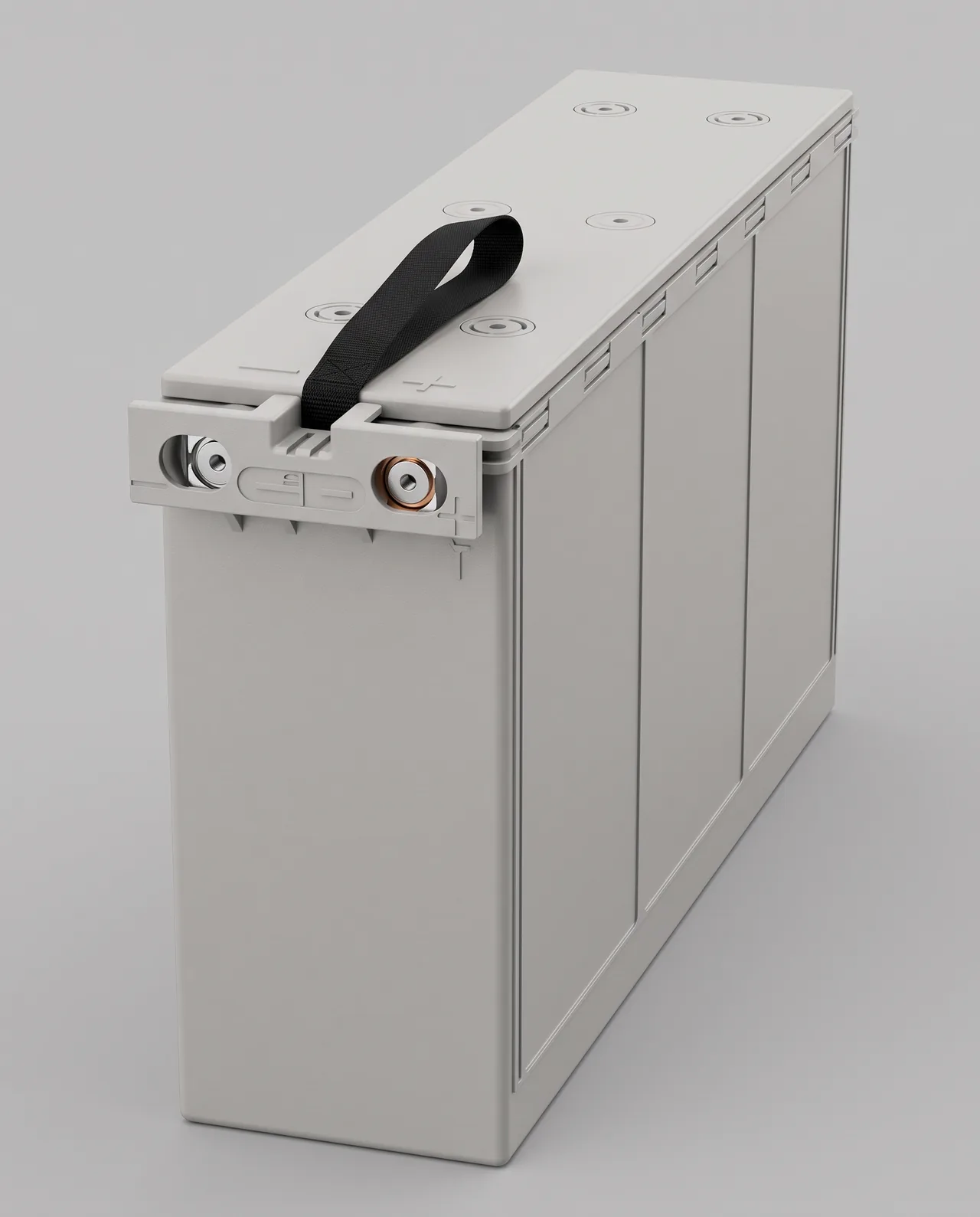

C&D TechnologiesC&D Dynasty True Front Access UPS12-1000MRXF

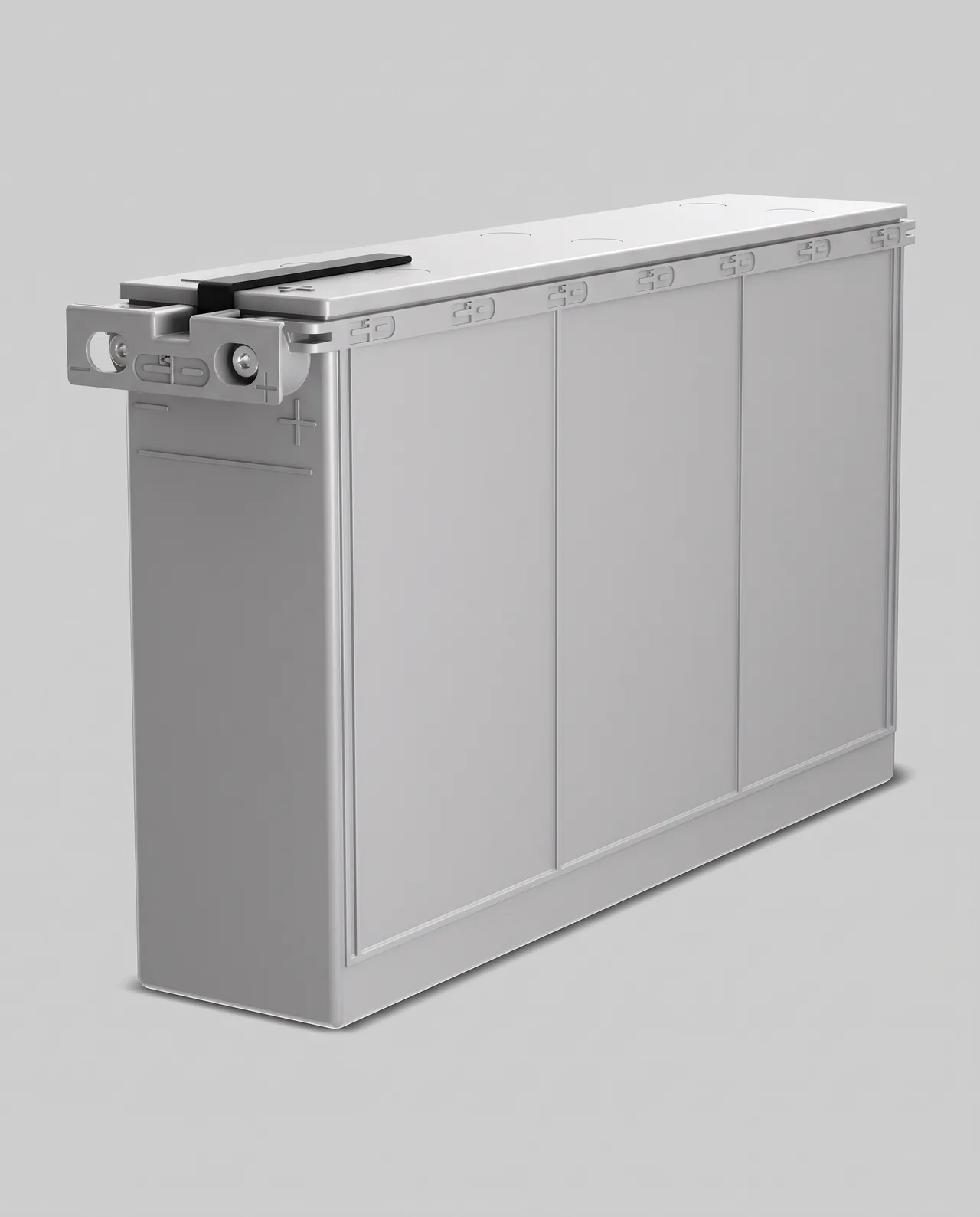

C&D TechnologiesC&D Dynasty True Front Access UPS12-830MRXF

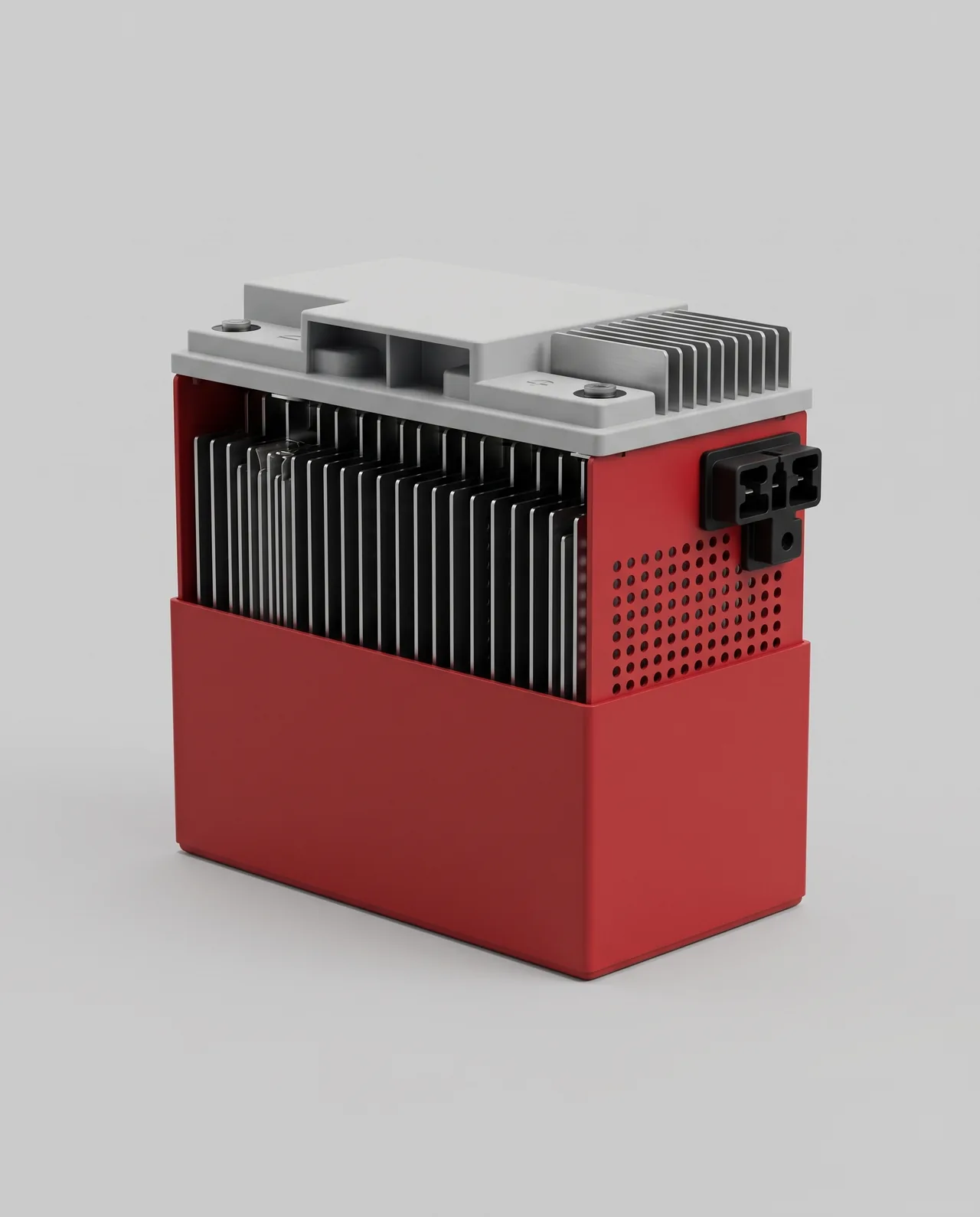

EnerSysEnerSys DataSafe HX 12HX205-FR

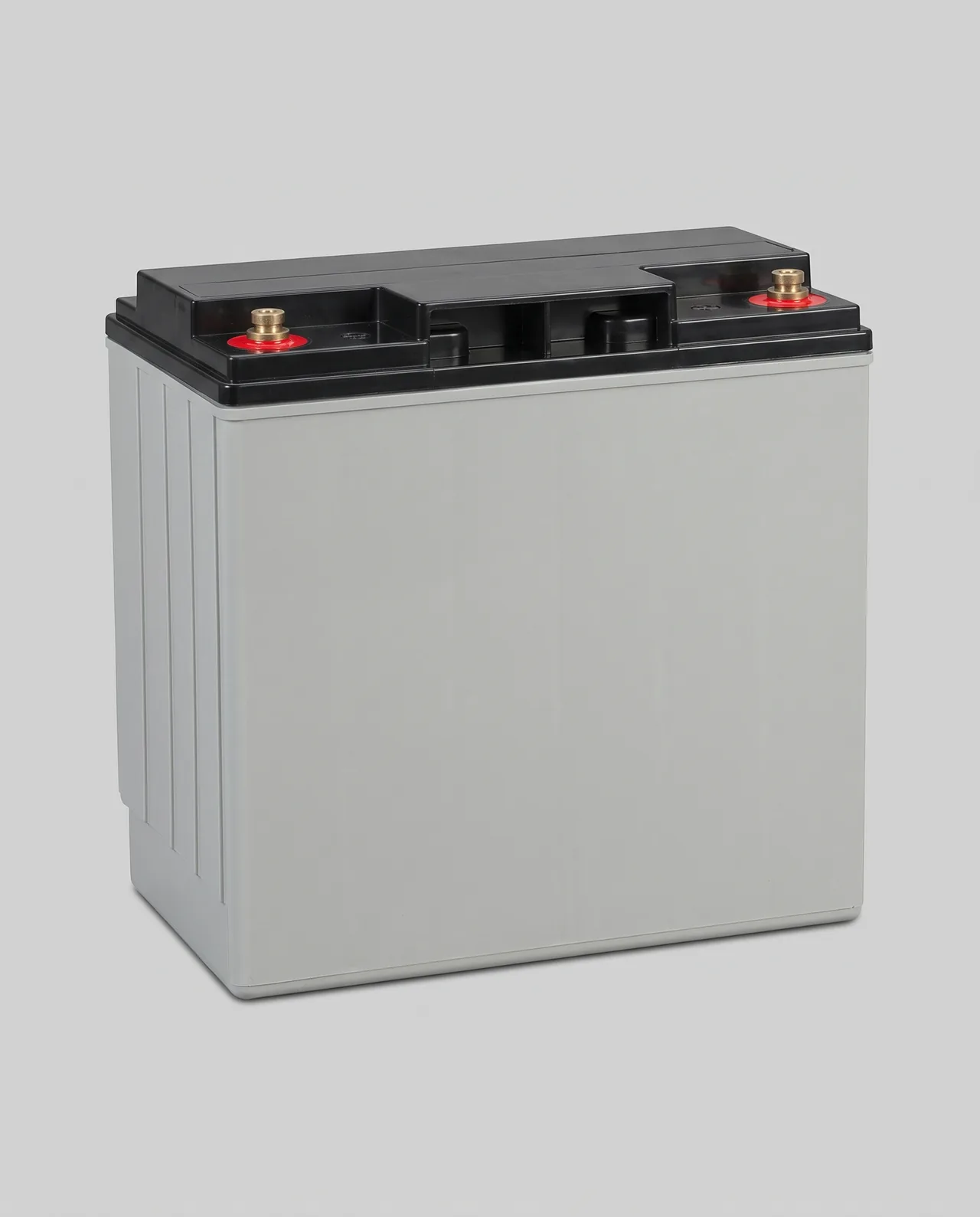

EnerSysEnerSys DataSafe HX 12HX540-FR

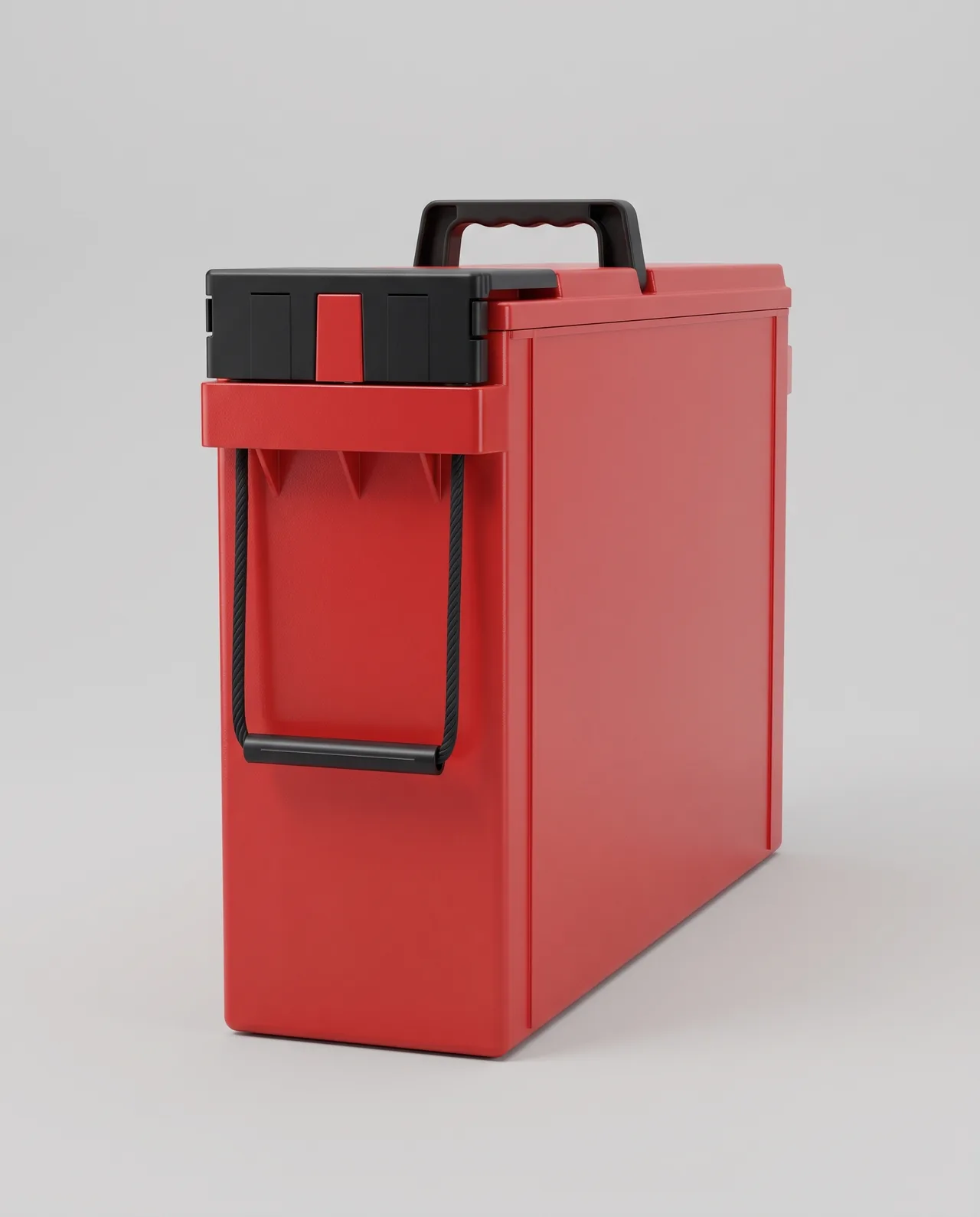

EnerSysEnerSys PowerSafe SBS XL 170F-FT

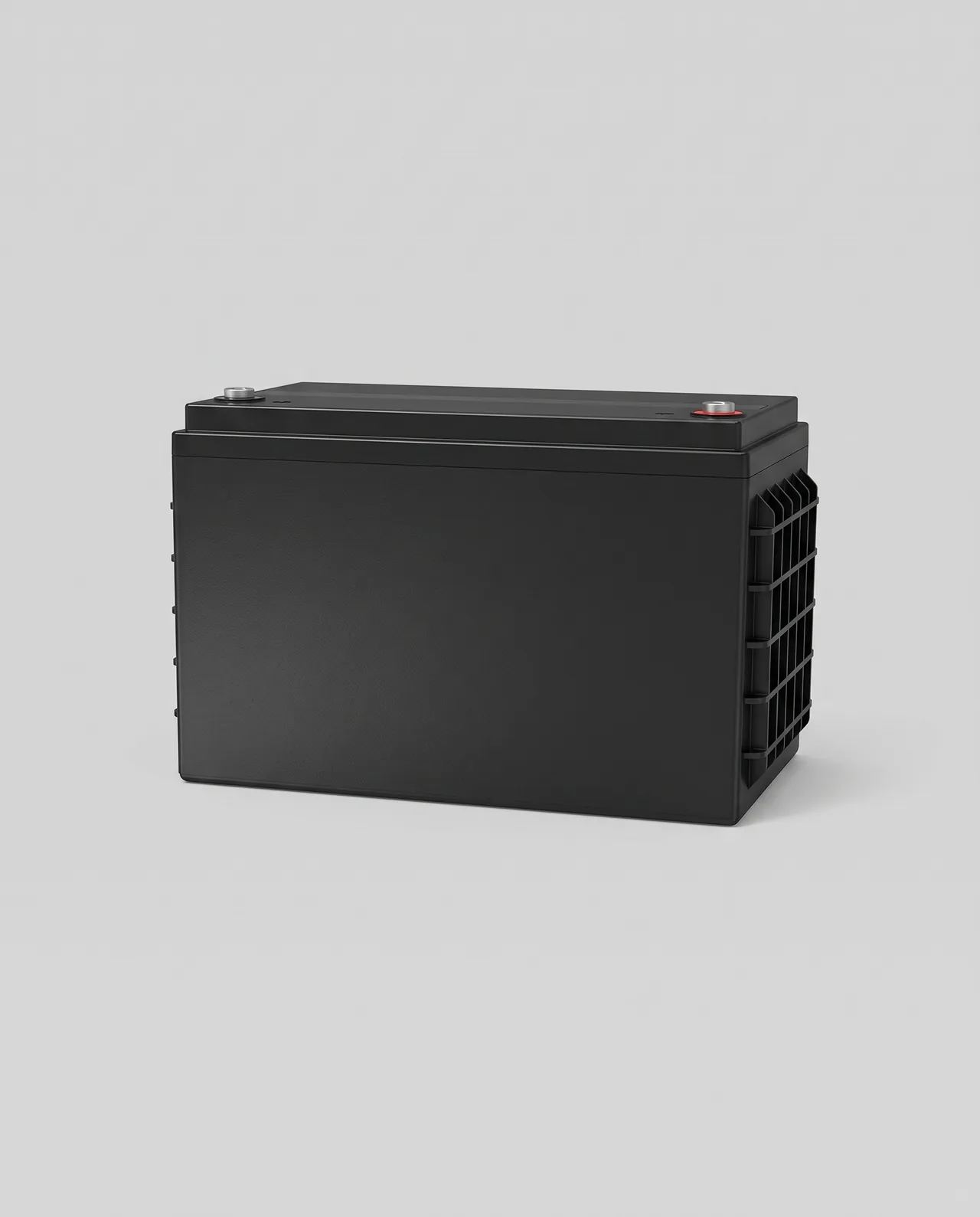

GerchampGerchamp 8XNFG90 Nickel-Zinc BatteryRenders, not photographs. Product images are generated to DC Atlas art direction from each manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is not reproduced. Where a manufacturer publishes no image of an individual model, the render follows another unit in the same range.
