Dell PowerEdge XE9680L (8x NVIDIA B200)

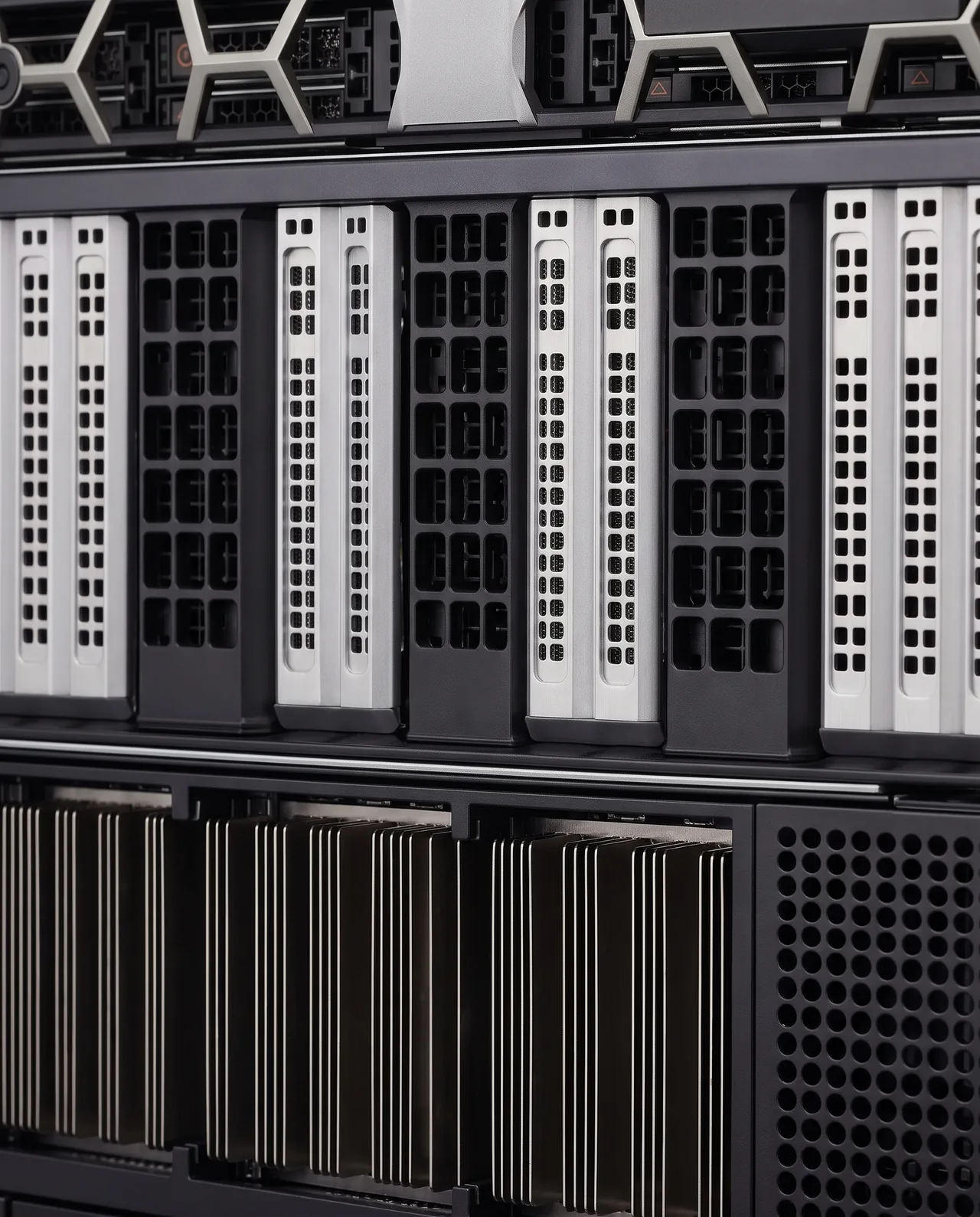

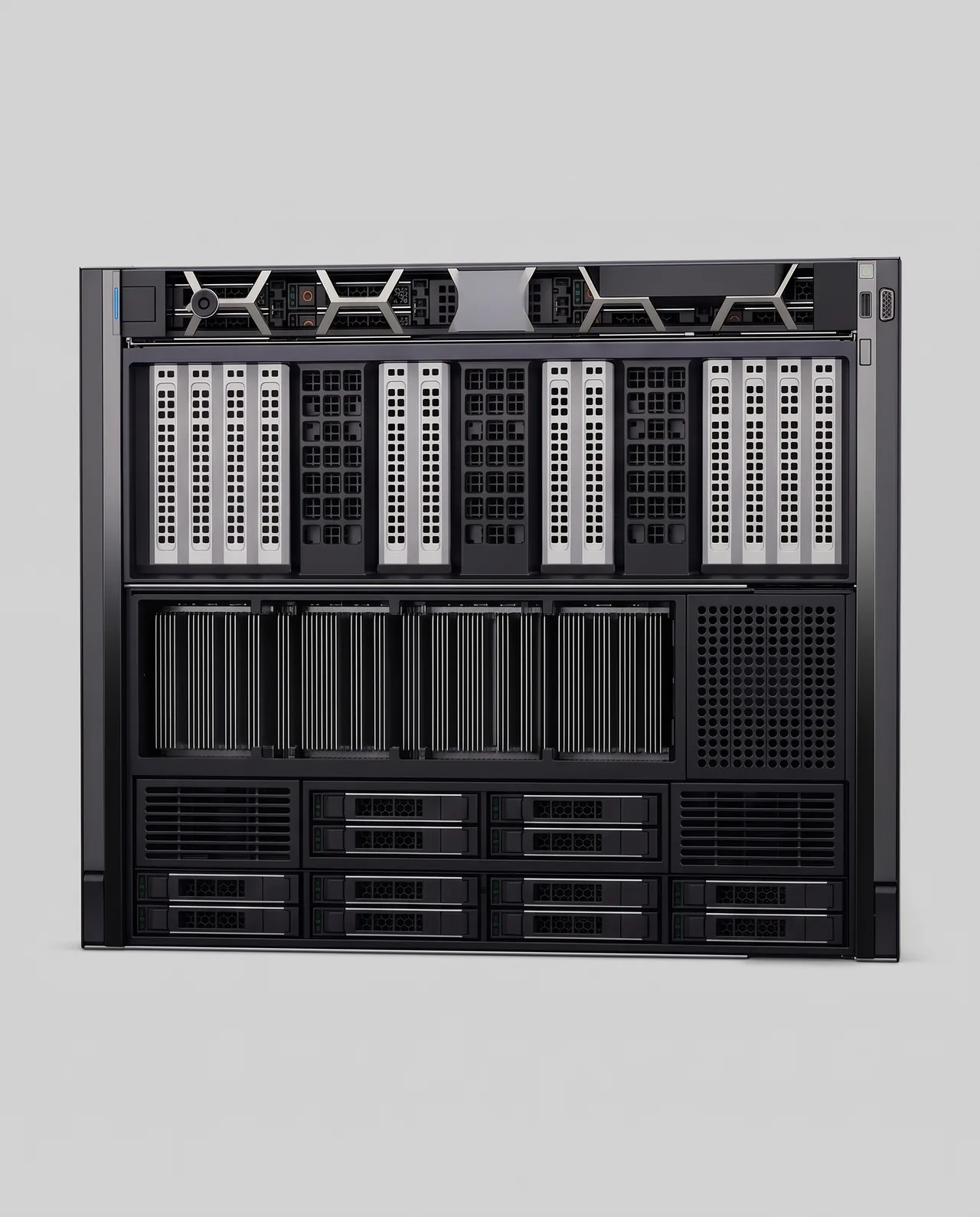

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
31 of 60 publishedSystem configuration
- What this row describes
- Fixed gpu configuration
- GPU architecture
- Nvidia hgx baseboard
- Form factor
- Eia rack mount
- Height in rack units
- 4
GPU
- GPU vendor
- Nvidia
- GPU model
- B200
- GPU count
- 8
- GPU module form factor
- Sxm6
- Memory per GPU
- 180 GB
- Power per GPU
- 1,000 W
- Per-GPU power basis
- Tdp or tgp design point
GPU interconnect
- GPU-to-GPU interconnect
- Nvlink topology not stated
CPU and memory
- CPU vendor
- Intel
- CPU families supported
- Intel xeon scalable 5th gen
- CPU sockets
- 2
- Max cores per CPU
- 64
- DIMM slots
- 32
- Memory type
- Ddr5 rdimm
- Max memory speed
- 5,600 MT/s
Power
- PSU input voltage
- 200-240 VAC or 240 VDC
Cooling
- Cooling method
- Direct liquid cpu gpu switch
- Required rack
- IR5000 required
- System fans
- 12
Physical
- Dimensions basis
- With bezel
- Height
- 174.3 mm
- Depth
- 1,037.57 mm
- Weight
- 95.6 kg
- Weight basis
- Unspecified
Expansion
- PCIe x16 slots (non-GPU)
- 12
- PCIe generation
- Gen5
- Max drive bays
- 8
