Lenovo ThinkSystem SR680a V3 (8x NVIDIA H100)

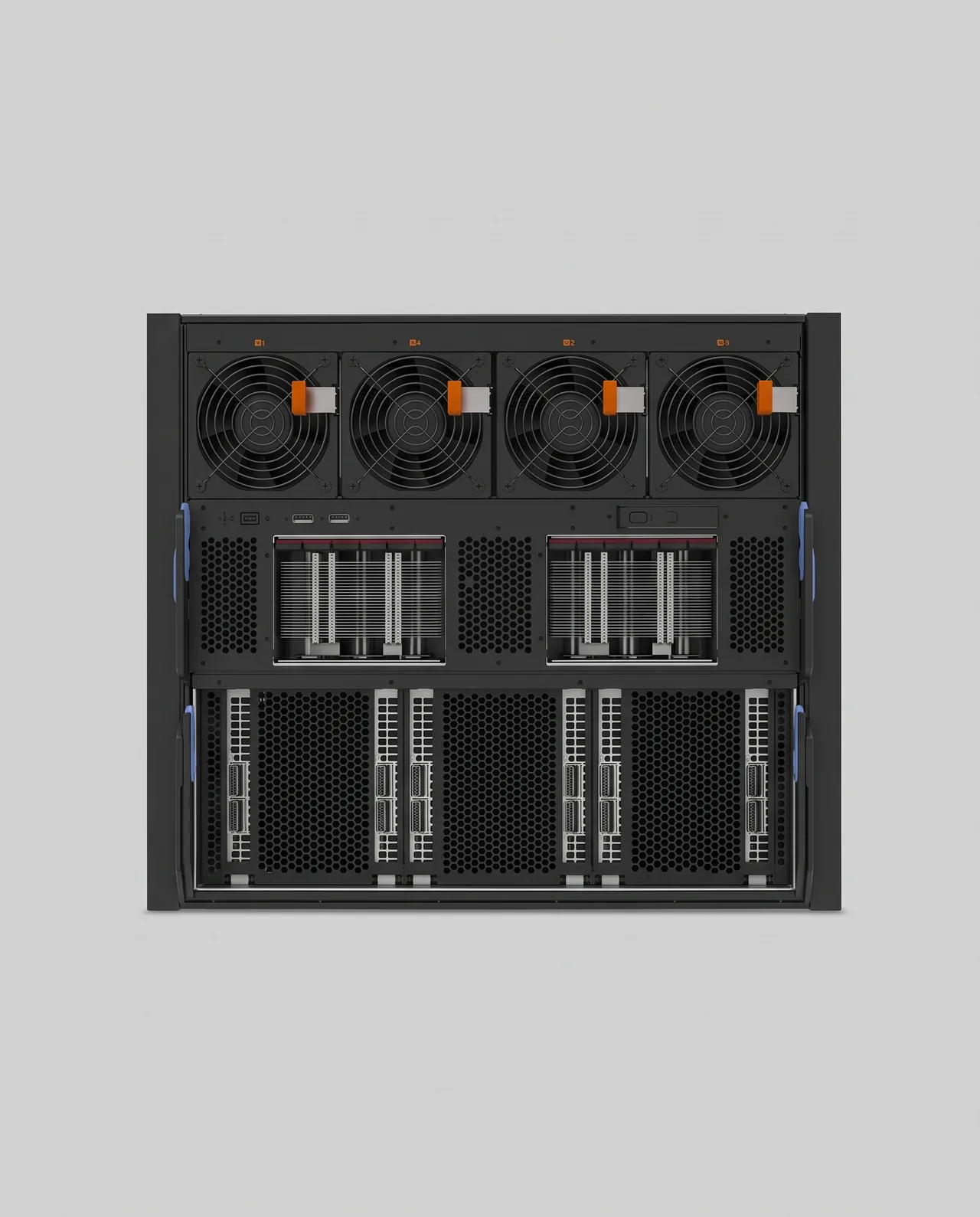

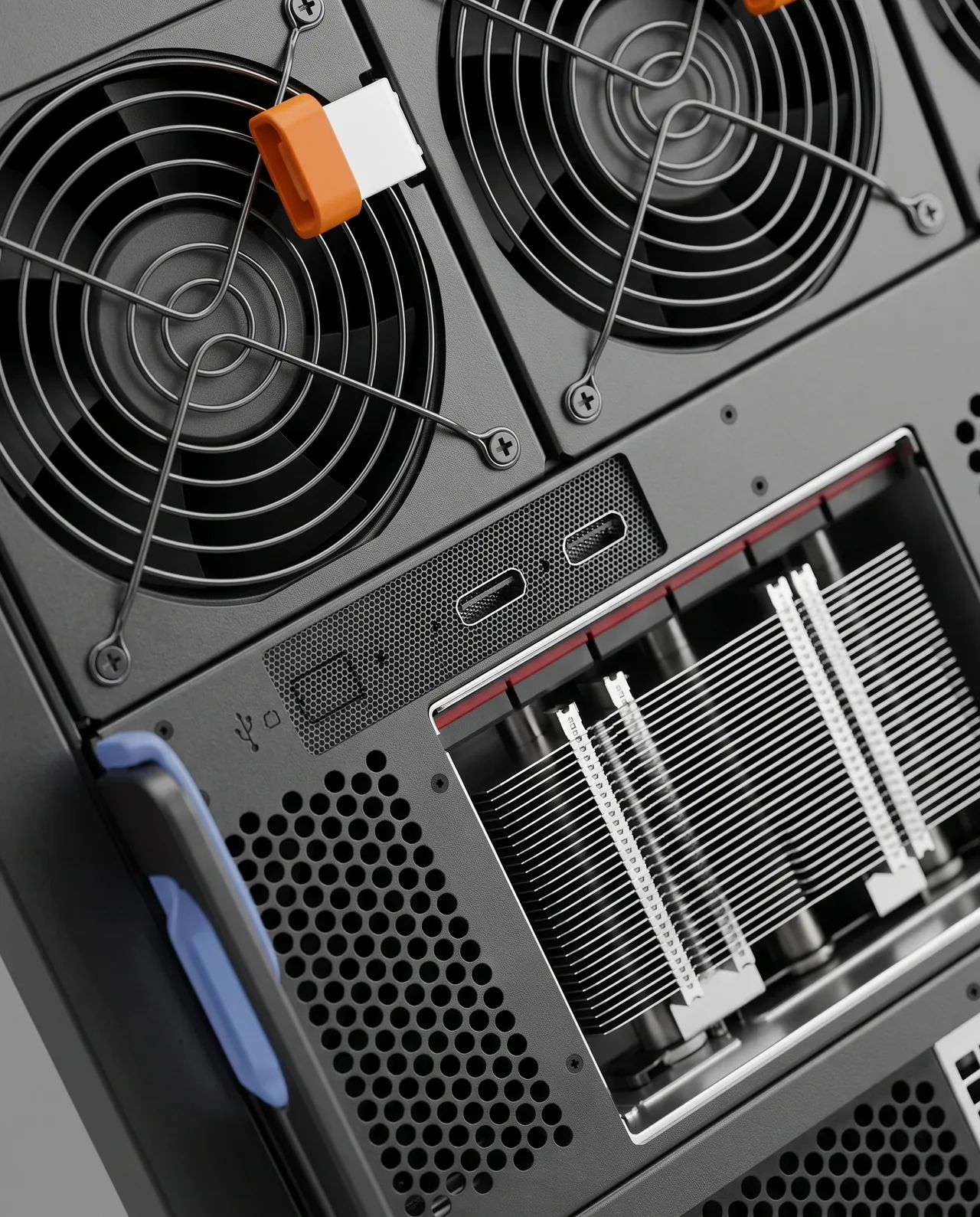

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
49 of 60 publishedSystem configuration
- What this row describes
- Fixed gpu configuration
- GPU architecture
- Nvidia hgx baseboard
- Form factor
- Eia rack mount
- Height in rack units
- 8
GPU
- GPU vendor
- Nvidia
- GPU model
- H100
- GPU count
- 8
- GPU module form factor
- Sxm5
- Memory per GPU
- 80 GB
- GPU memory type
- Hbm3
- Power per GPU
- 700 W
- Per-GPU power basis
- Tdp or tgp design point
GPU interconnect
- GPU-to-GPU interconnect
- Nvlink topology not stated
- GPU interconnect bandwidth
- 900 GB/s
- Bandwidth basis
- Per gpu
CPU and memory
- CPU vendor
- Intel
- CPU families supported
- Intel xeon scalable 5th gen
- CPU sockets
- 2
- Max cores per CPU
- 64
- Max CPU TDP
- 350 W
- DIMM slots
- 32
- Max system memory
- 4,096 GB
- DIMMs per channel for max memory
- 2
- Memory type
- Ddr5 rdimm
- Max memory speed
- 5,600 MT/s
Power
- Power supplies installed
- 8
- PSU rating (each)
- 2,600 W
- PSU redundancy
- Up to N+N
- PSU efficiency rating
- 80plus titanium
- PSU input voltage
- 200 to 240 (nominal) Vac, 50 Hz or 60 Hz
Cooling
- Cooling method
- Air
- Airflow
- 2,482.3 m³/h
- Airflow basis
- Max fan speed
- System fans
- 15
Environment
- Operating temperature, min
- 10 °C
- Operating temperature, max
- 35 °C
- ASHRAE classes
- A2
- Max altitude
- 3,050 m
- Operating humidity, min
- 8 %
- Operating humidity, max
- 80 %
Physical
- Dimensions basis
- Chassis body
- Height
- 351 mm
- Width
- 447 mm
- Depth
- 924 mm
- Weight
- 102.9 kg
- Weight basis
- Max configuration
Expansion
- PCIe x16 slots (non-GPU)
- 10
- PCIe generation
- Gen5
- Max drive bays
- 16
