GIGABYTE G593-SD1-AAX3 (8x NVIDIA H200, air)

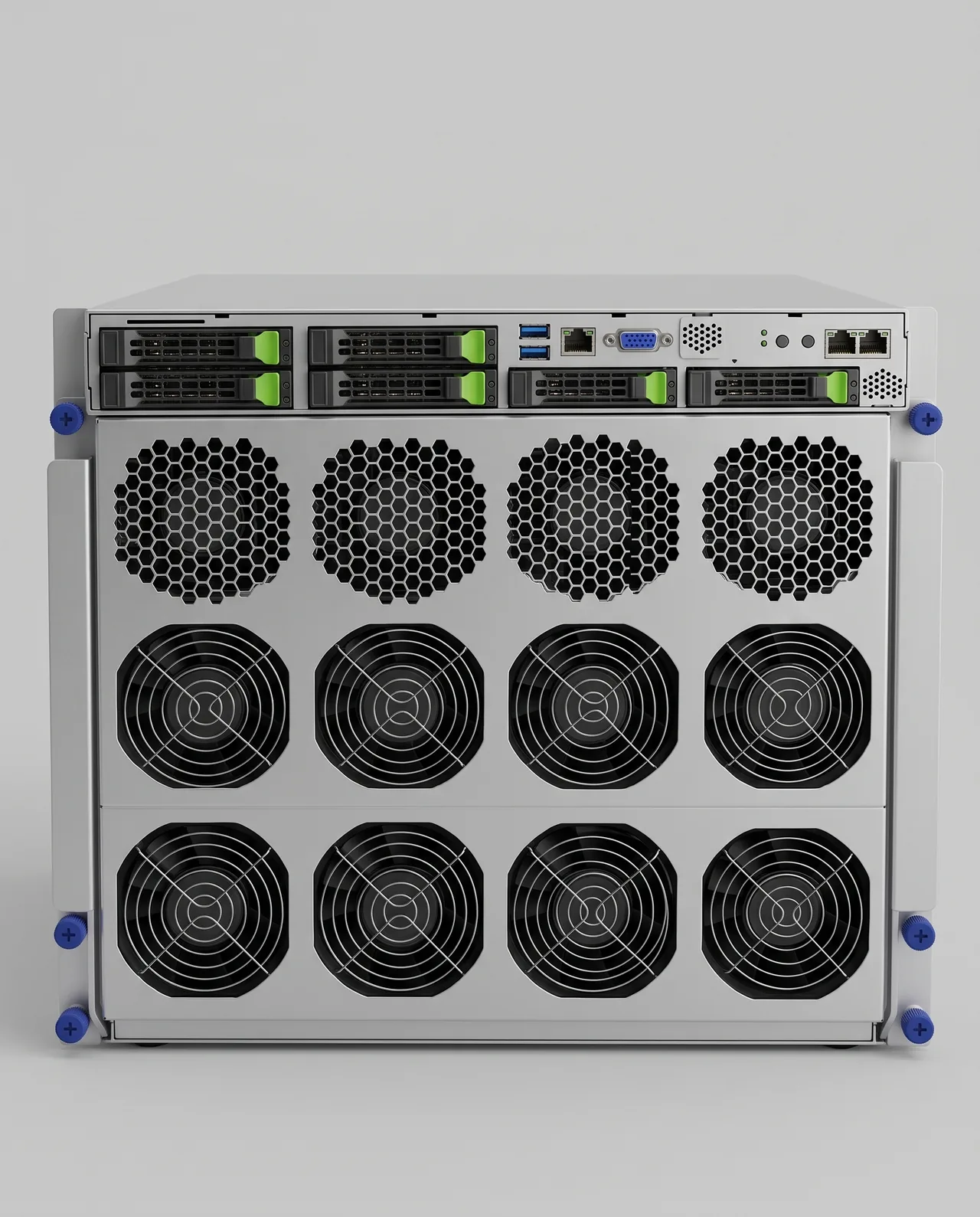

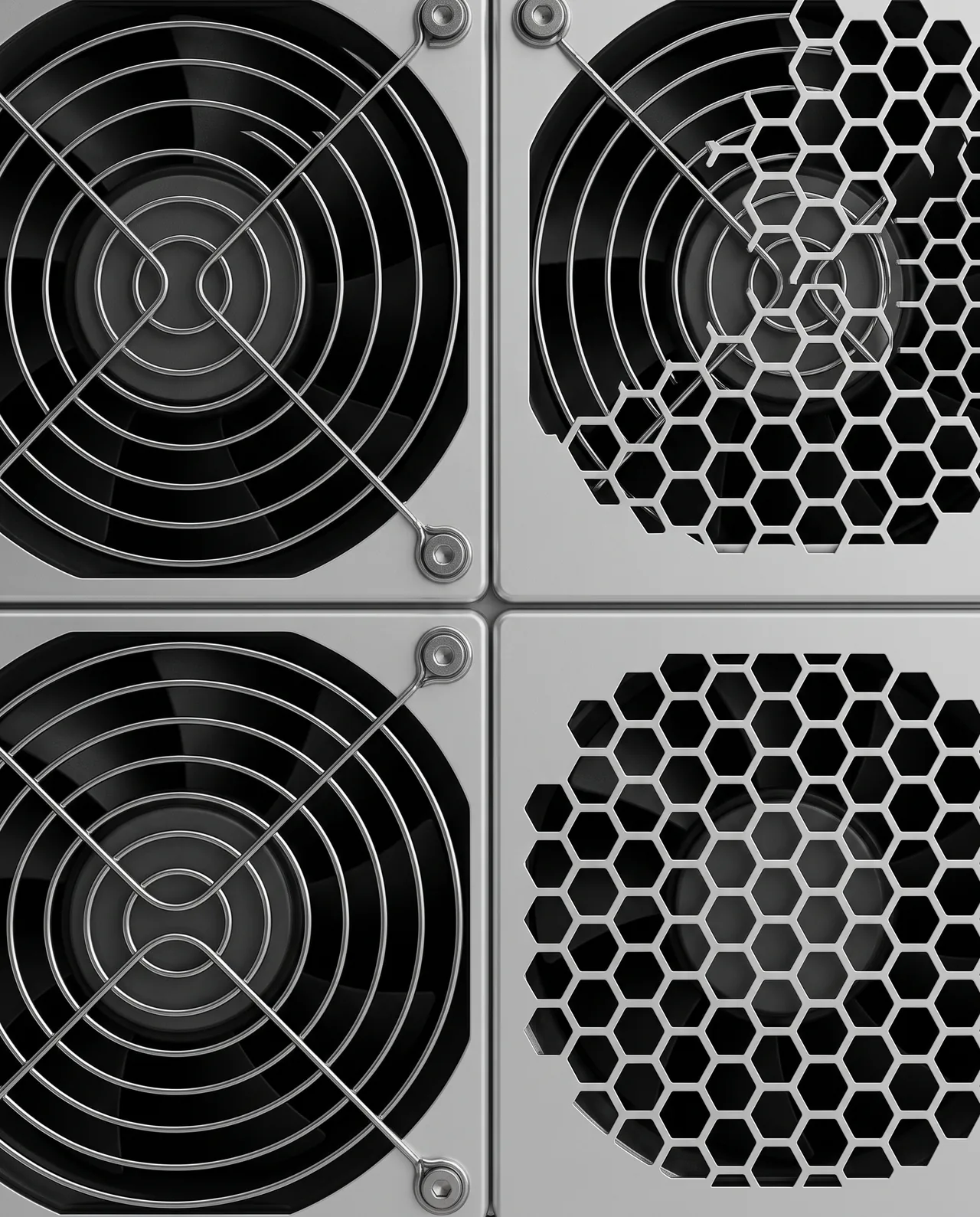

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
37 of 60 publishedSystem configuration
- What this row describes
- Fixed gpu configuration
- GPU architecture
- Nvidia hgx baseboard
- Form factor
- Eia rack mount
- Height in rack units
- 5
GPU
- GPU vendor
- Nvidia
- GPU model
- H200
- GPU count
- 8
GPU interconnect
- GPU-to-GPU interconnect
- Nvlink via nvswitch
- GPU interconnect bandwidth
- 900 GB/s
- Bandwidth basis
- Per gpu
CPU and memory
- CPU vendor
- Intel
- CPU families supported
- Intel xeon scalable 4th gen, Intel xeon scalable 5th gen, Intel xeon max
- CPU sockets
- 2
- Max CPU TDP
- 350 W
- DIMM slots
- 32
- Memory type
- Ddr5 rdimm
- Max memory speed
- 5,600 MT/s
Power
- Power supplies installed
- 6
- PSU rating (each)
- 3,000 W
- PSU redundancy
- 4+2
- PSU efficiency rating
- 80plus titanium
- PSU input voltage
- 100-120V~ / 200-240V~ 16A, 50/60Hz; 240Vdc (China only)
Cooling
- Cooling method
- Air
- System fans
- 29
Environment
- Operating temperature, min
- 10 °C
- Operating temperature, max
- 35 °C
- Operating humidity, min
- 8 %
- Operating humidity, max
- 80 %
Physical
- Dimensions basis
- Unspecified
- Height
- 219.7 mm
- Width
- 447 mm
- Depth
- 945 mm
- Weight
- 88 kg
- Weight basis
- Net system
Expansion
- PCIe x16 slots (non-GPU)
- 12
- PCIe generation
- Gen5
- Max drive bays
- 8
