NVIDIA DGX B200

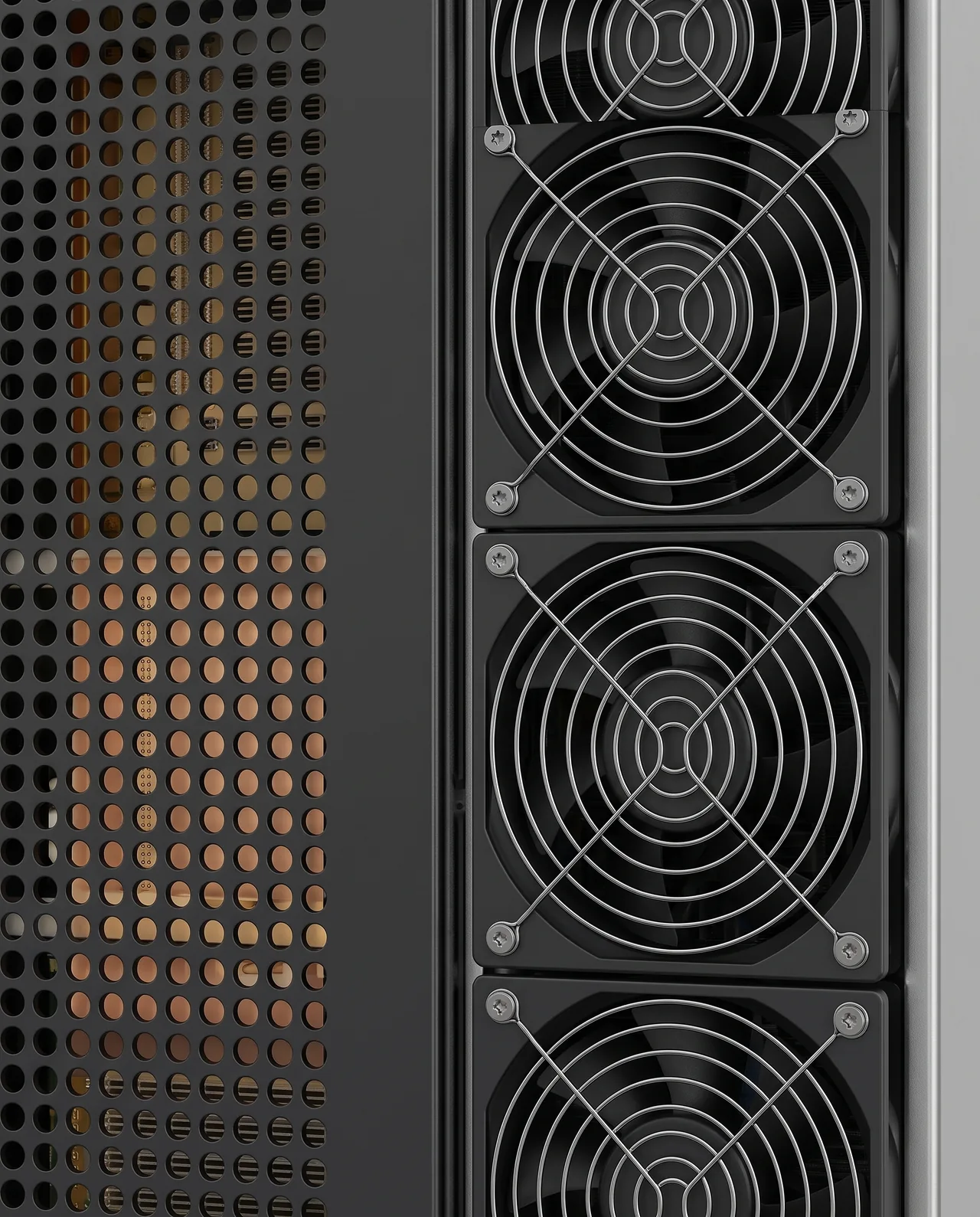

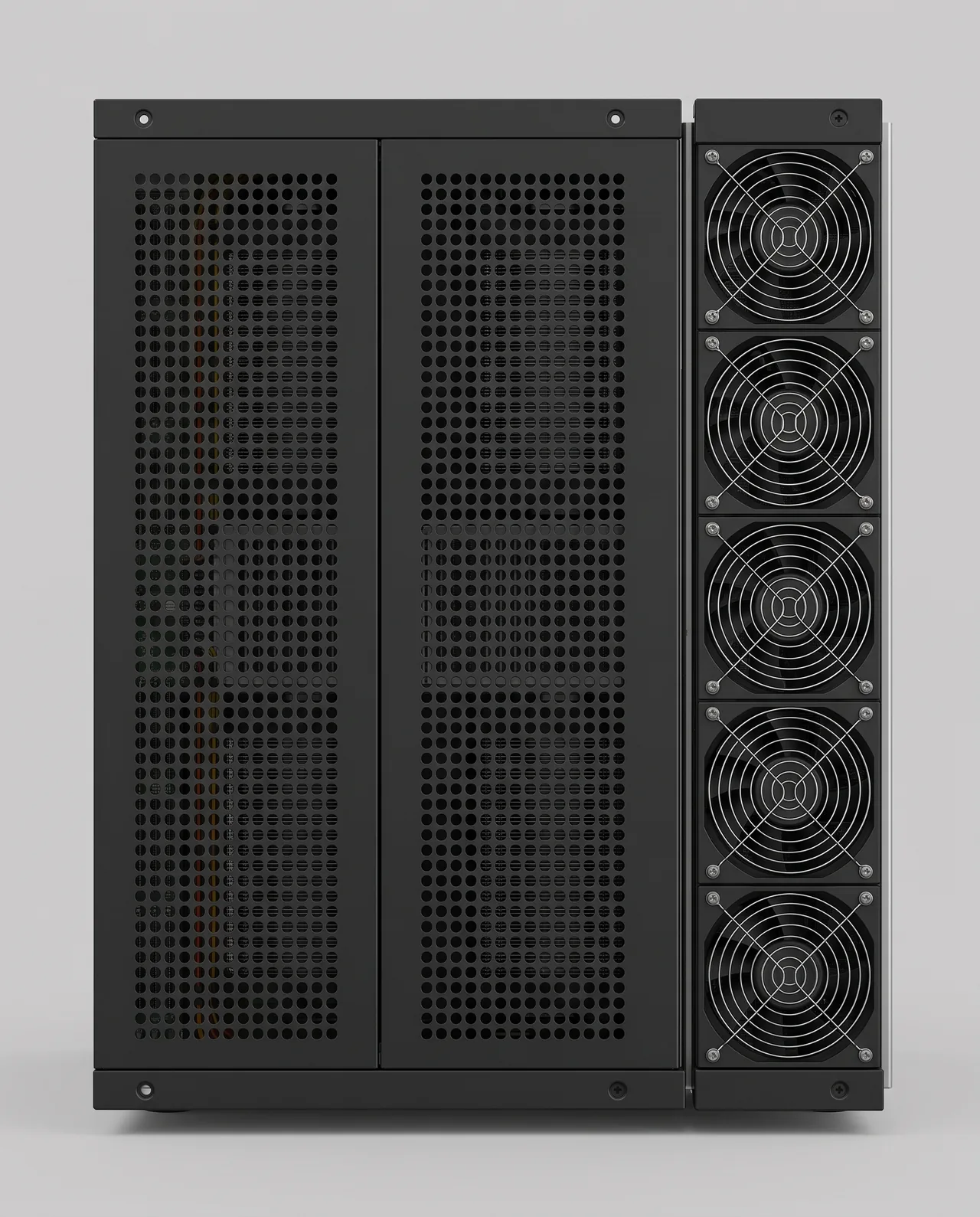

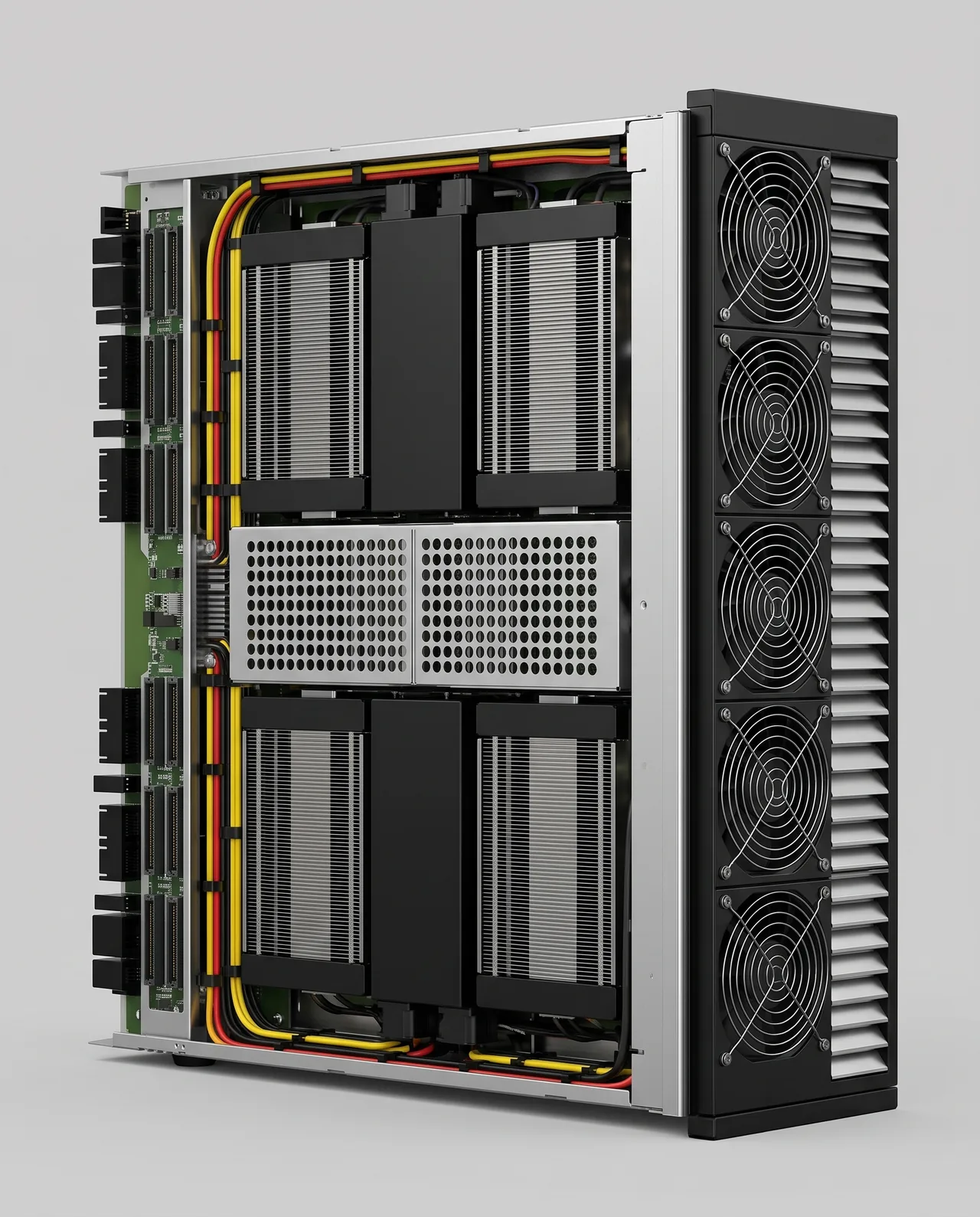

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
42 of 60 publishedSystem configuration
- What this row describes
- Fixed gpu configuration
- GPU architecture
- Nvidia dgx reference system
- Form factor
- Eia rack mount
- Height in rack units
- 10
GPU
- GPU vendor
- Nvidia
- GPU model
- B200
- GPU count
- 8
- Total GPU memory
- 1,440 GB
- Power per GPU
- 1,000 W
- Per-GPU power basis
- Max reported by nvidia smi
GPU interconnect
- GPU-to-GPU interconnect
- Nvlink via nvswitch
- NVSwitch chips
- 2
- NVLink generation
- Nvlink 5
- GPU interconnect bandwidth
- 14,400 GB/s
- Bandwidth basis
- Aggregate all gpus
- GPUs in one scale-up domain
- 8
CPU and memory
- CPU vendor
- Intel
- CPU families supported
- Intel xeon scalable 5th gen
- CPU model (fixed configuration)
- Intel Xeon 8570
- CPU sockets
- 2
- Max cores per CPU
- 56
- DIMM slots
- 32
Power
- Power supplies installed
- 6
- PSU rating (each)
- 3,300 W
- PSU redundancy
- 5+1
- PSU input voltage
- 200-240 volts AC
- Maximum system power
- 14,300 W
- System power basis
- Vendor published max
- Heat output
- 14.3 kW
Cooling
- Cooling method
- Air
- Airflow
- 2,633.5 m³/h
- Airflow basis
- Not stated
Environment
- Operating temperature, min
- 10 °C
- Operating temperature, max
- 35 °C
- Operating humidity, min
- 20 %
- Operating humidity, max
- 80 %
Physical
- Dimensions basis
- Unspecified
- Height
- 444 mm
- Width
- 482.3 mm
- Depth
- 897.1 mm
- Weight
- 142.4 kg
- Weight basis
- Max configuration
More GPU Servers
6

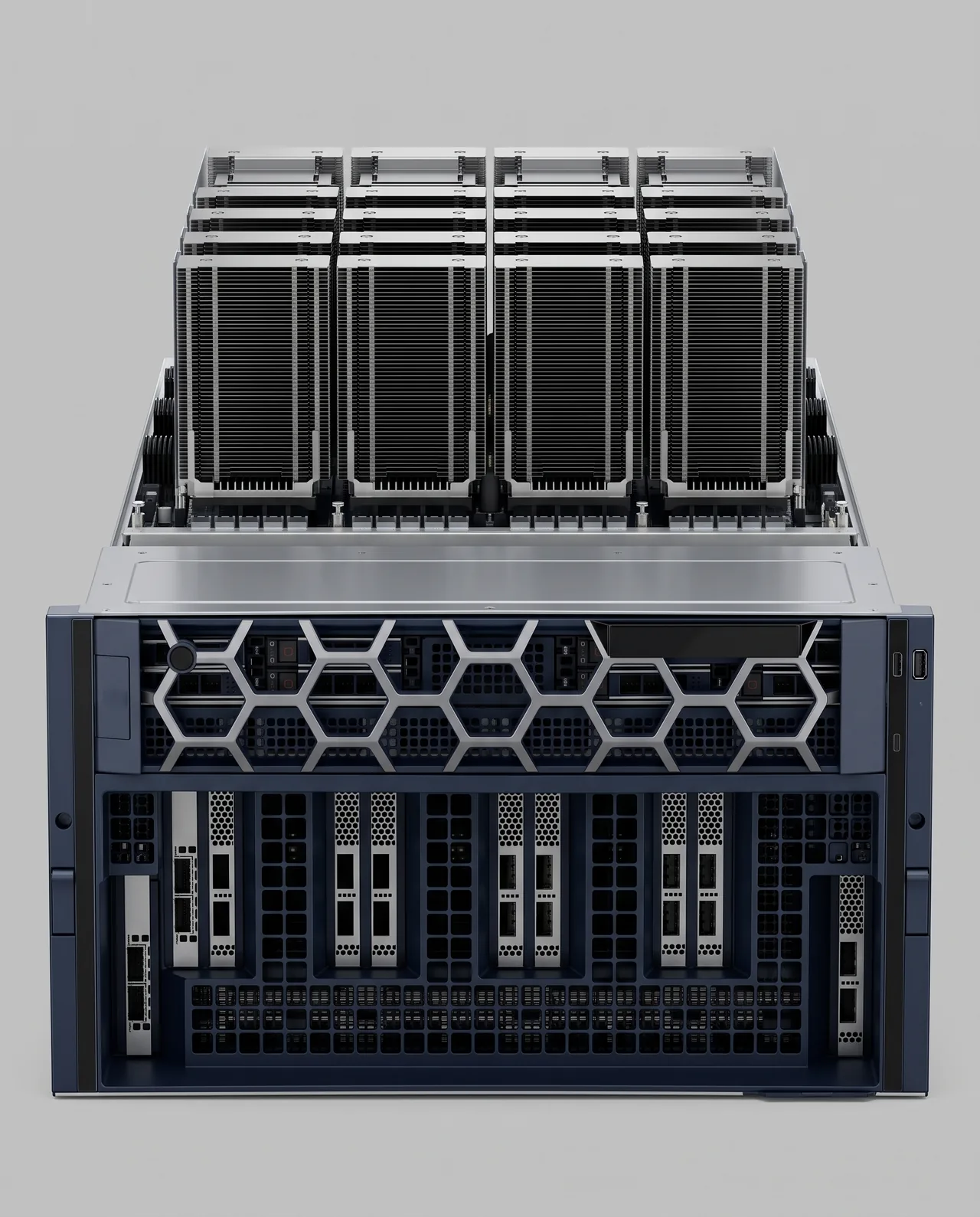

Dell TechnologiesDell PowerEdge XE9680 (8x AMD Instinct MI300X)- Form
- eia rack mount

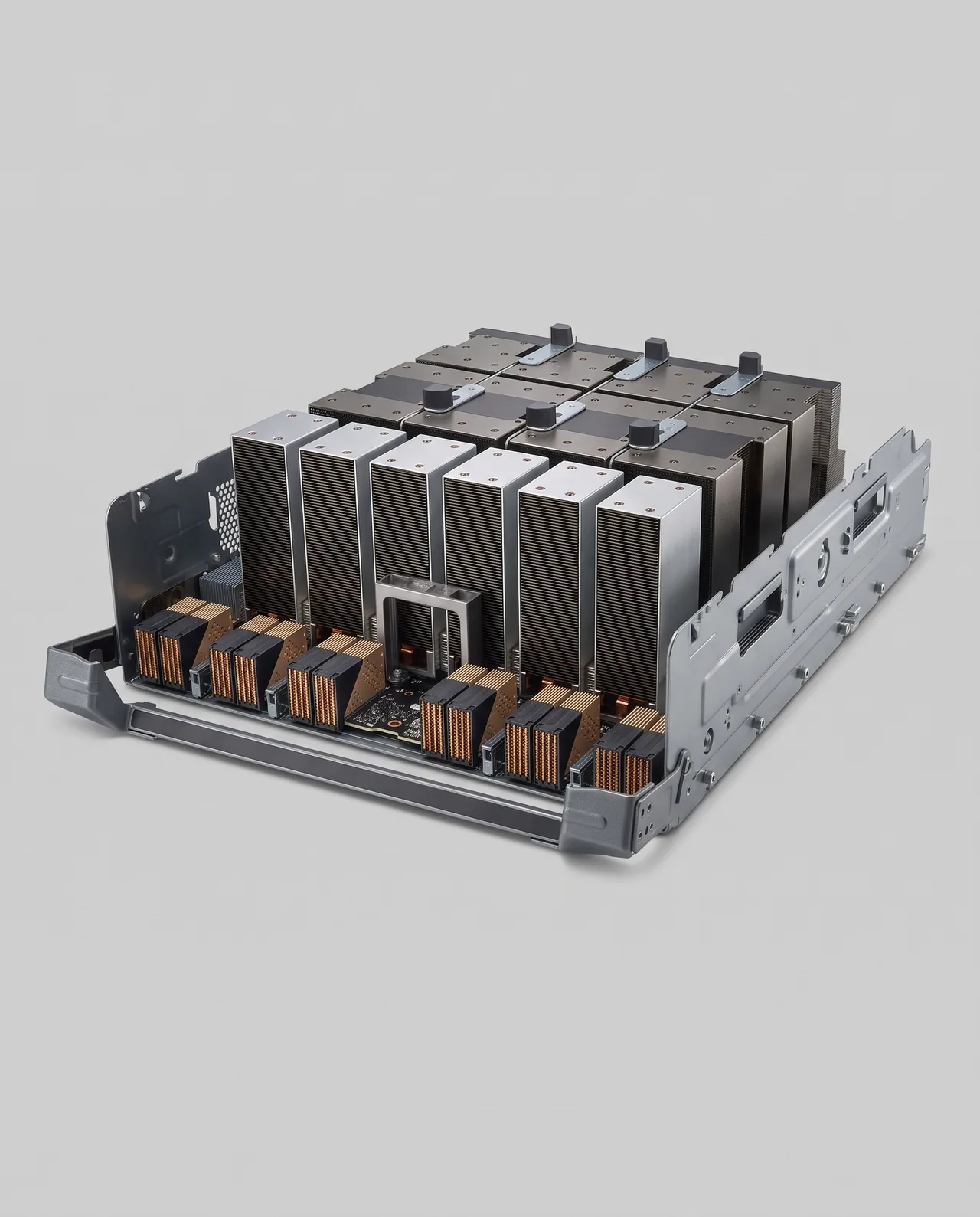

Dell TechnologiesDell PowerEdge XE9680 (8x NVIDIA H200)- Form
- eia rack mount

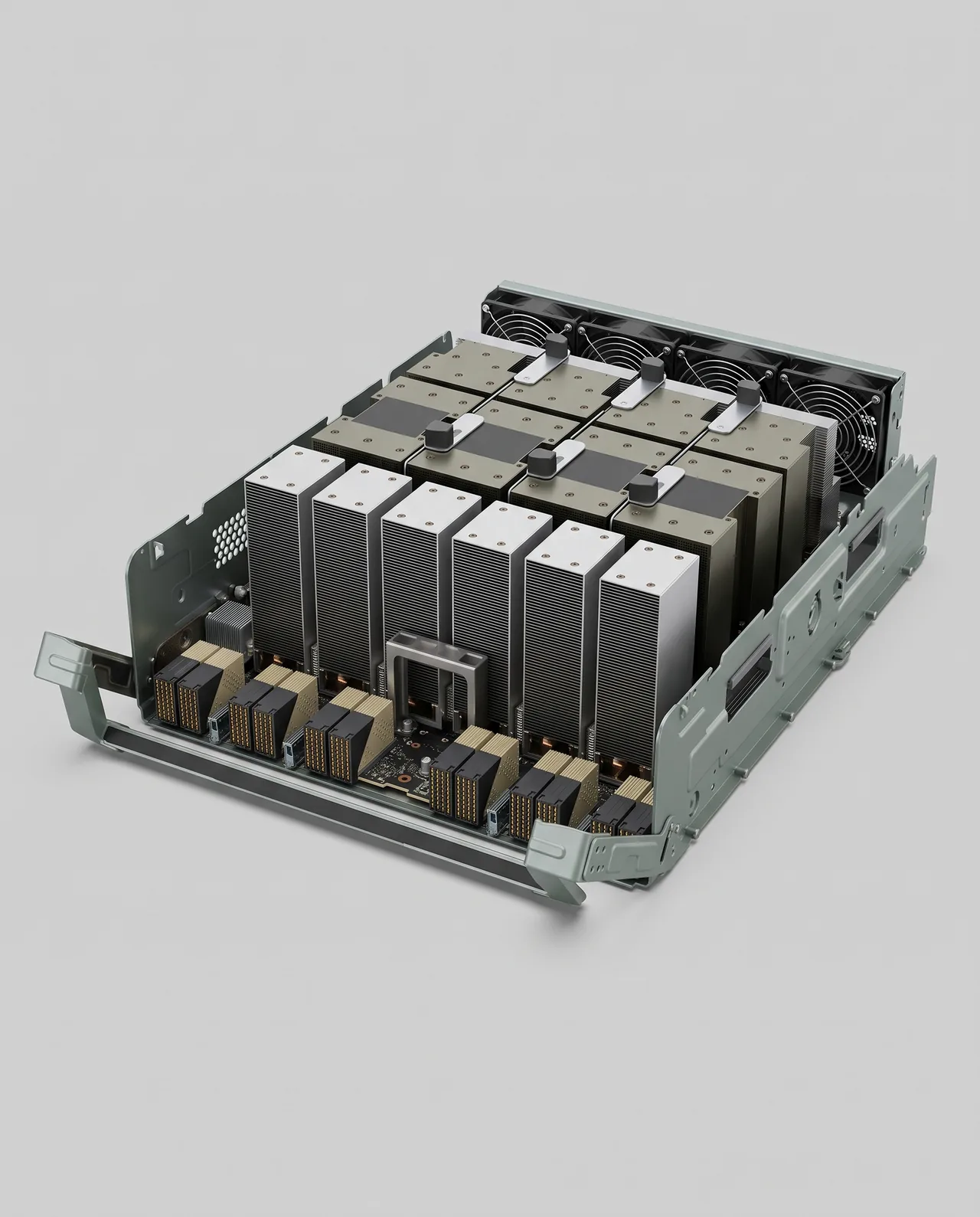

Dell TechnologiesDell PowerEdge XE9680 (8x Intel Gaudi 3)- Form
- eia rack mount

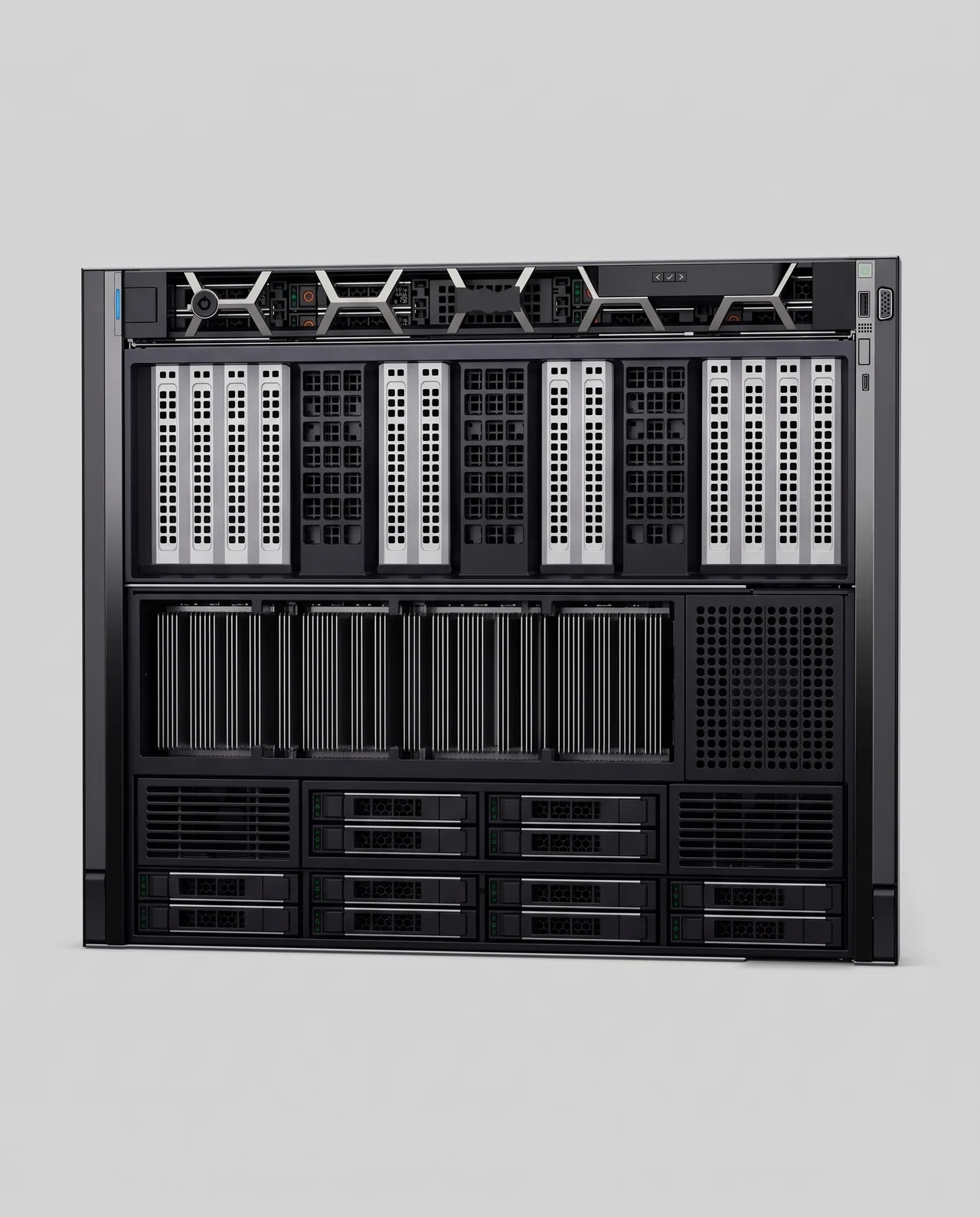

Dell TechnologiesDell PowerEdge XE9680L (8x NVIDIA B200)- Form
- eia rack mount

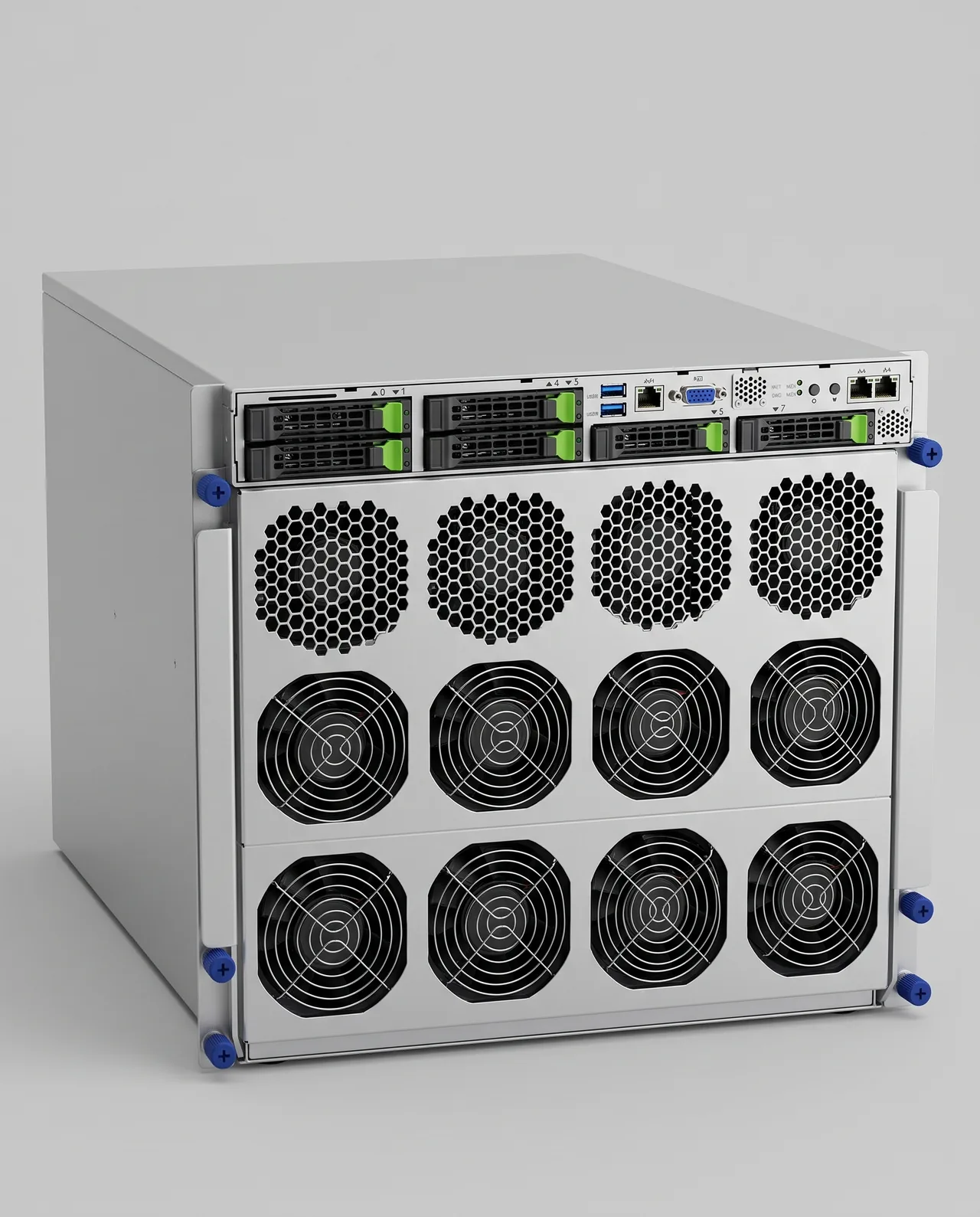

Giga ComputingGIGABYTE G593-SD1-AAX3 (8x NVIDIA H200, air)- Form
- eia rack mount

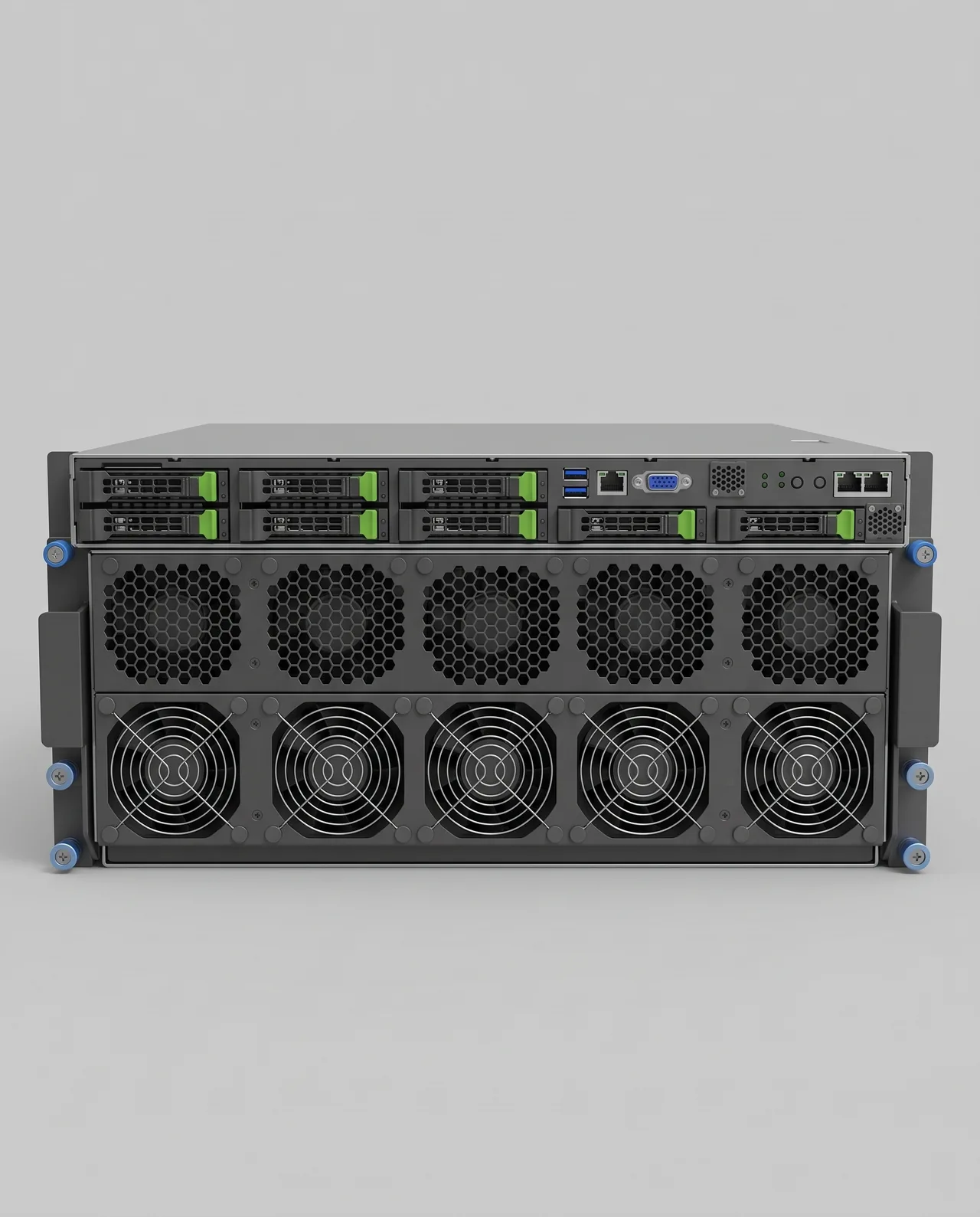

Giga ComputingGIGABYTE G593-SD1-LAX3 (8x NVIDIA H200, direct liquid cooled)- Form
