NVIDIA DGX H100

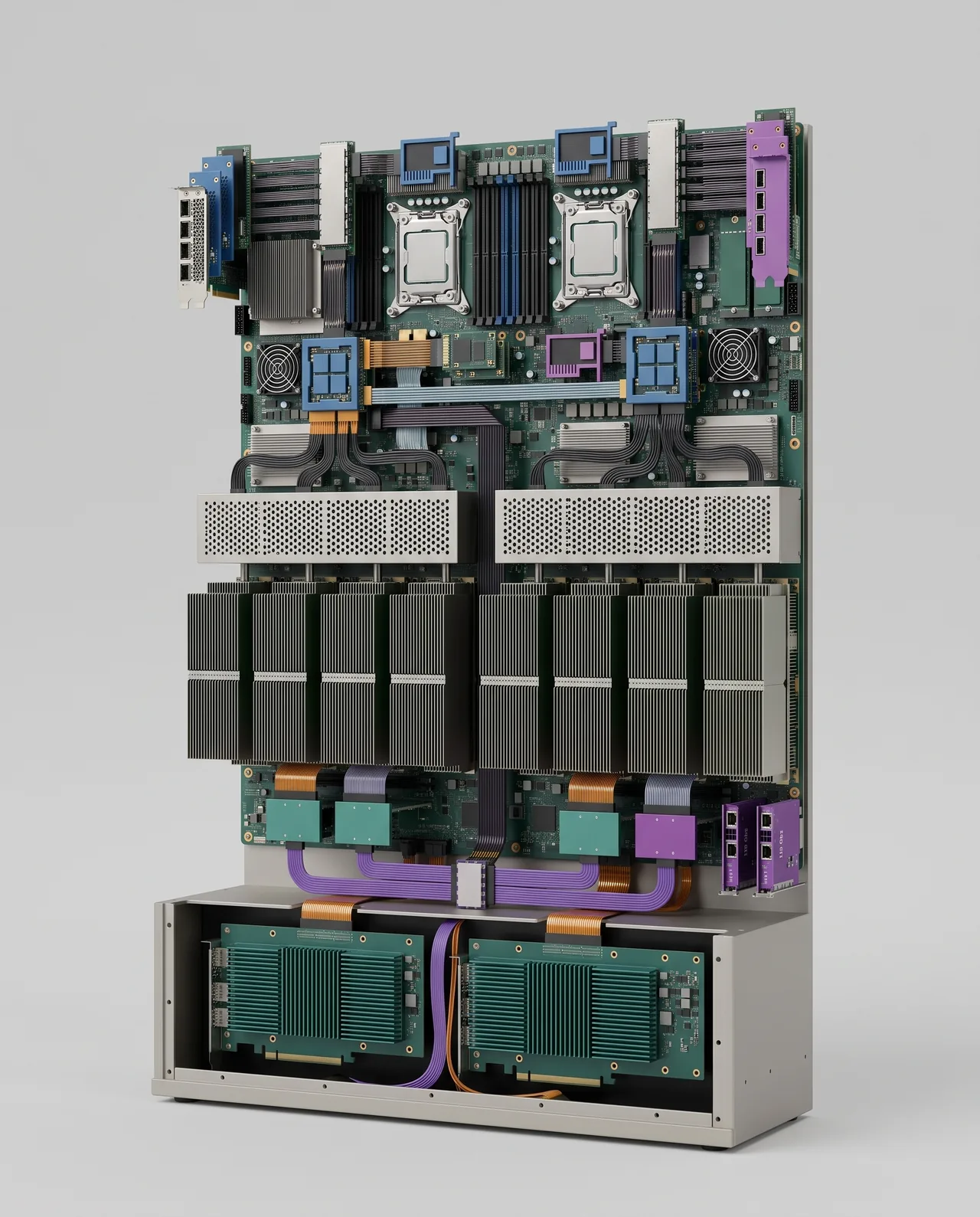

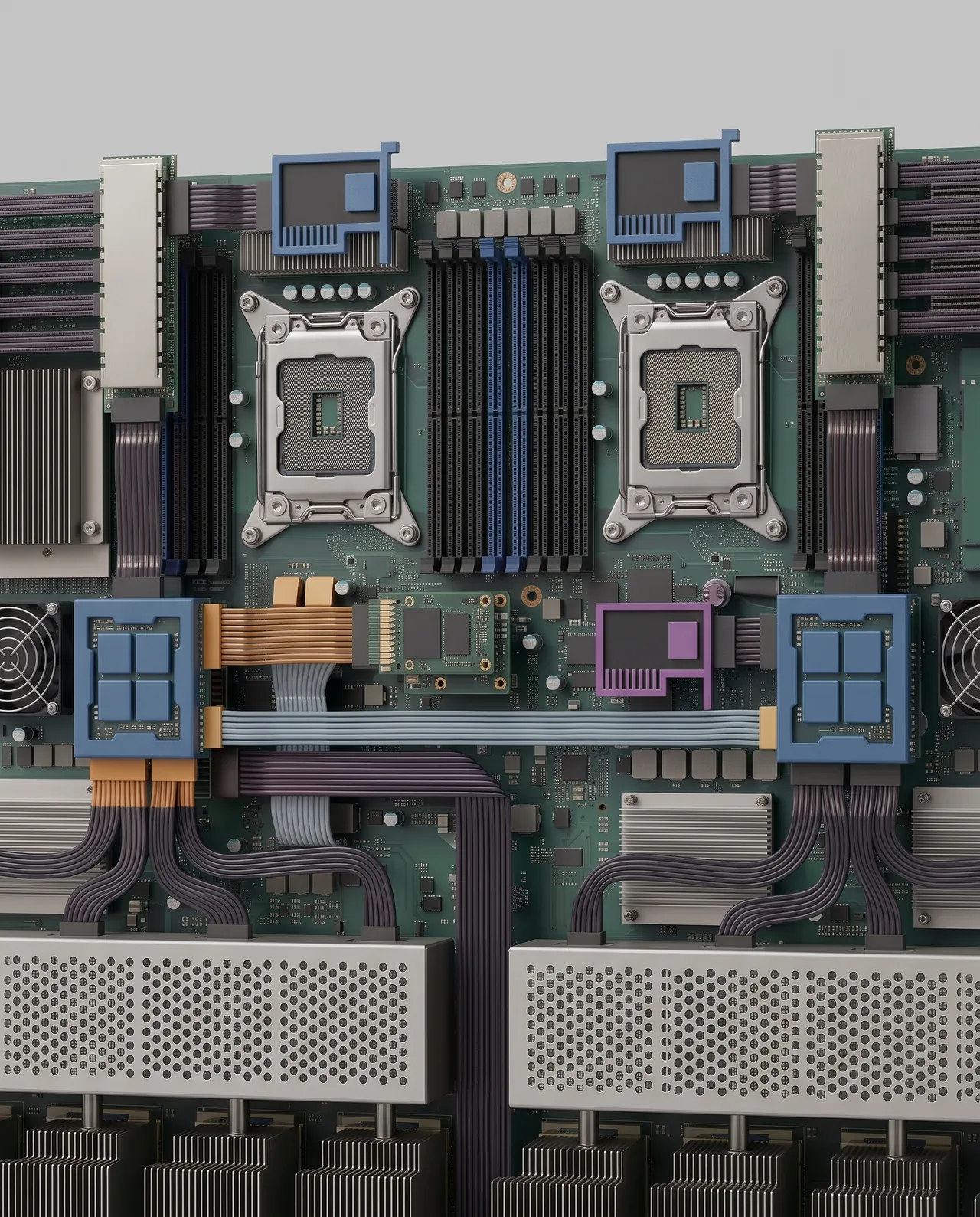

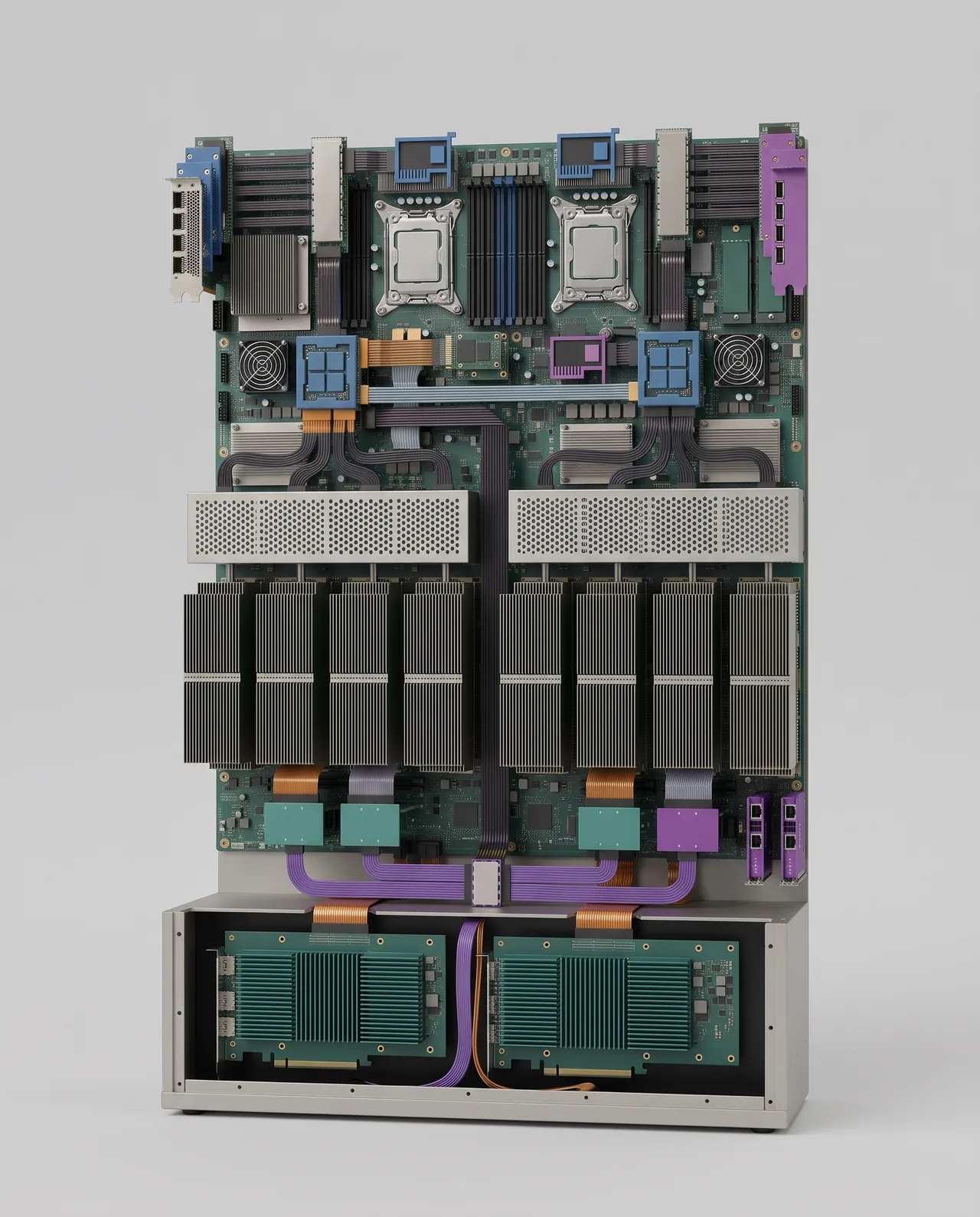

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
37 of 60 publishedSystem configuration
- What this row describes
- Fixed gpu configuration
- GPU architecture
- Nvidia dgx reference system
- Form factor
- Eia rack mount
- Height in rack units
- 8
GPU
- GPU vendor
- Nvidia
- GPU model
- H100
- GPU count
- 8
- Total GPU memory
- 640 GB
GPU interconnect
- GPU-to-GPU interconnect
- Nvlink via nvswitch
- NVSwitch chips
- 4
- NVLink generation
- Nvlink 4
- GPU interconnect bandwidth
- 900 GB/s
- Bandwidth basis
- Per gpu
- GPUs in one scale-up domain
- 8
CPU and memory
- CPU vendor
- Intel
- CPU families supported
- Intel xeon scalable 4th gen
- CPU model (fixed configuration)
- Intel Xeon 8480C
- CPU sockets
- 2
- Max cores per CPU
- 56
- DIMM slots
- 32
Power
- Power supplies installed
- 6
- PSU rating (each)
- 3,300 W
- PSU redundancy
- 4+2
- PSU input voltage
- 200-240 volts AC
Cooling
- Cooling method
- Air
- Airflow
- 1,877.4 m³/h
- Airflow basis
- At stated partial fan speed
Environment
- Operating temperature, min
- 5 °C
- Operating temperature, max
- 30 °C
- Operating humidity, min
- 20 %
- Operating humidity, max
- 80 %
Physical
- Dimensions basis
- Unspecified
- Height
- 356 mm
- Width
- 482.3 mm
- Depth
- 897.1 mm
- Weight
- 130.45 kg
- Weight basis
- Max configuration
