Arista OSFP-800G-2FR4

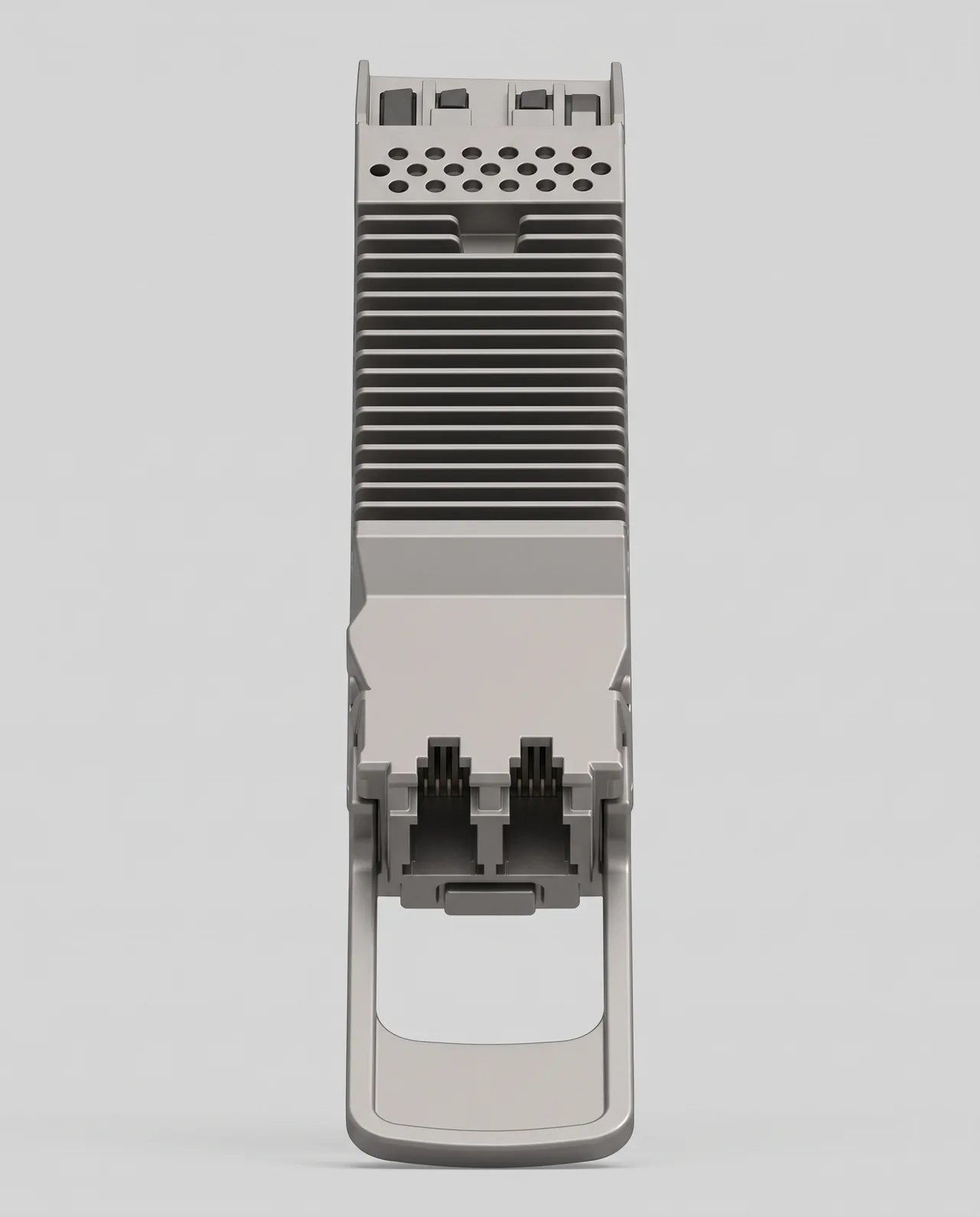

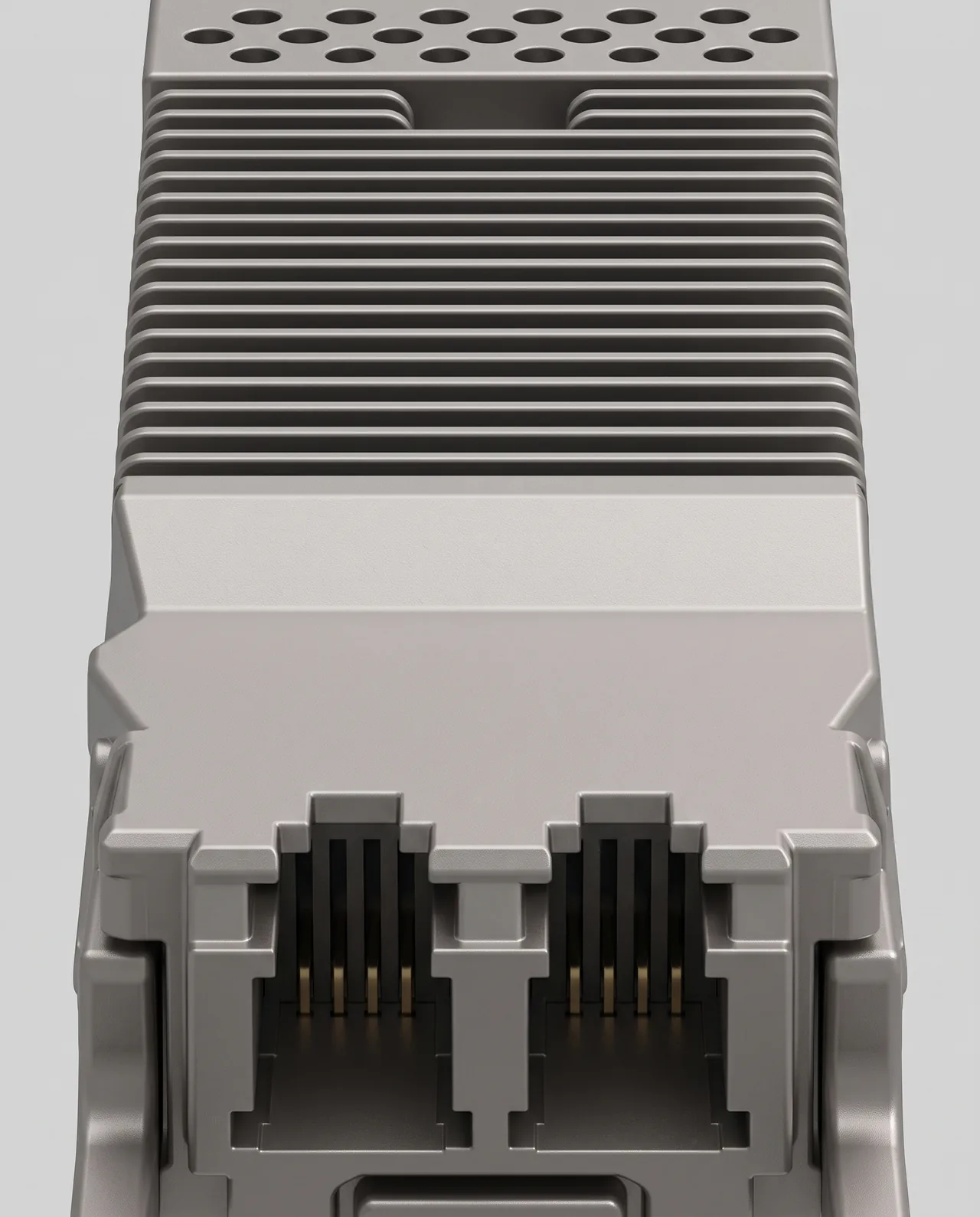

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
26 of 58 publishedClassification
- Form factor
- Osfp
- Form factor (as published)
- OSFP
- Supply channel
- System oem
- Host coding
- Oem native
Data rate and lanes
- Nominal data rate
- 800 Gb/s
- Optical lanes
- 8
Optical interface
- PMD standard claimed
- 800g 2fr4
- PMD label (as published)
- 800GBASE-2FR4 (2x 400GBASE-FR4)
- Fibre media
- Singlemode
- Fibre topology
- Duplex
- Optical connector
- Lc duplex
- Optical ports
- 2
- Wavelength plan
- Cwdm4 1271 1331
- Wavelength range, low
- 1,271 nm
- Wavelength range, high
- 1,331 nm
Reach
| Fibre type | Maximum reach (m) | Reach condition |
|---|---|---|
| Smf g652 | 2,000 m | As published |
Optical budget
- Transmit power, min
- -3.3 dBm
- Transmit power, max
- 3.5 dBm
- Transmit power basis
- Average per lane
- Receive power, min
- -7.3 dBm
- Receive power, max (overload)
- 3.5 dBm
Power
- Maximum power
- 16 W
- Power figure basis
- Family envelope
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 70 °C
- Temperature measured at
- Case
