Coherent (Finisar) FTCD4313E3PCL 400G-FR4 QSFP-DD

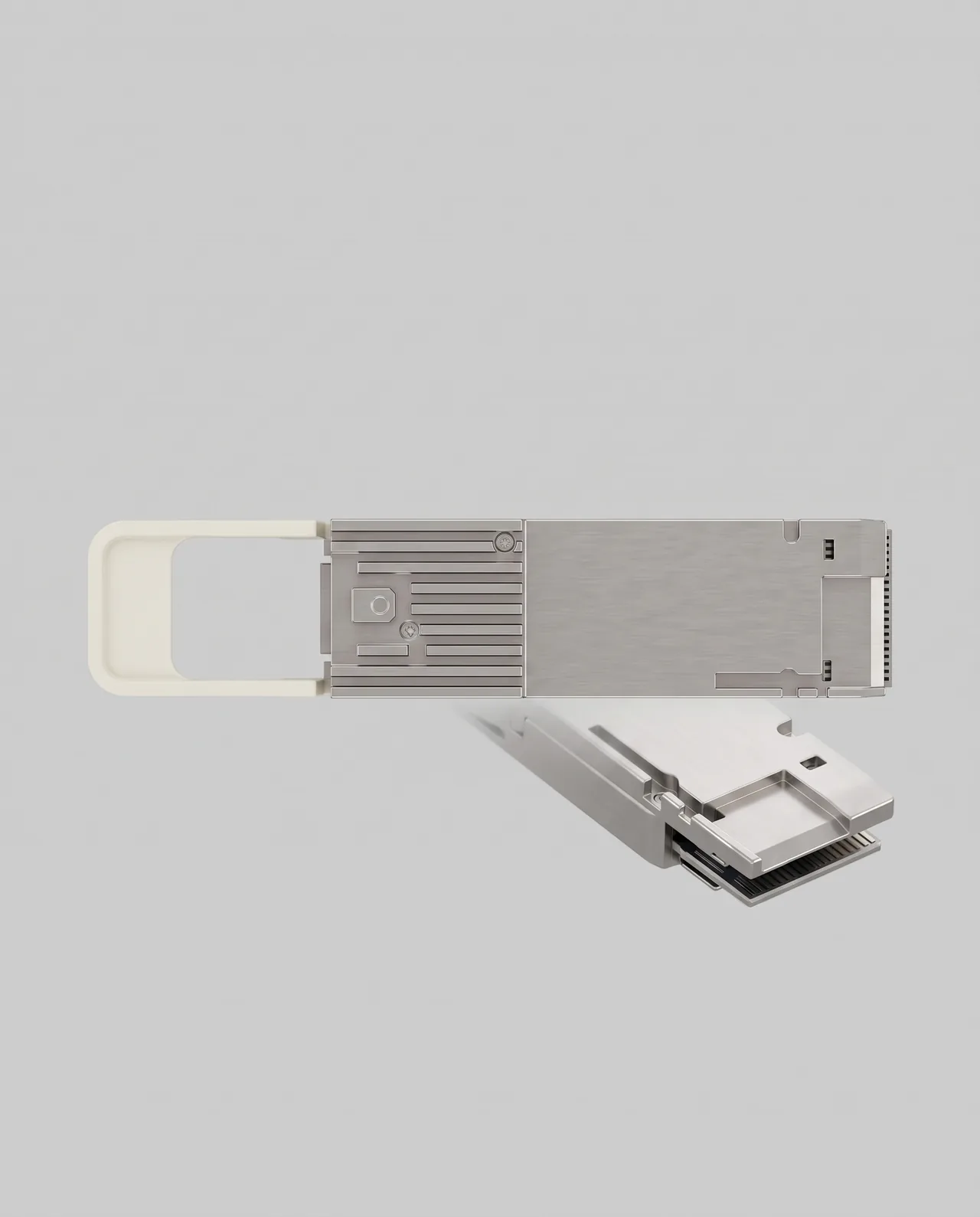

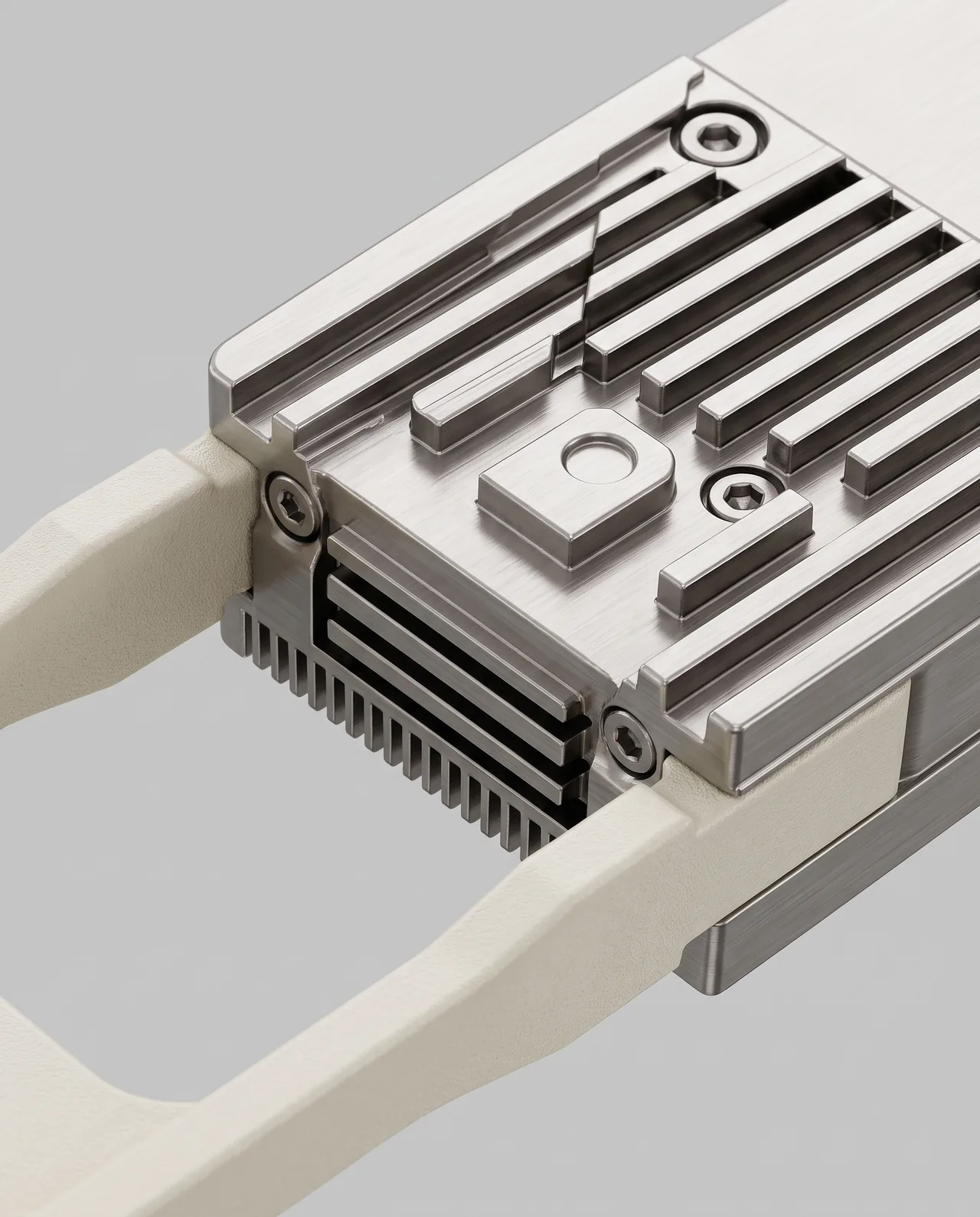

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
39 of 58 publishedClassification
- Form factor
- Qsfp dd
- Form factor (as published)
- QSFP-DD type 2
- Supply channel
- Module maker merchant
Data rate and lanes
- Nominal data rate
- 400 Gb/s
- Maximum aggregate bit rate
- 425 Gb/s
- Electrical lanes
- 8
- Electrical lane rate
- 50 Gb/s
- Electrical interface
- 400gaui 8
- Optical lanes
- 4
- Optical lane rate
- 100 Gb/s
- Optical modulation
- Pam4
Optical interface
- PMD standard claimed
- 400gbase fr4
- PMD label (as published)
- 400G-FR4
- Compliance wording
- Aligned or draft
- Standards and MSAs cited
- Qsfp dd msa, Qsfp28 msa sff 8665, Ieee 802 3cu, Ieee 802 3bs
- Fibre media
- Singlemode
- Fibre topology
- Duplex
- Optical connector
- Lc duplex
- Optical ports
- 1
- Wavelength plan
- Cwdm4 1271 1331
- Wavelength range, low
- 1,271 nm
- Wavelength range, high
- 1,331 nm
Reach
| Fibre type | Maximum reach (m) | Minimum link length (m) | Reach condition |
|---|---|---|---|
| Smf g652 | 2,000 m | 2 m | With fec |
Optical budget
- Transmit power, min
- -3.2 dBm
- Transmit power, max
- 4.4 dBm
- Transmit power basis
- Average per lane
- Receiver sensitivity
- -4.6 dBm
- Receiver sensitivity basis
- Oma outer per lane
- Receive power, min
- -7.2 dBm
- Receive power, max (overload)
- 4.4 dBm
- BER reference
- Pre fec 2 4e 4
- FEC requirement
- Host fec required
Power
- Maximum power
- 8 W
- Power figure basis
- Max over temp and voltage
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 70 °C
- Temperature measured at
- Case
- Temperature grade
- Commercial
Management and compliance
- Laser safety class
- Class 1
More Optical Transceivers
6
AddOn NetworksAddOn QDD-400G-DR4-S-AO (Cisco-compatible 400GBASE-DR4)- Form
- qsfp dd
Arista NetworksArista OSFP-800G-2FR4- Form
- osfp
Arista NetworksArista QSFP-100G-LR4- Form
- qsfp28
CiscoCisco QDD-400G-DR4-S- Form
- qsfp dd
CiscoCisco QDD-400G-LR4-S- Form
- qsfp dd

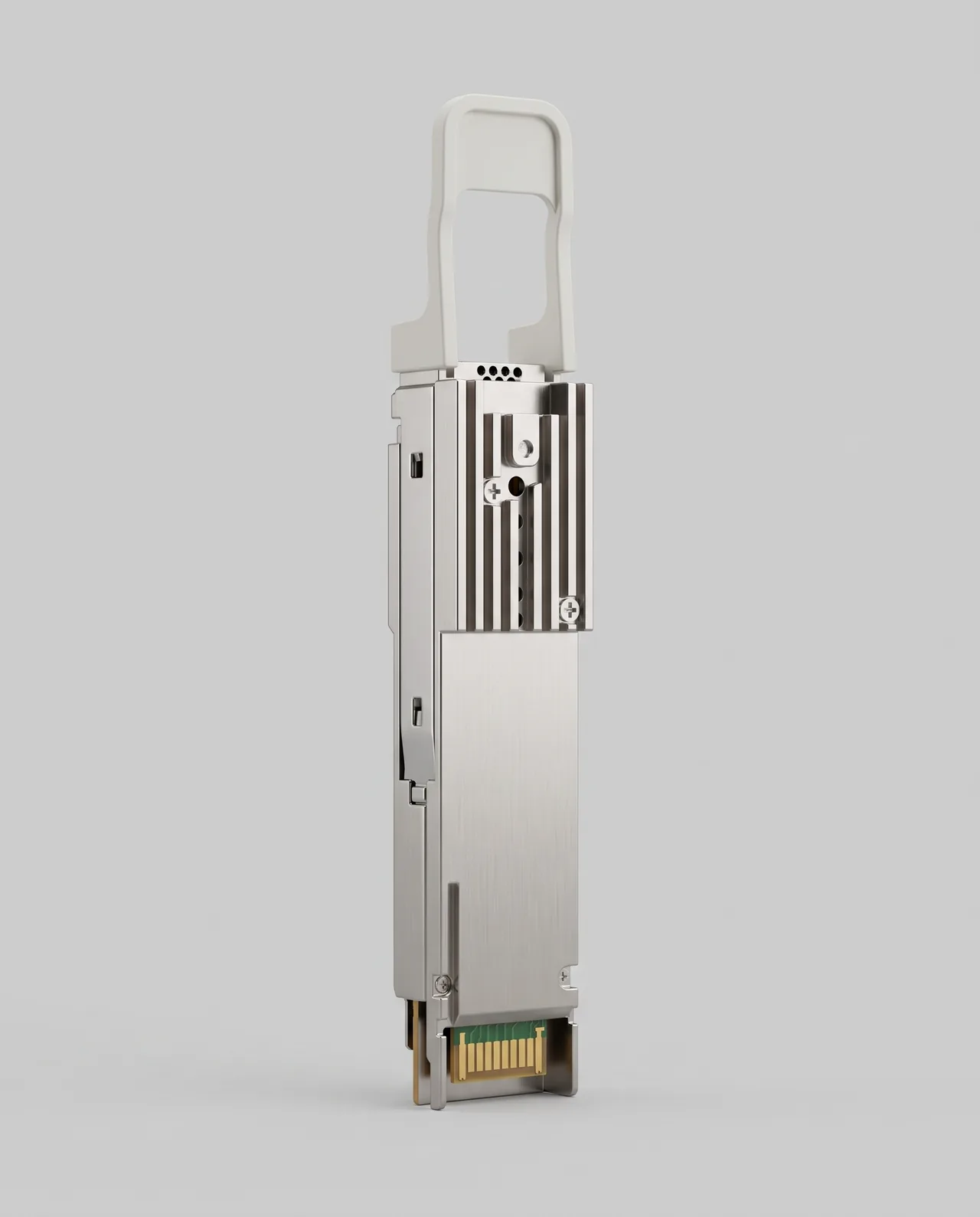

CoherentCoherent (Finisar) FTCE4517E1PCM 800G-DR8 OSFP- Form
