Coherent (Finisar) FTCE4517E1PCM 800G-DR8 OSFP

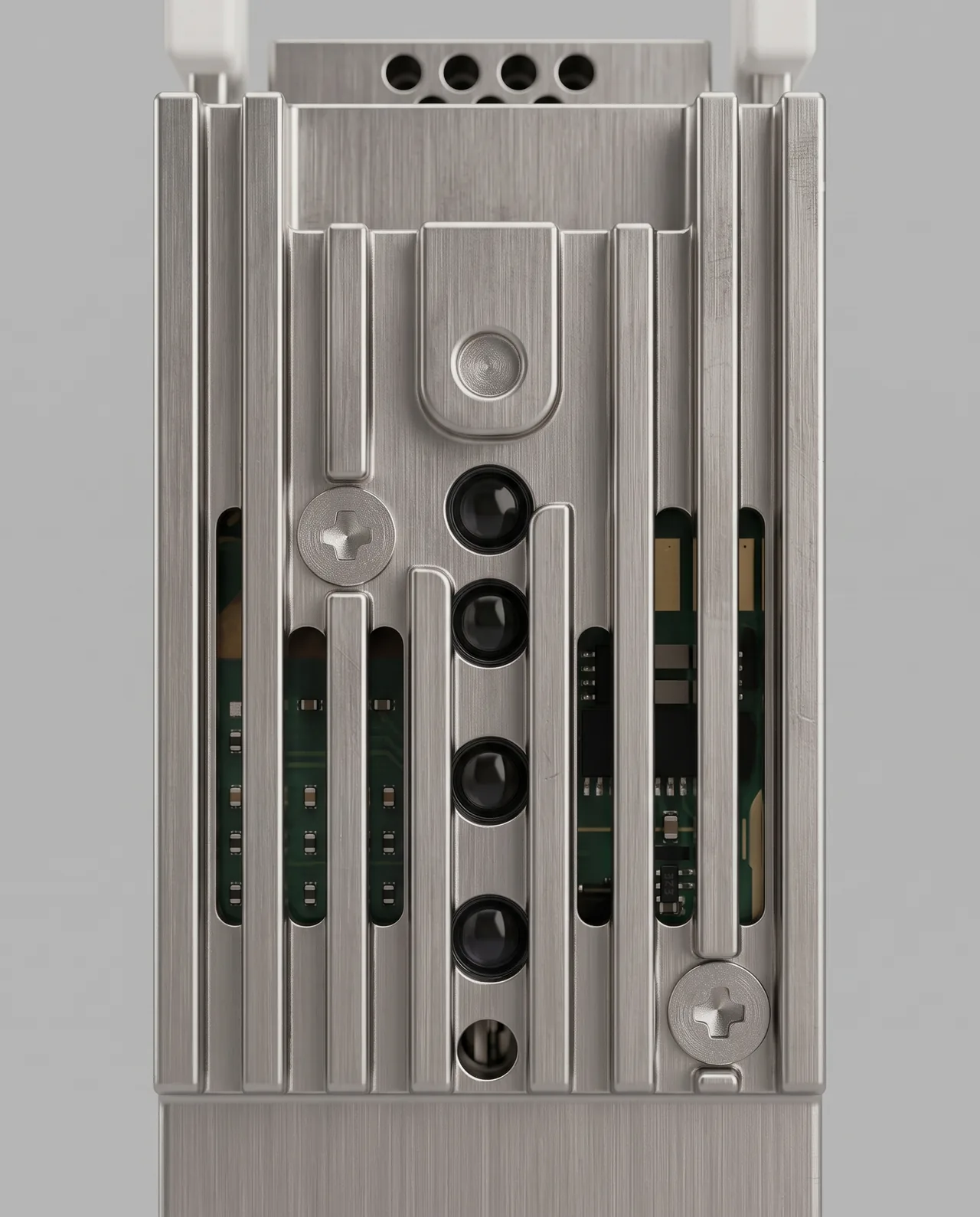

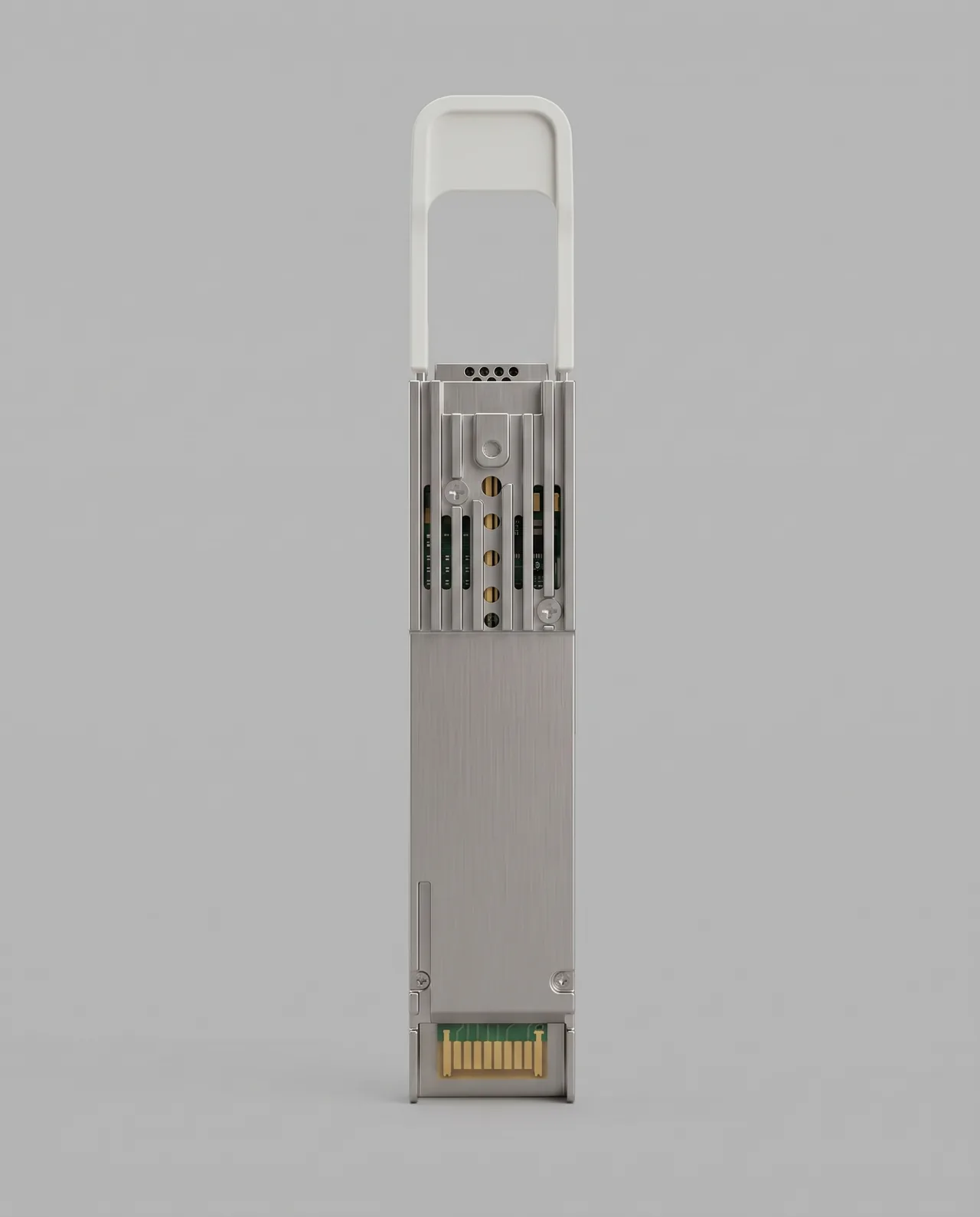

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
29 of 58 publishedClassification
- Form factor
- Osfp
- Form factor (as published)
- OSFP
- Supply channel
- Module maker merchant
Data rate and lanes
- Nominal data rate
- 800 Gb/s
- Optical lanes
- 8
- Supported port modes
- 2x400g, 8x100g
Optical interface
- PMD standard claimed
- 800gbase dr8
- PMD label (as published)
- DR8
- Compliance wording
- Aligned or draft
- Standards and MSAs cited
- Osfp msa, Ieee 802 3bs, Ieee 802 3ck
- Fibre media
- Singlemode
- Fibre topology
- Parallel
- Optical connector
- Mpo 16
- Optical ports
- 1
- Wavelength plan
- Single 1310
- Wavelength range, low
- 1,304.5 nm
- Wavelength range, high
- 1,317.5 nm
Reach
| Fibre type | Maximum reach (m) | Reach condition |
|---|---|---|
| Smf unspecified | 500 m | With fec |
Optical budget
- Transmit power, min
- -2.9 dBm
- Transmit power, max
- 4 dBm
- Transmit power basis
- Average per lane
- Receive power, min
- -5.9 dBm
- Receive power, max (overload)
- 4 dBm
Power
- Maximum power
- 17 W
- Power figure basis
- Max over temp and voltage
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 70 °C
- Temperature measured at
- Case
- Temperature grade
- Commercial
