NVIDIA MMS4X00-NM

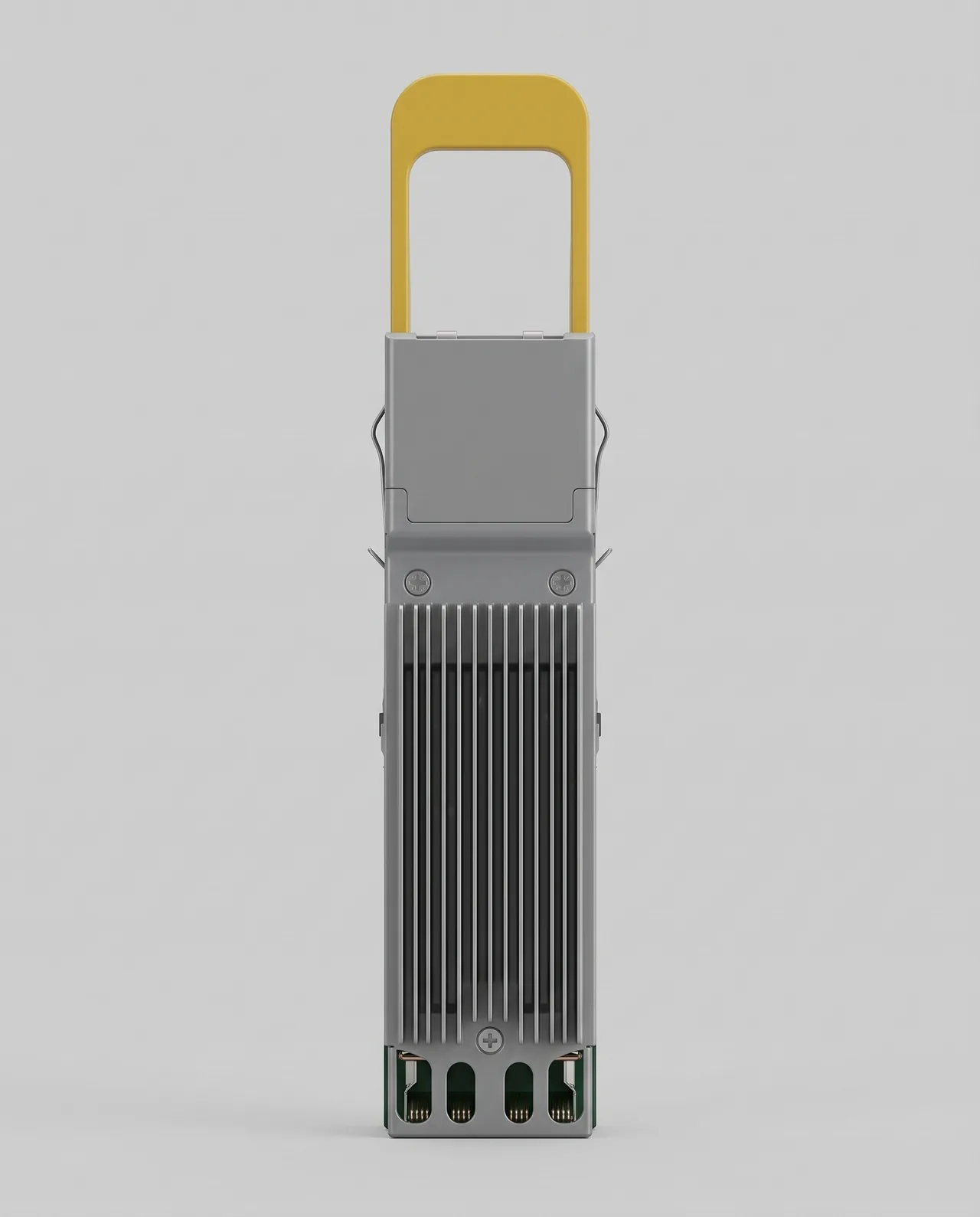

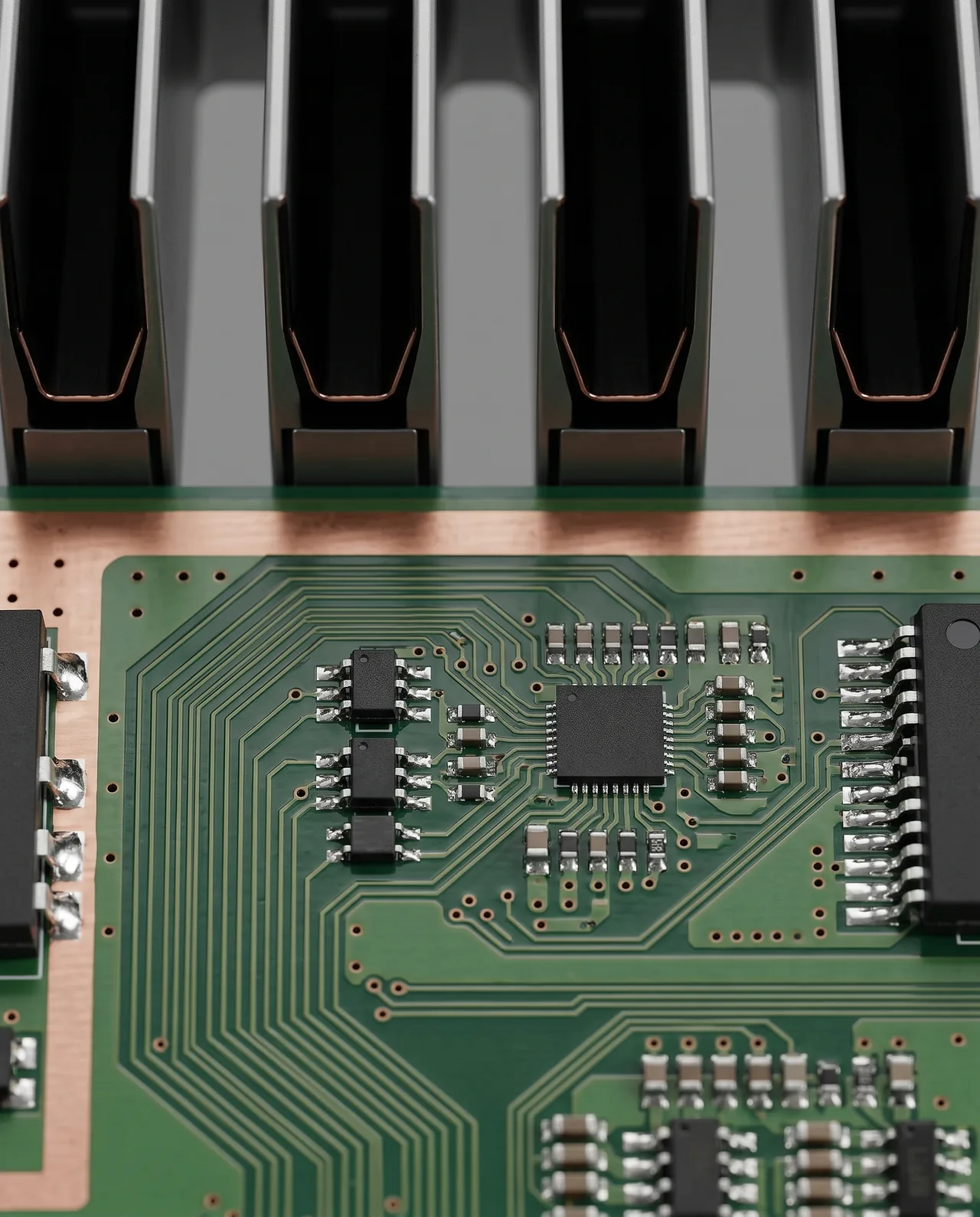

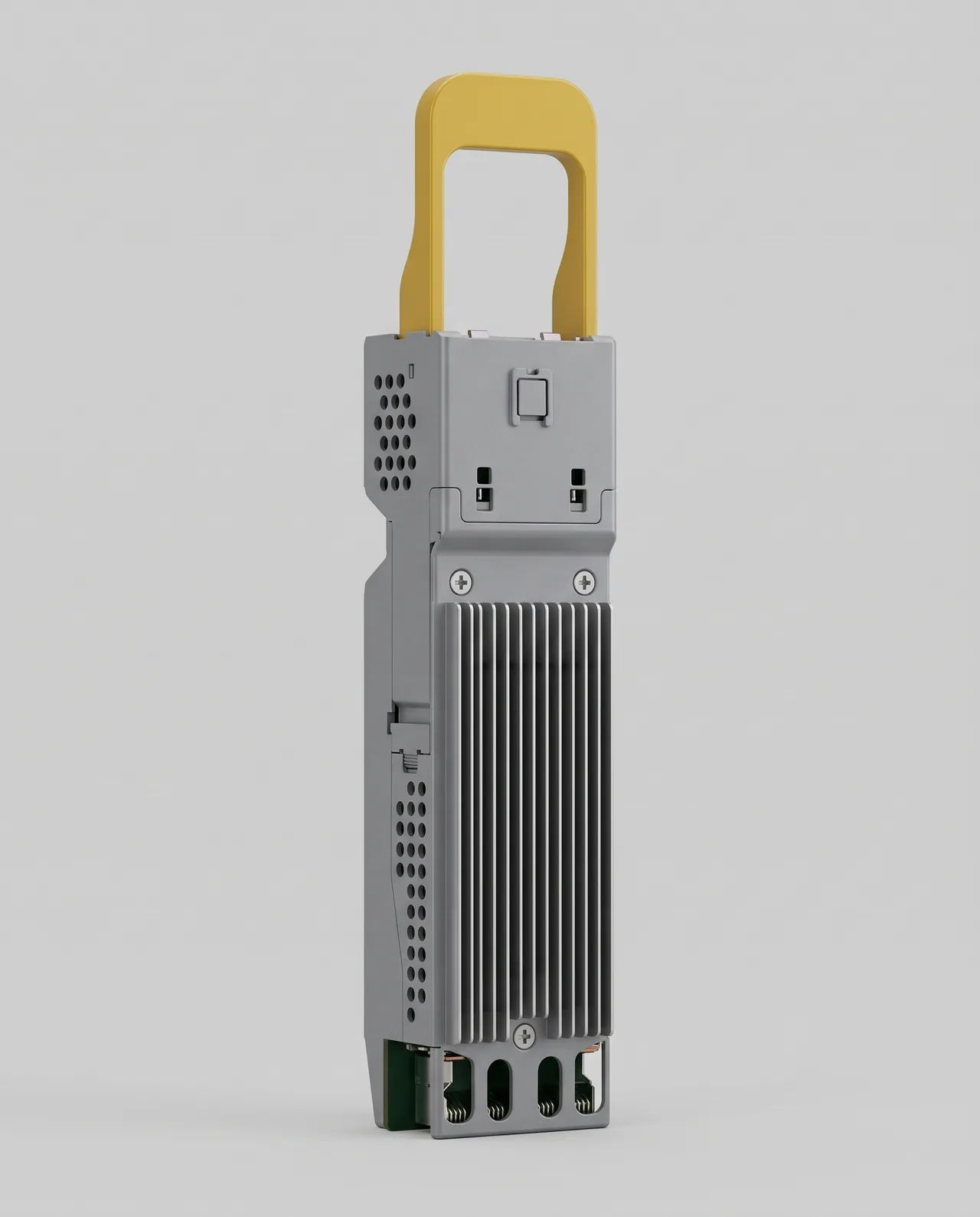

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
39 of 58 publishedClassification
- Form factor
- Osfp
- Form factor (as published)
- Twin-port OSFP, finned top
- Supply channel
- System oem
- Host coding
- Oem native
- Protocols
- Ethernet, Infiniband ndr
Data rate and lanes
- Nominal data rate
- 800 Gb/s
- Electrical lanes
- 8
- Electrical lane rate
- 100 Gb/s
- Optical lanes
- 8
- Optical modulation
- Pam4
- Supported port modes
- 2x400g
Optical interface
- PMD standard claimed
- 800g 2xdr4
- PMD label (as published)
- 2xDR4
- Standards and MSAs cited
- Osfp msa, Cmis
- Fibre media
- Singlemode
- Fibre topology
- Parallel
- Optical connector
- Mpo 12
- Connector polish
- Apc
- Optical ports
- 2
- Wavelength plan
- Single 1310
- Centre wavelength
- 1,311 nm
- Wavelength range, low
- 1,304.5 nm
- Wavelength range, high
- 1,317.5 nm
Reach
| Fibre type | Maximum reach (m) | Reach condition |
|---|---|---|
| Smf unspecified | 500 m | Includes two patch panels |
Optical budget
- Transmit power, min
- -1 dBm
- Transmit power, max
- 4 dBm
- Transmit power basis
- Average per lane
- Receive power, min
- -5 dBm
- Receive power, max (overload)
- 4 dBm
- BER reference
- Pre fec 2 4e 4
Power
- Maximum power
- 17 W
- Power figure basis
- Max unqualified
- Typical power
- 16 W
- Low-power mode
- 1.5 W
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 70 °C
- Temperature measured at
- Case
Management and compliance
- Management interface
- Cmis 4
- Laser safety class
- Class 1
More Optical Transceivers
6

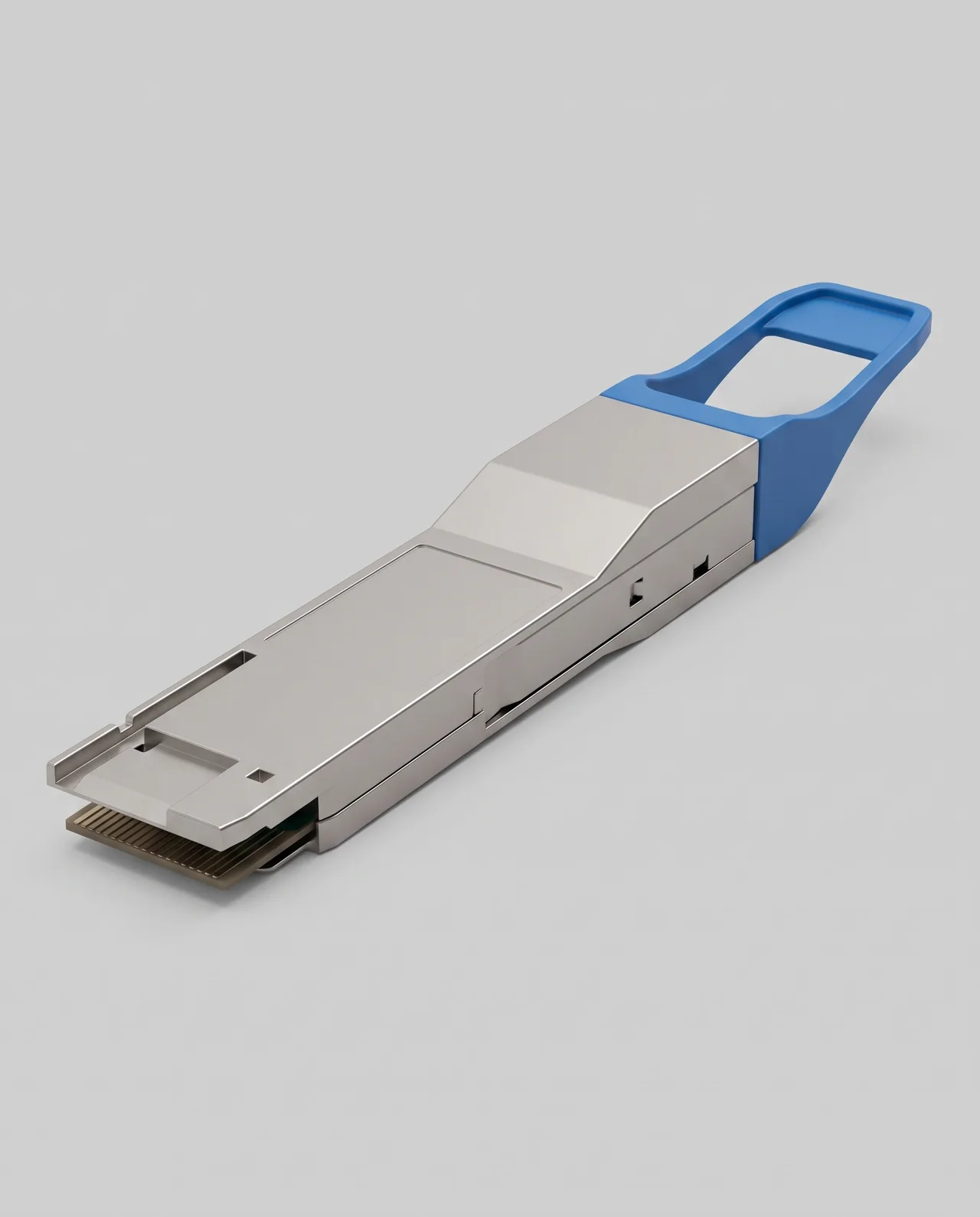

AddOn NetworksAddOn QDD-400G-DR4-S-AO (Cisco-compatible 400GBASE-DR4)- Form
- qsfp dd

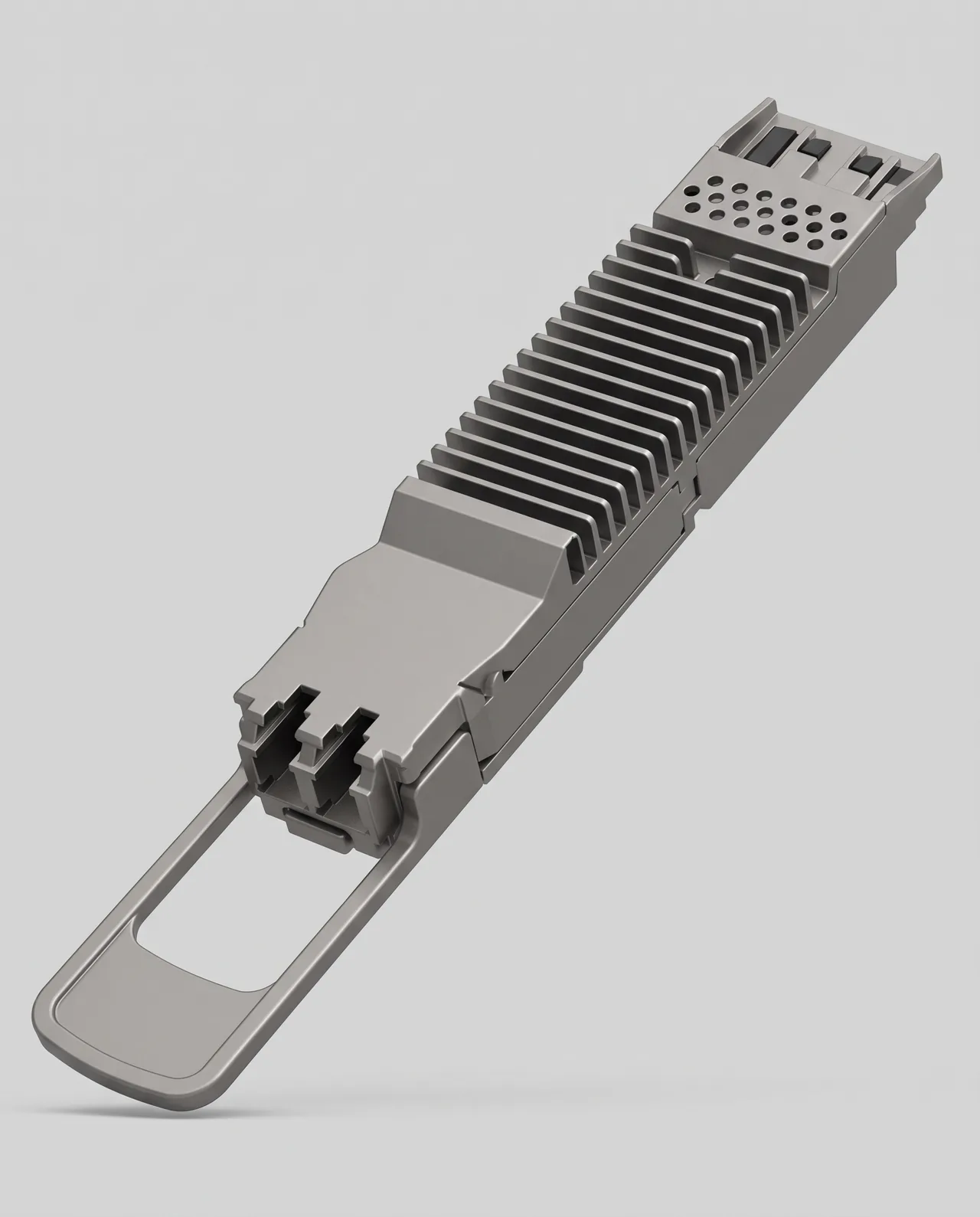

Arista NetworksArista OSFP-800G-2FR4- Form
- osfp

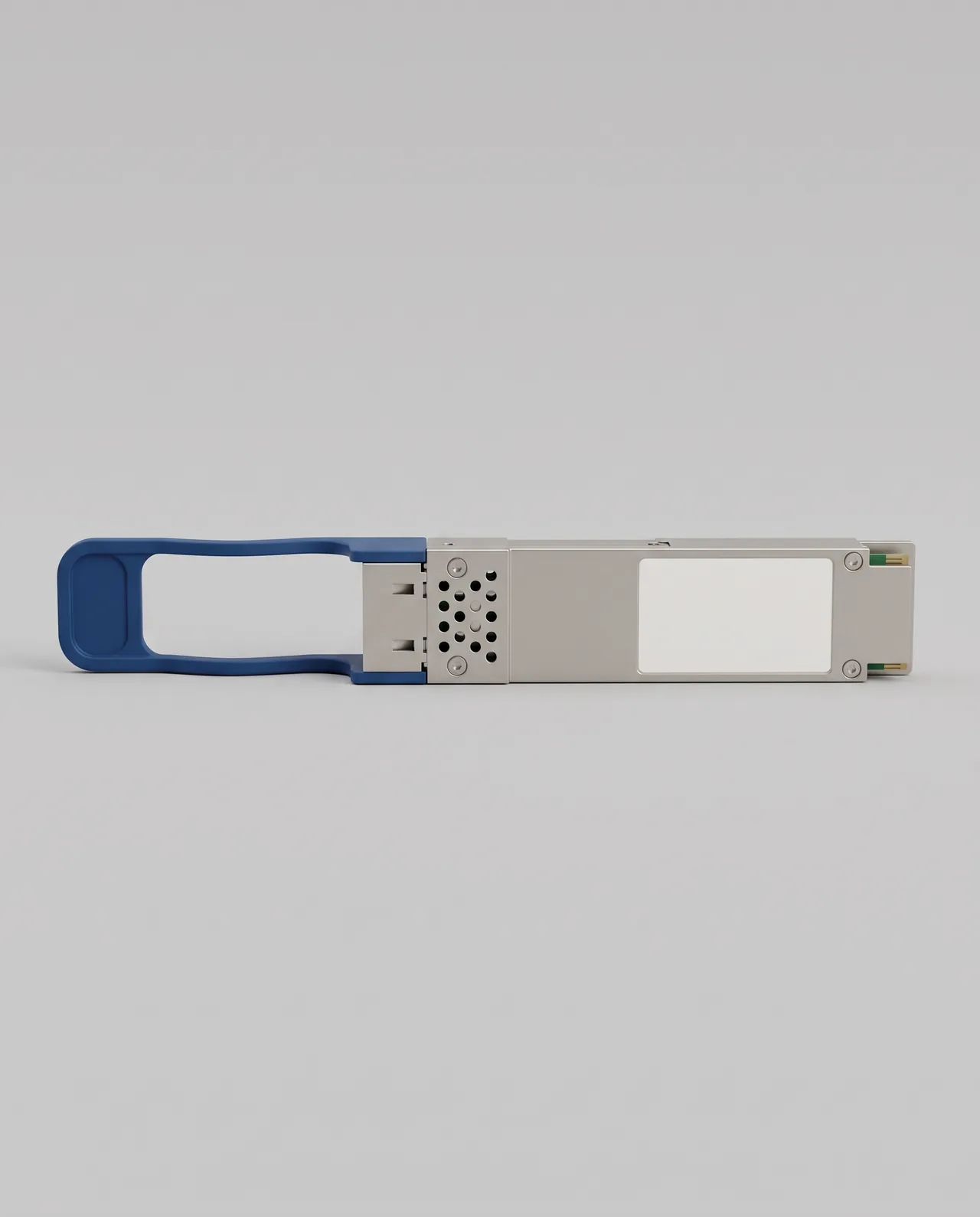

Arista NetworksArista QSFP-100G-LR4- Form
- qsfp28

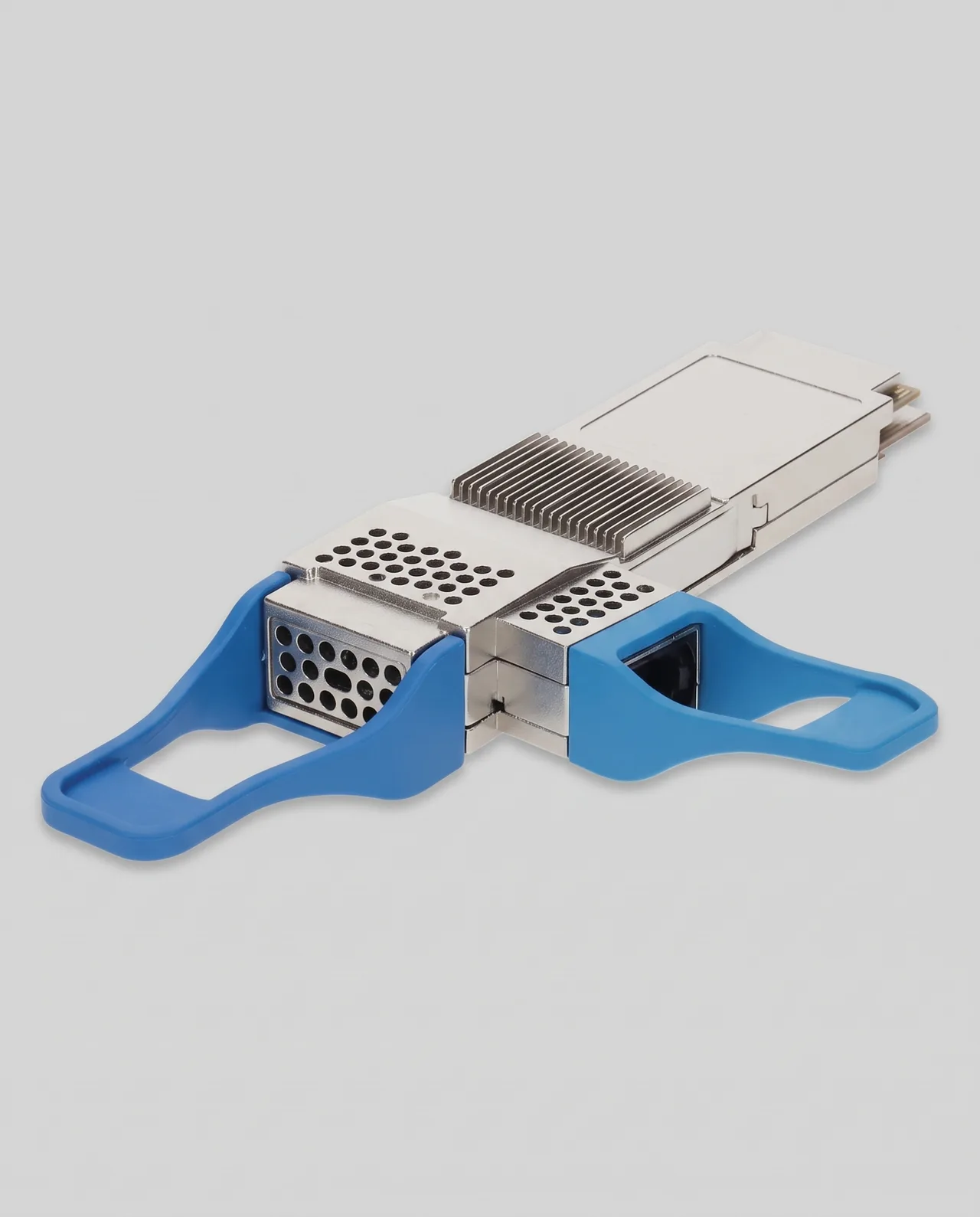

CiscoCisco QDD-400G-DR4-S- Form
- qsfp dd

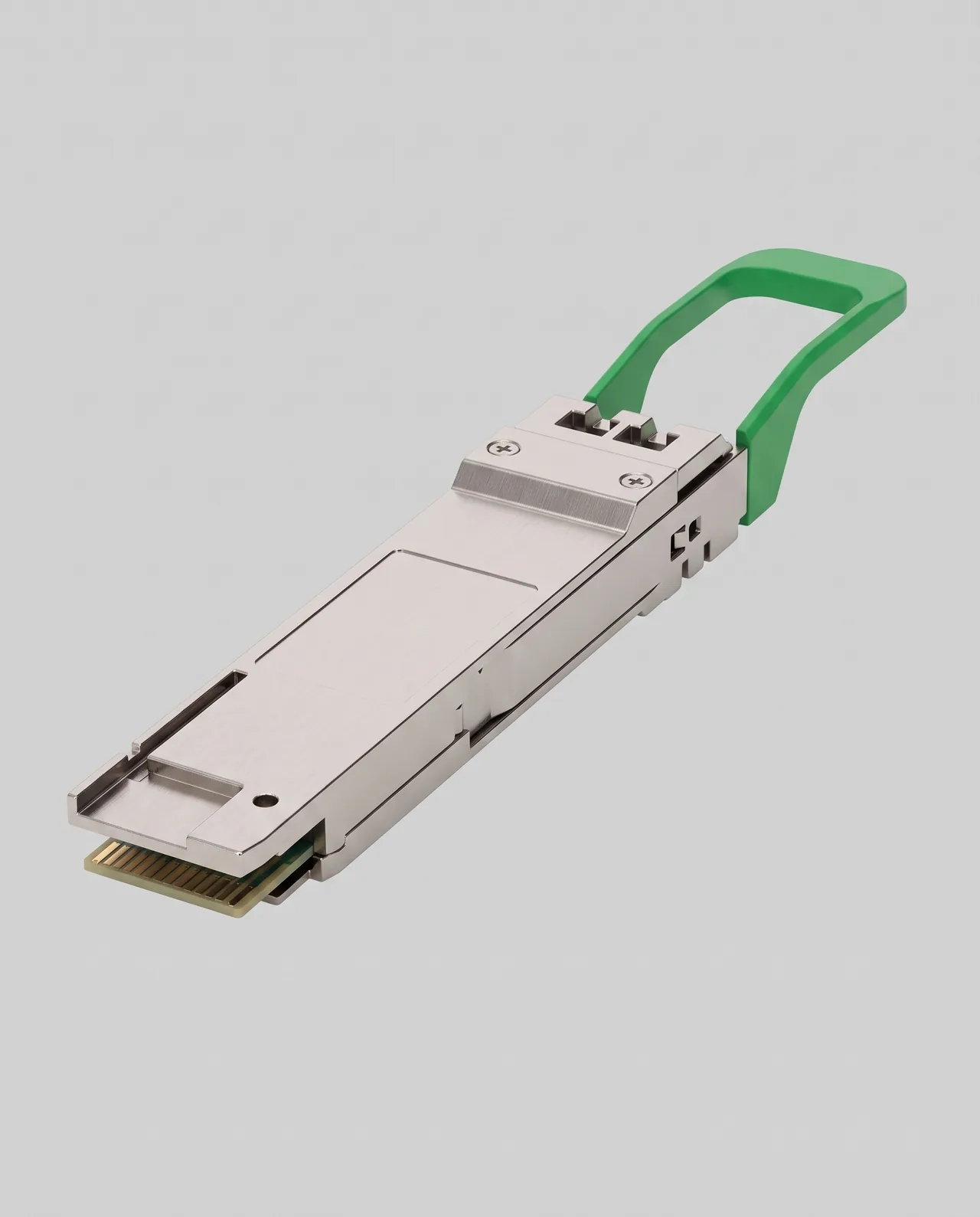

CiscoCisco QDD-400G-LR4-S- Form
- qsfp dd

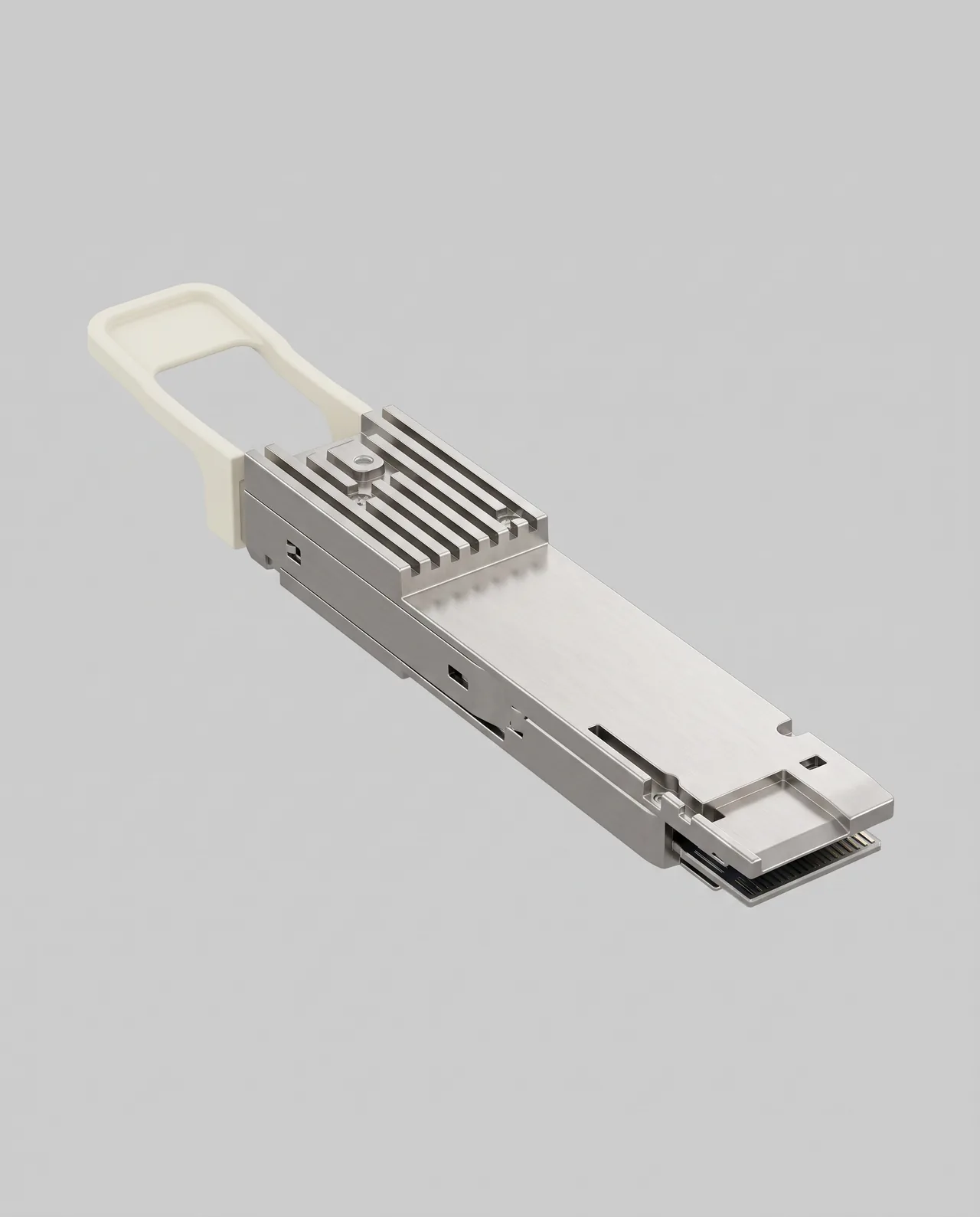

CoherentCoherent (Finisar) FTCD4313E3PCL 400G-FR4 QSFP-DD- Form
