GIGABYTE GIGAPOD AI DLC Rack NVIDIA GB200 NVL72 (DLB2-CB1)

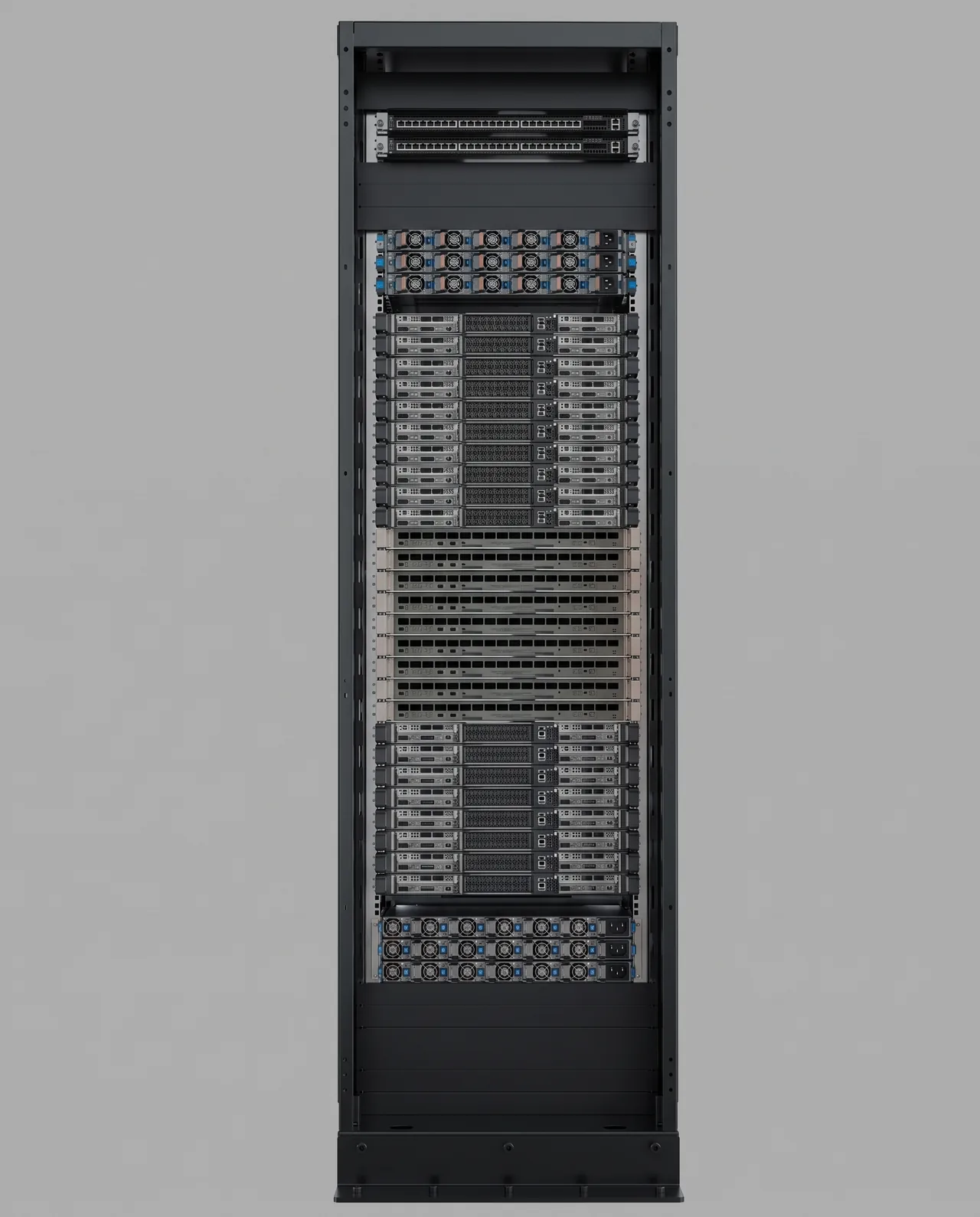

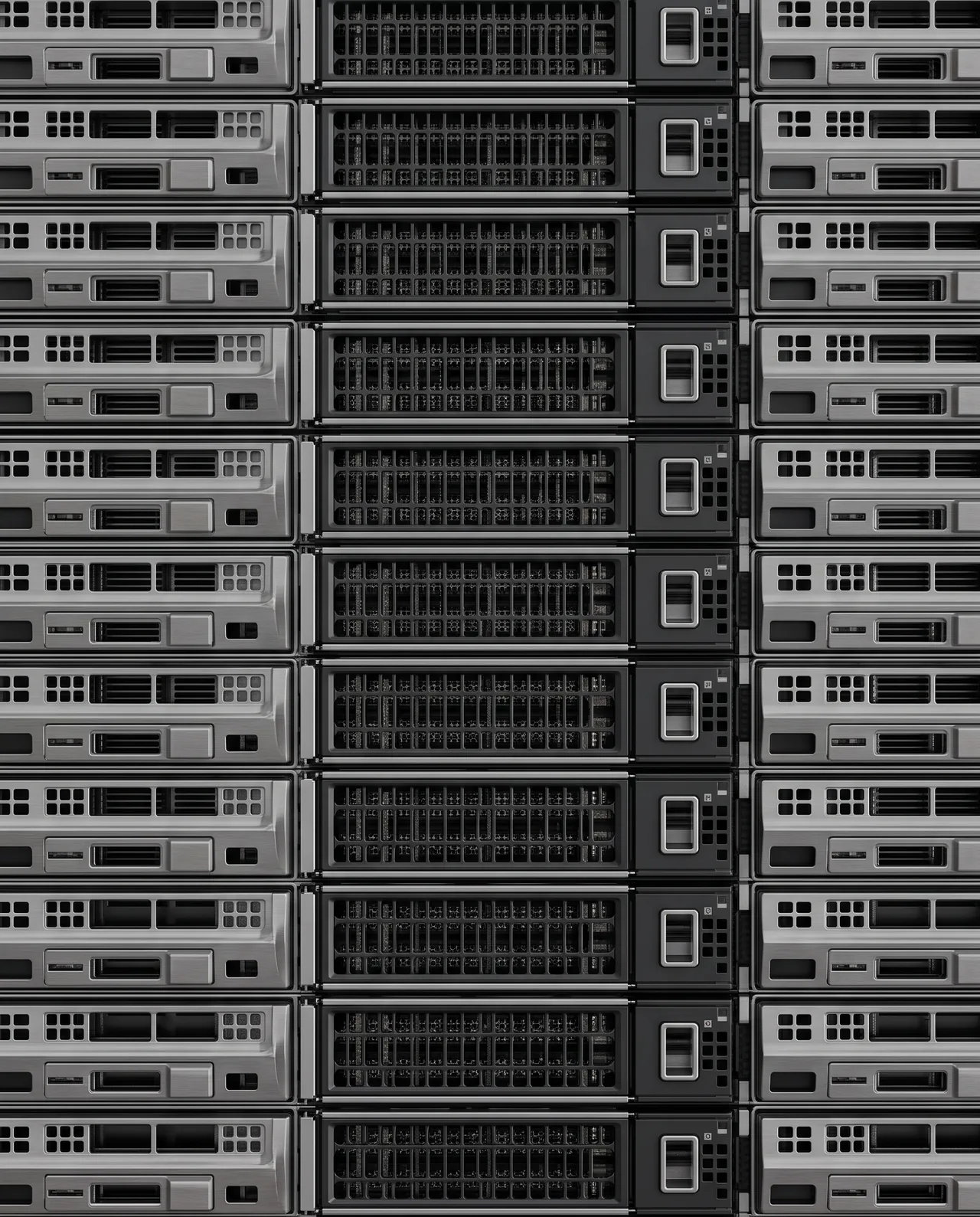

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
32 of 80 publishedClassification
- Offering type
- Partner build of reference design
- Reference design
- Nvidia gb200 nvl72
- Accelerator
- NVIDIA Blackwell
- Host CPU
- NVIDIA Grace
Scale-up domain
- Accelerators per rack
- 72
- Host CPUs per rack
- 36
- Scale-up bandwidth per accelerator
- 1,800 GB/s
- Scale-up switch trays
- 9
- Scale-up cable cartridges
- 4
- In-rack management switches
- 2
Compute and networking
- Compute trays
- 18
- Accelerators per compute tray
- 4
- Compute tray model
- XN14-CB0-LA01
- Accelerator memory per unit
- 186 GB
- Memory figure basis
- Unstated
- Scale-out port speed
- 400 Gb/s
- Scale-out ports per compute tray
- 4
- Scale-out fabric options
- Infiniband, Ethernet
Rack power
- Power shelves (min)
- 6
- Power shelves (max)
- 6
- Power shelf output
- 33 kW
- DC busbar voltage (nominal)
- 54 V
- Busbar current rating
- 1,400 A
Liquid cooling
- Cooling architecture
- Dlc hybrid air liquid
- Liquid-cooled components
- Cpu, Gpu
- Water quality reference
- ASHRAE Liquid Cooling Guidelines for Datacom Equipment Centers, 2nd ed., Ch. 5, as reproduced in the ASHRAE TC 9.9 white paper Water-Cooled Servers: Common Designs, Components, and Processes (2019), Table 1
Validated CDU options
| CDU type | Supplied | As published |
|---|---|---|
| In rack or in row unspecified | Unstated | Compatible with in-row or in-rack CDU |
Physical and siting
- Rack width
- 600 mm
- Rack depth
- 1,068 mm
- Rack height
- 2,299 mm
- Dimension basis
- Basis unstated
Part numbers
Vendor part numbers
| Part number | Description as published |
|---|---|
| 9NDLB2CB1MR000* | DLB2-CB1 |
