NVIDIA GB200 NVL72 by HPE

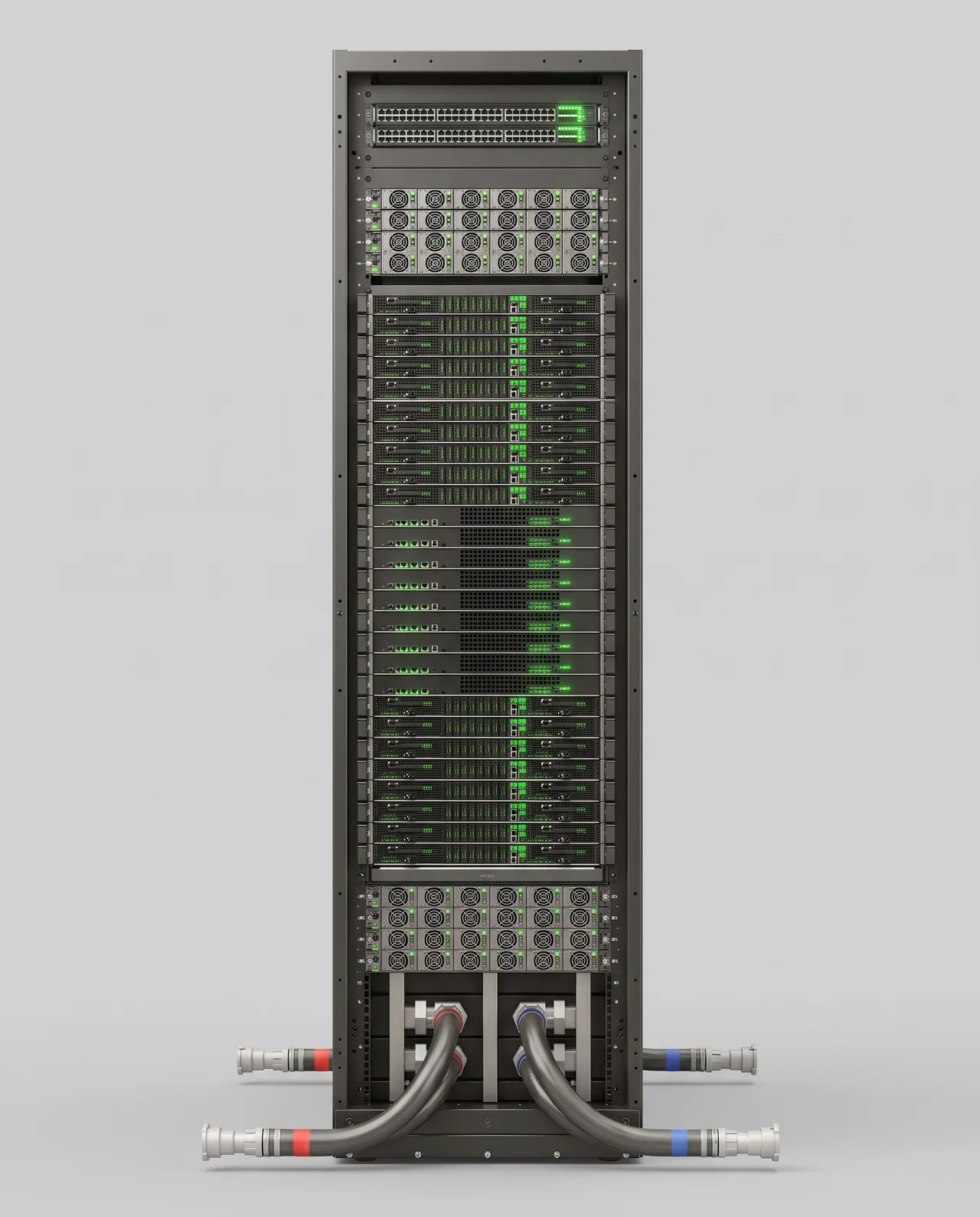

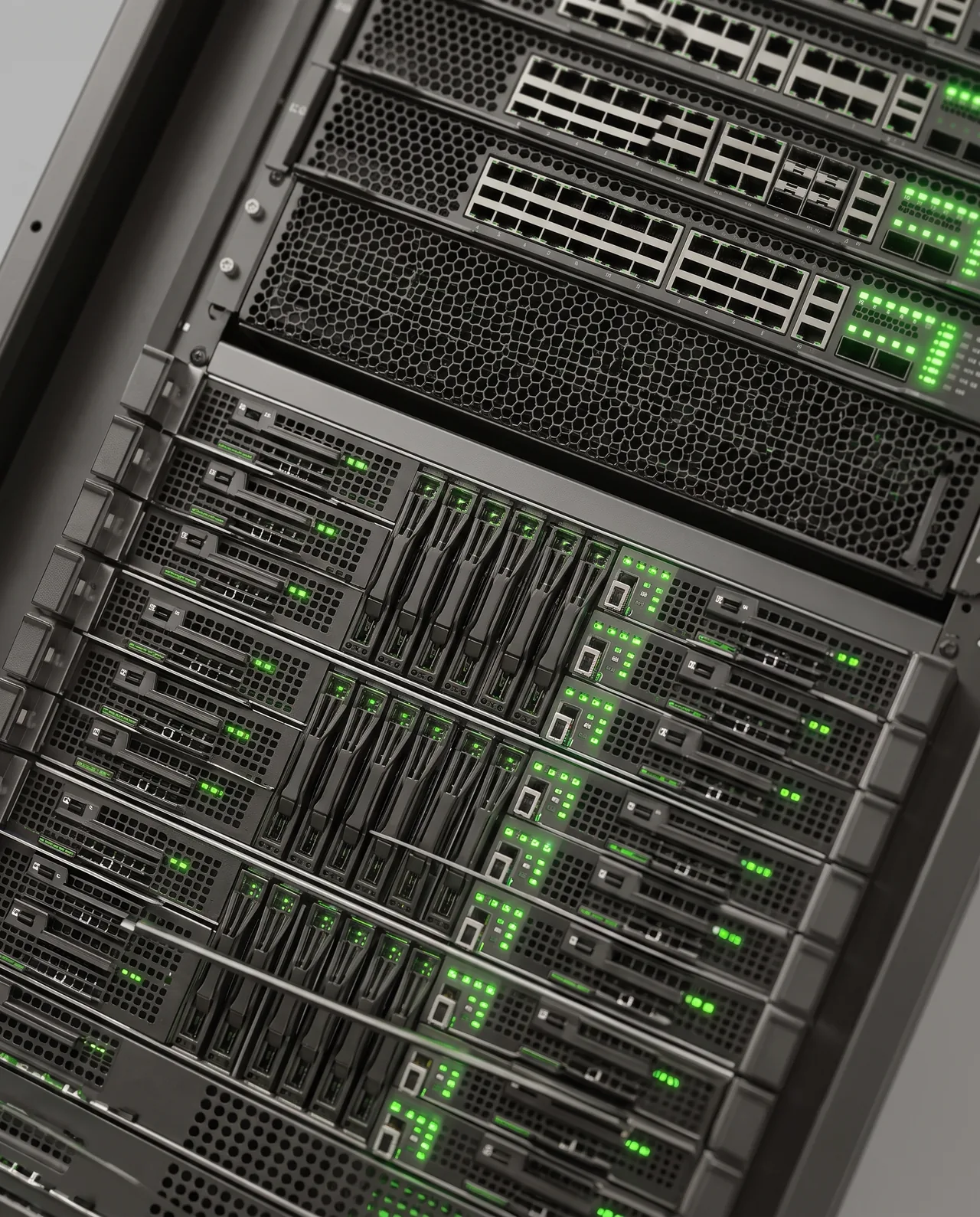

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
33 of 80 publishedClassification
- Offering type
- Partner build of reference design
- Reference design
- Nvidia gb200 nvl72
- Accelerator
- NVIDIA Blackwell
- Host CPU
- NVIDIA Grace
- Rack height (RU)
- 48 U
Scale-up domain
- Accelerators per rack
- 72
- Host CPUs per rack
- 36
- Scale-up switch trays
- 9
- In-rack management switches
- 2
Compute and networking
- Compute trays
- 18
- Accelerators per compute tray
- 4
Rack power
- Rack power (headline)
- 132 kW
- Headline power basis
- Tdp nominal
- Power shelves (min)
- 6
- Power shelves (max)
- 8
- Power shelf output
- 33 kW
- PSUs per shelf
- 6
- PSU rating
- 5.5 kW
- DC busbar voltage (nominal)
- 50 V
Rack power ratings
| Kind | Power (kW) | Label as published |
|---|---|---|
| Tdp nominal | 132 kW | The rack’s TDP (thermal design power) is 132 kW nominal |
| Edp peak | 192 kW | EDPp (electrical design power – peak) of 1.5x TDP or approximately 192 kW |
| Provisioning recommendation | 192 kW | HPE suggests that data centers should provision their bus ways to be able to support 192 kW EDPp. |
Liquid cooling
- Cooling architecture
- Dlc liquid share unstated
- Liquid-cooled components
- Cpu, Gpu
Validated CDU options
| CDU type | CDU capacity (kW) | Racks supported | CDU model | Supplied | As published |
|---|---|---|---|---|---|
| In row liquid to liquid | 1,300 kW | 8 | Vertiv XDU1350 | Optional | The in-row CDU is rated for 1.3 MW of cooling. One CDU supports a maximum of 8 racks. |
Physical and siting
- Rack width
- 600 mm
- Rack depth
- 1,068 mm
- Rack height
- 2,495 mm
- Dimension basis
- Basis unstated
- Rack weight
- 1,471.9 kg
- Weight basis
- Fully loaded fluid state unstated
- Weight as published
- Fully Loaded (with PGW): 3245 lbs
Facility interfaces
- Power whip connector
- IEC 60309 5-wire 560P6W
- Manifold feed options
- Top feed, Bottom feed
Part numbers
Vendor part numbers
| Part number | Description as published |
|---|---|
| S5T77A | NVIDIA GB200 NVL72 by HPE Base System Code |
| S5T78A | NVIDIA GB200 NVL72 by HPE Upgrade System Code |
| S4Q89A | NVIDIA GB200 NVL72 by HPE Rack Solution |
| S5R45A | HPE 44U Top Feed Manifold Kit for NVIDIA NVL72 |
| S5R46A | HPE 44U Bottom Feed Manifold Kit for NVIDIA NVL72 |
| S5S33A | HPE RACK EXTENSION KIT NVL72 300MM |
| S6D82A | NVIDIA NVL72 Power Shelf Upgrade Kit |
