NVIDIA DGX GB200

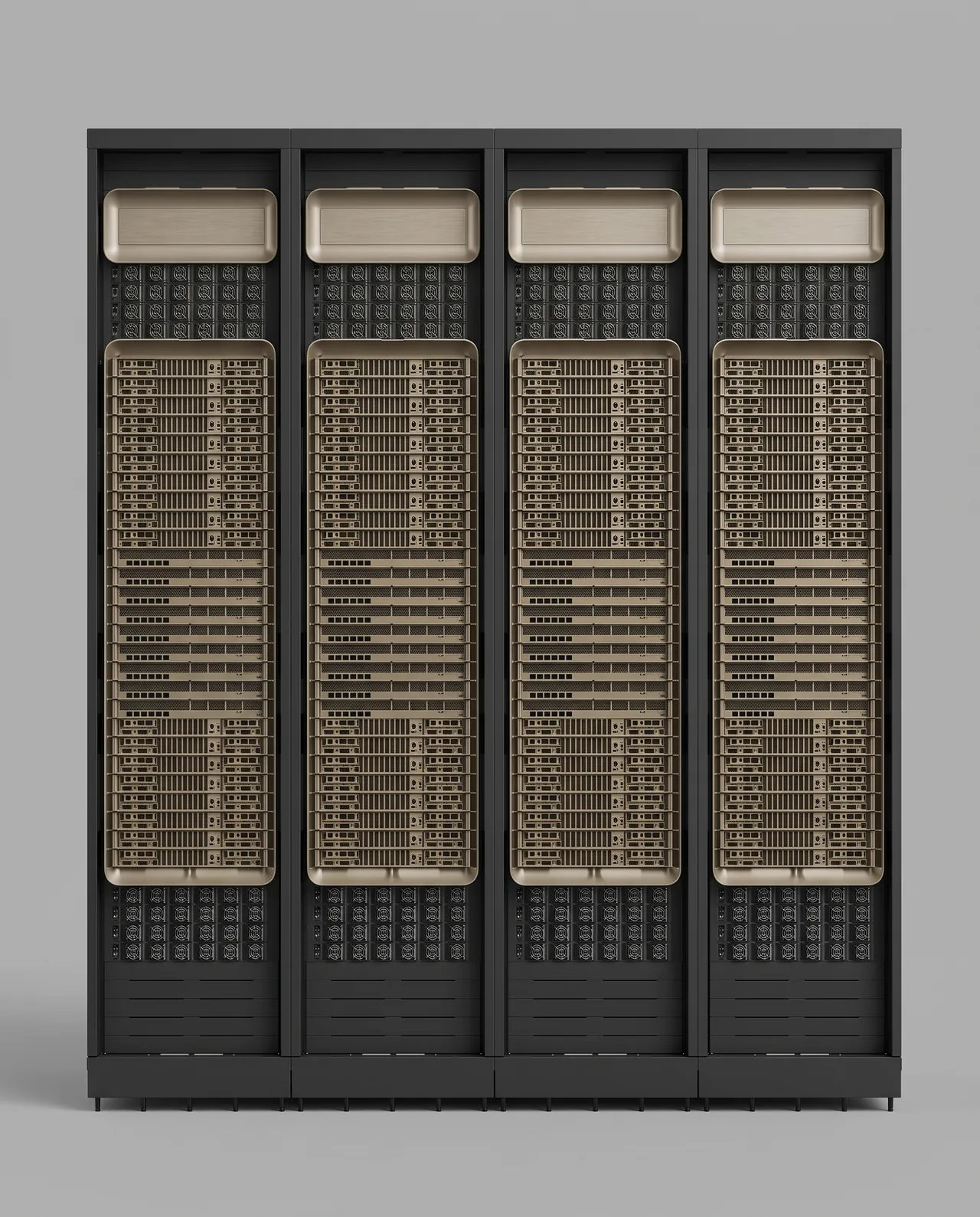

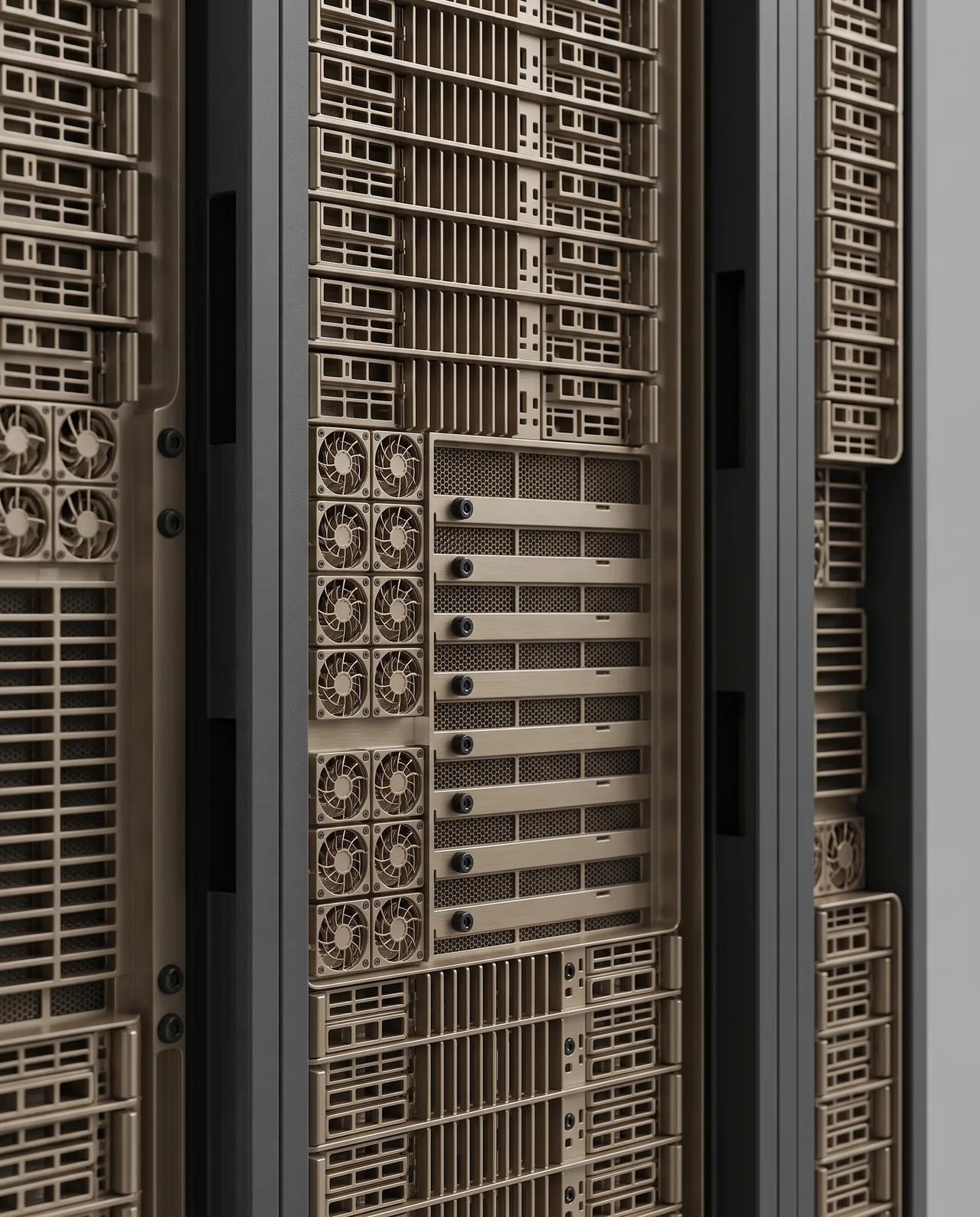

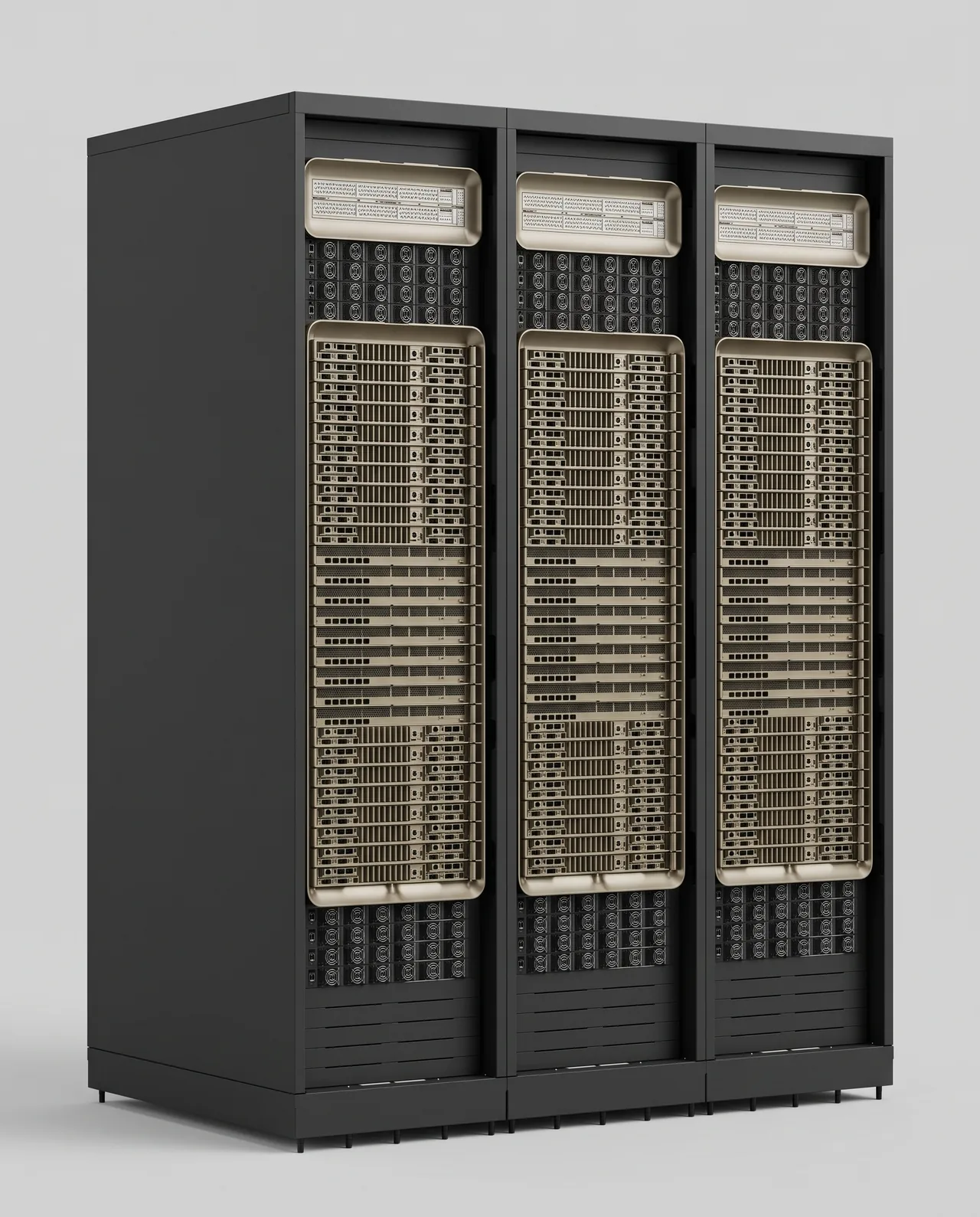

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
24 of 80 publishedClassification
- Offering type
- Reference design owner system
- Reference design
- Nvidia gb200 nvl72
- Accelerator
- NVIDIA Blackwell
- Host CPU
- NVIDIA Grace
Scale-up domain
- Accelerators per rack
- 72
- Scale-up domain size
- 72
- Scale-up switch trays
- 9
- Switch ASICs per tray
- 2
- In-rack management switches
- 2
Compute and networking
- Compute trays
- 18
- Accelerators per compute tray
- 4
- Scale-out port speed
- 400 Gb/s
- Scale-out ports per compute tray
- 4
Rack power
- Rack power (headline)
- 120 kW
- Headline power basis
- Typical consumption
- Power shelves (min)
- 8
- Power shelves (max)
- 8
- PSUs per shelf
- 6
- PSU rating
- 5.5 kW
- Power redundancy options
- N plus n
Rack power ratings
| Kind | Power (kW) | Label as published |
|---|---|---|
| Typical consumption | 120 kW | The rack power consumption is approximately 120kW. |
Liquid cooling
- Cooling architecture
- Dlc hybrid air liquid
- Liquid-cooled components
- Cpu, Gpu
- Air-cooled components
- Scale out nic, Dpu, Storage
More Rack-Scale AI Systems
6

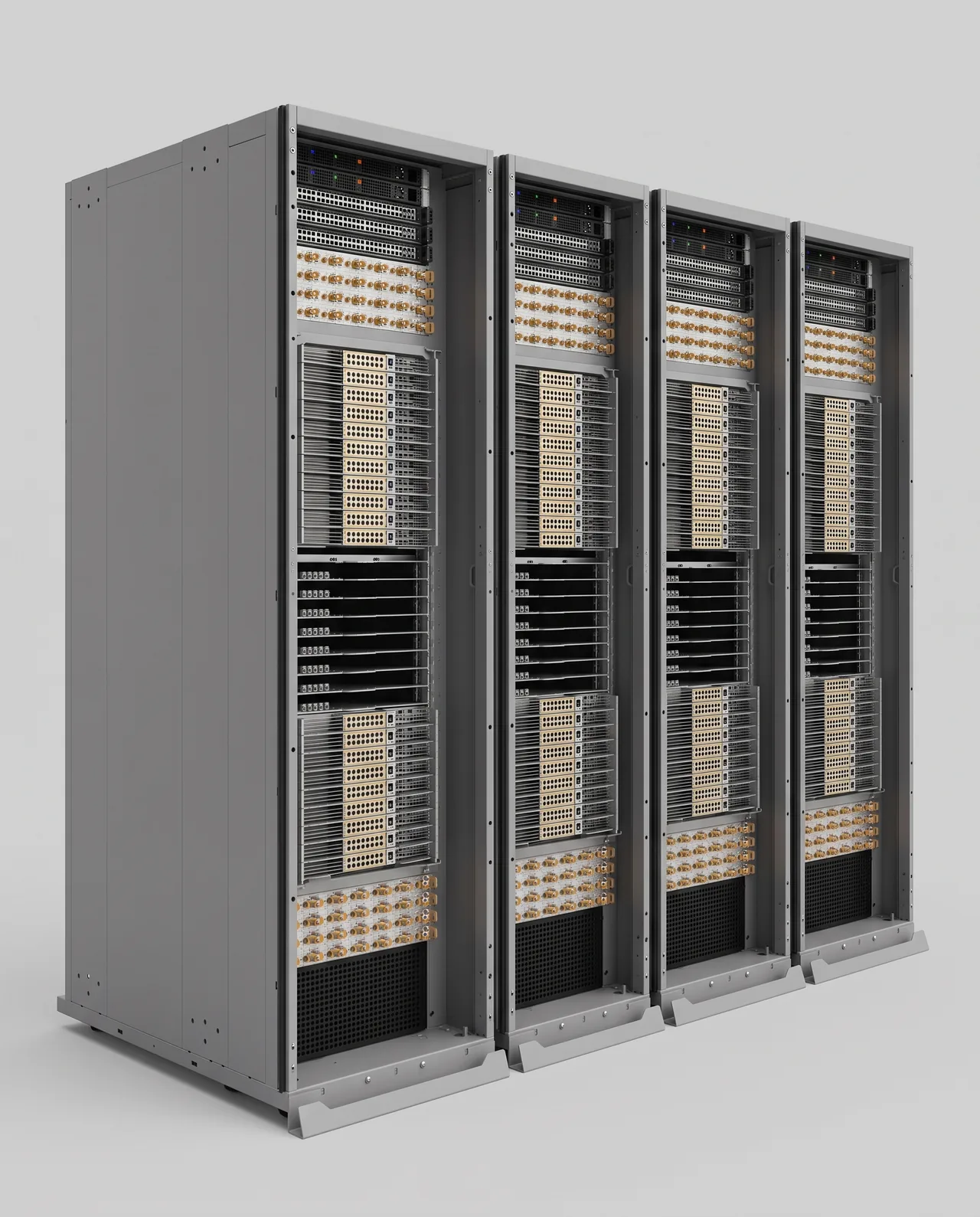

Dell TechnologiesDell PowerEdge XE9712 in IR9048 rack

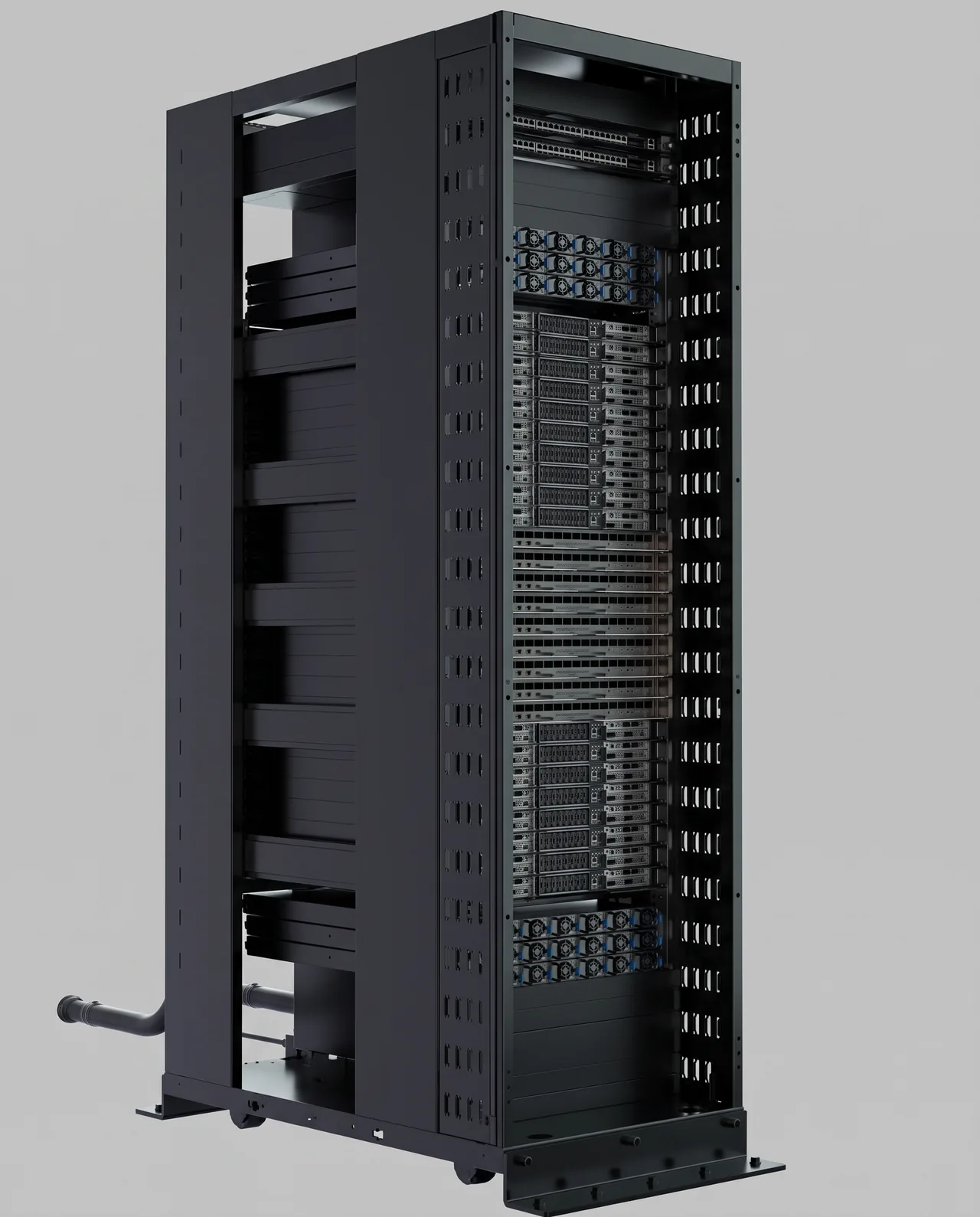

Giga ComputingGIGABYTE GIGAPOD AI DLC Rack NVIDIA GB200 NVL72 (DLB2-CB1)

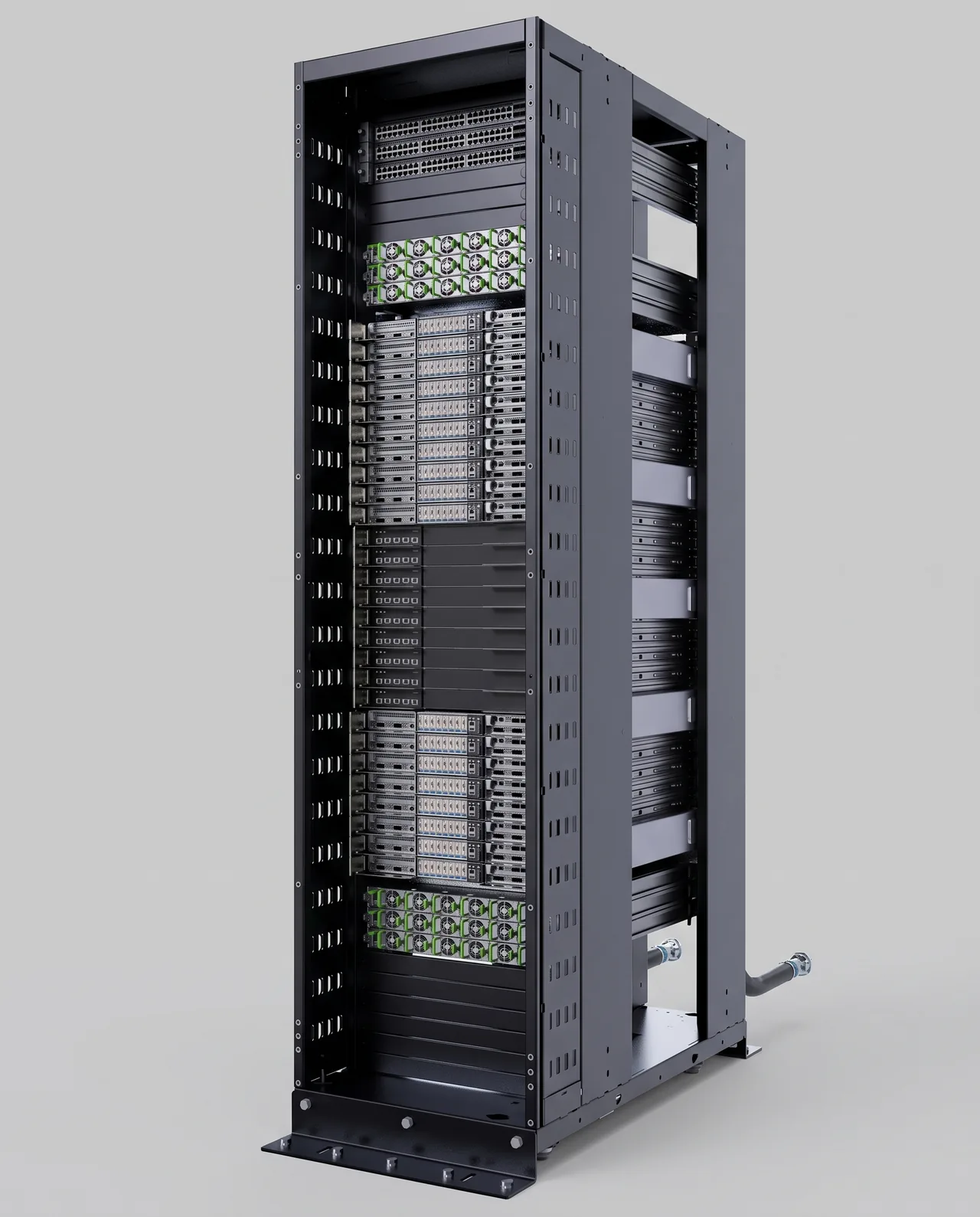

Giga ComputingGIGABYTE GIGAPOD AI DLC Rack NVIDIA GB300 NVL72 (DLB2-CB3)

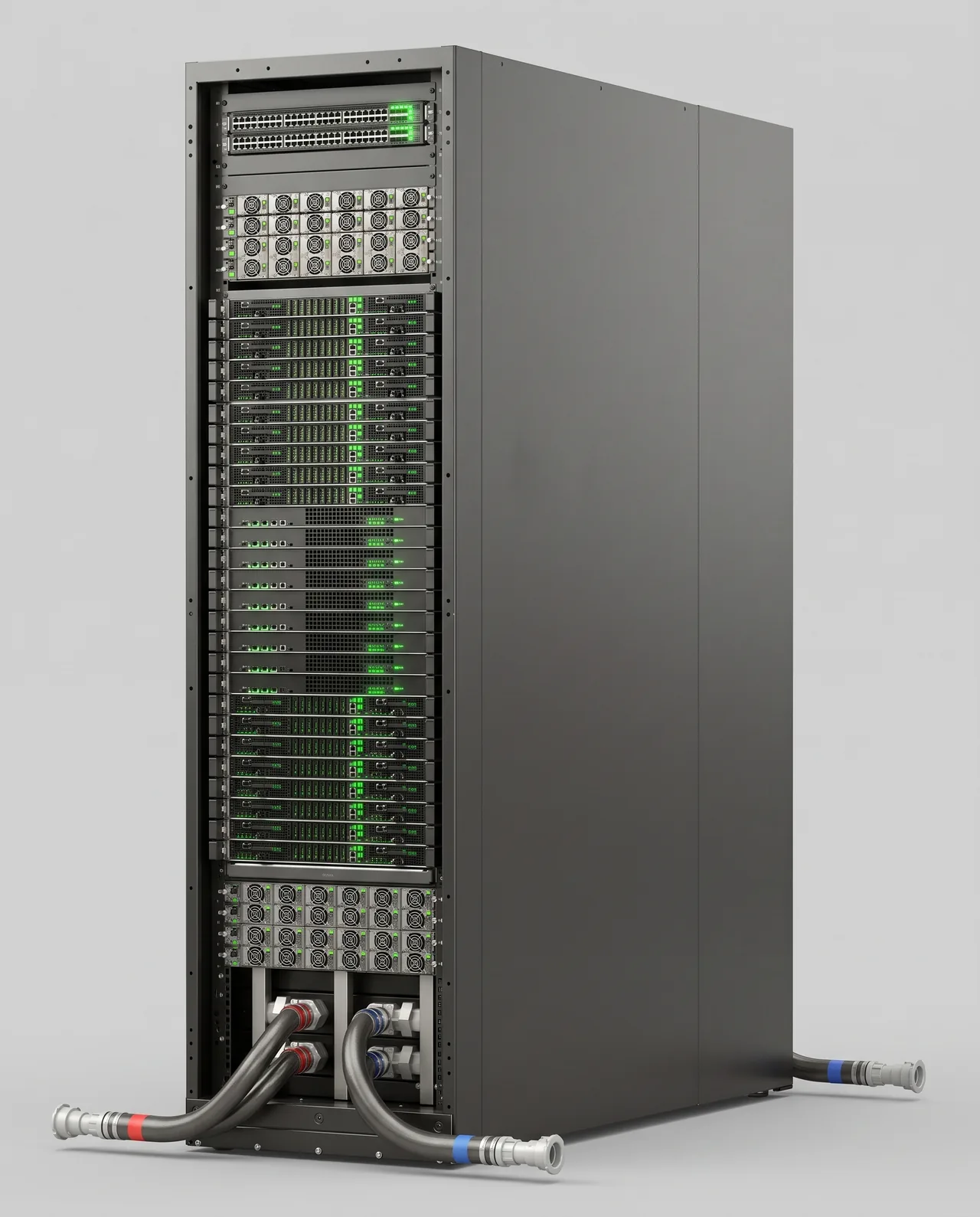

Hewlett Packard EnterpriseNVIDIA GB200 NVL72 by HPE

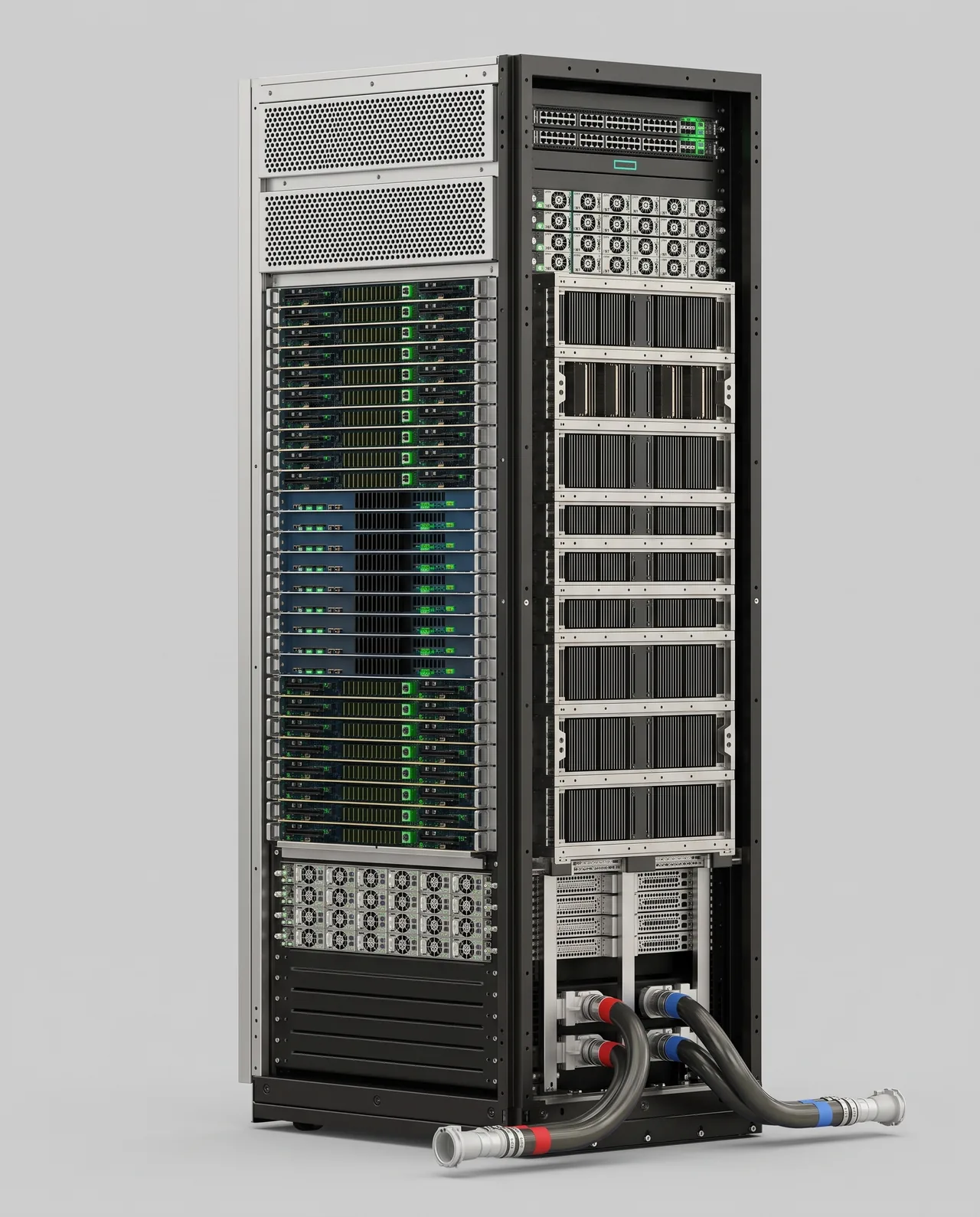

Hewlett Packard EnterpriseNVIDIA GB300 NVL72 by HPE

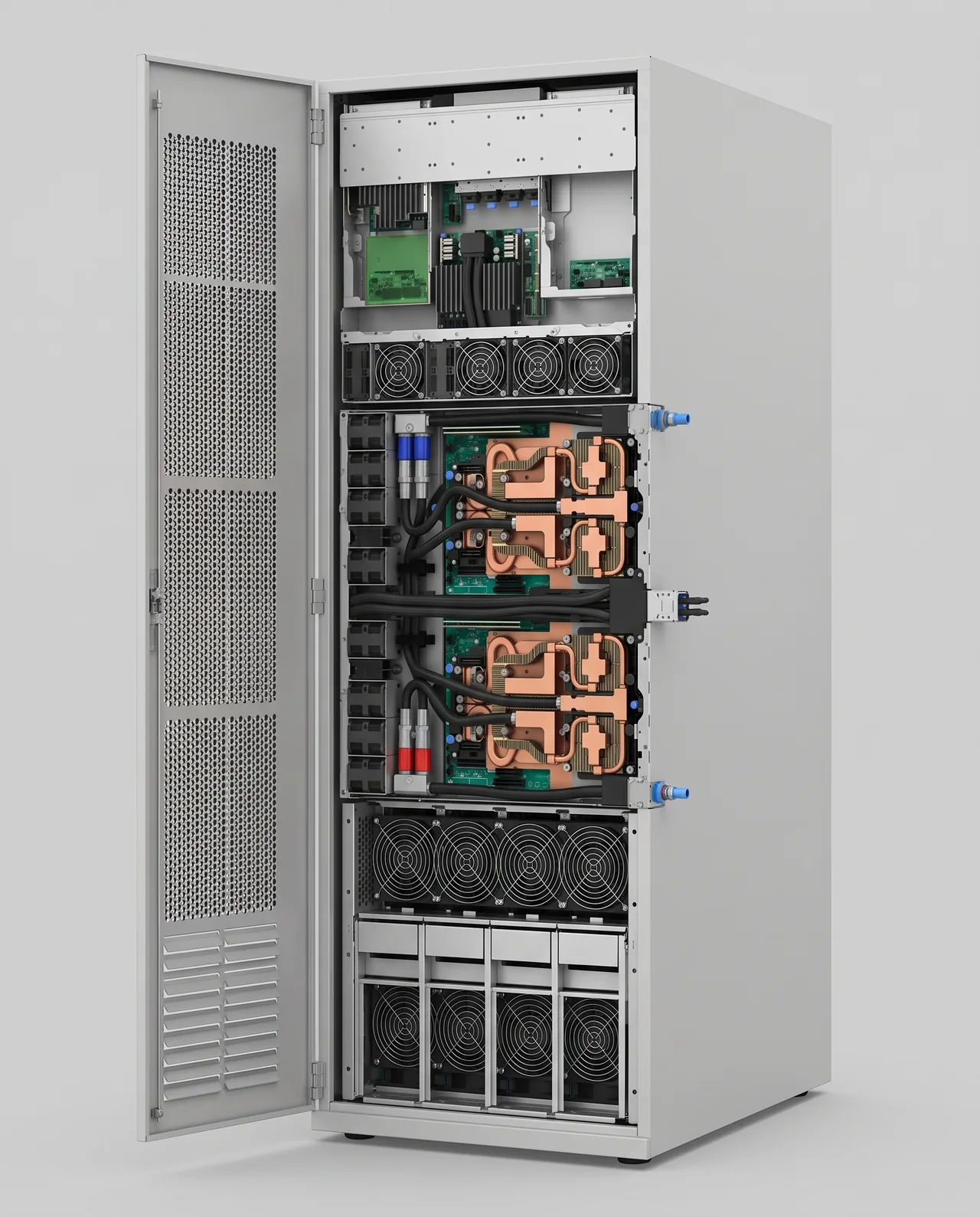

LenovoLenovo NVIDIA GB300 NVL72 Rack Scale AI (Type 7DJV)Renders, not photographs. Product images are generated to DC Atlas art direction from each manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is not reproduced. Where a manufacturer publishes no image of an individual model, the render follows another unit in the same range.
