Arista 7060X6-64PE

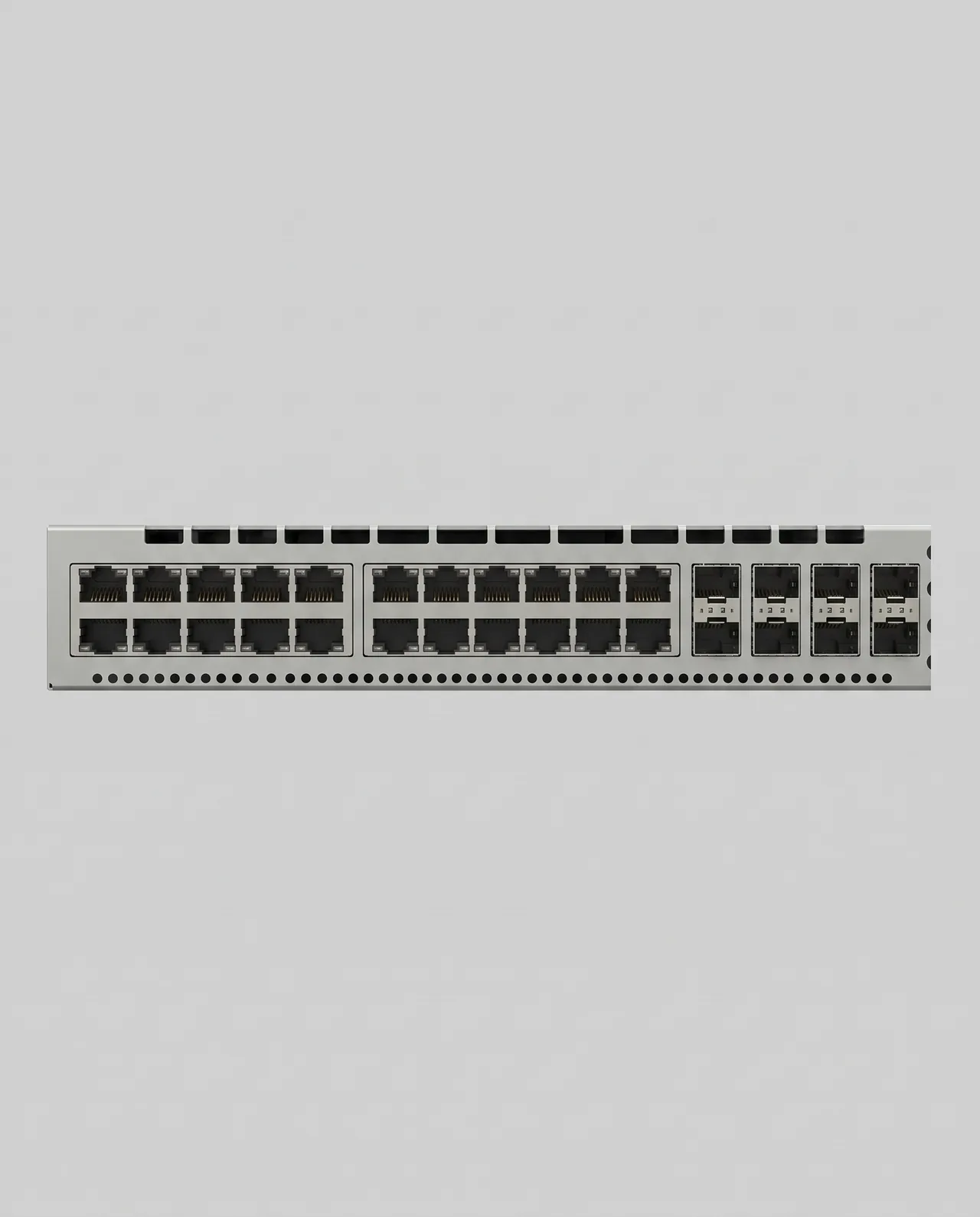

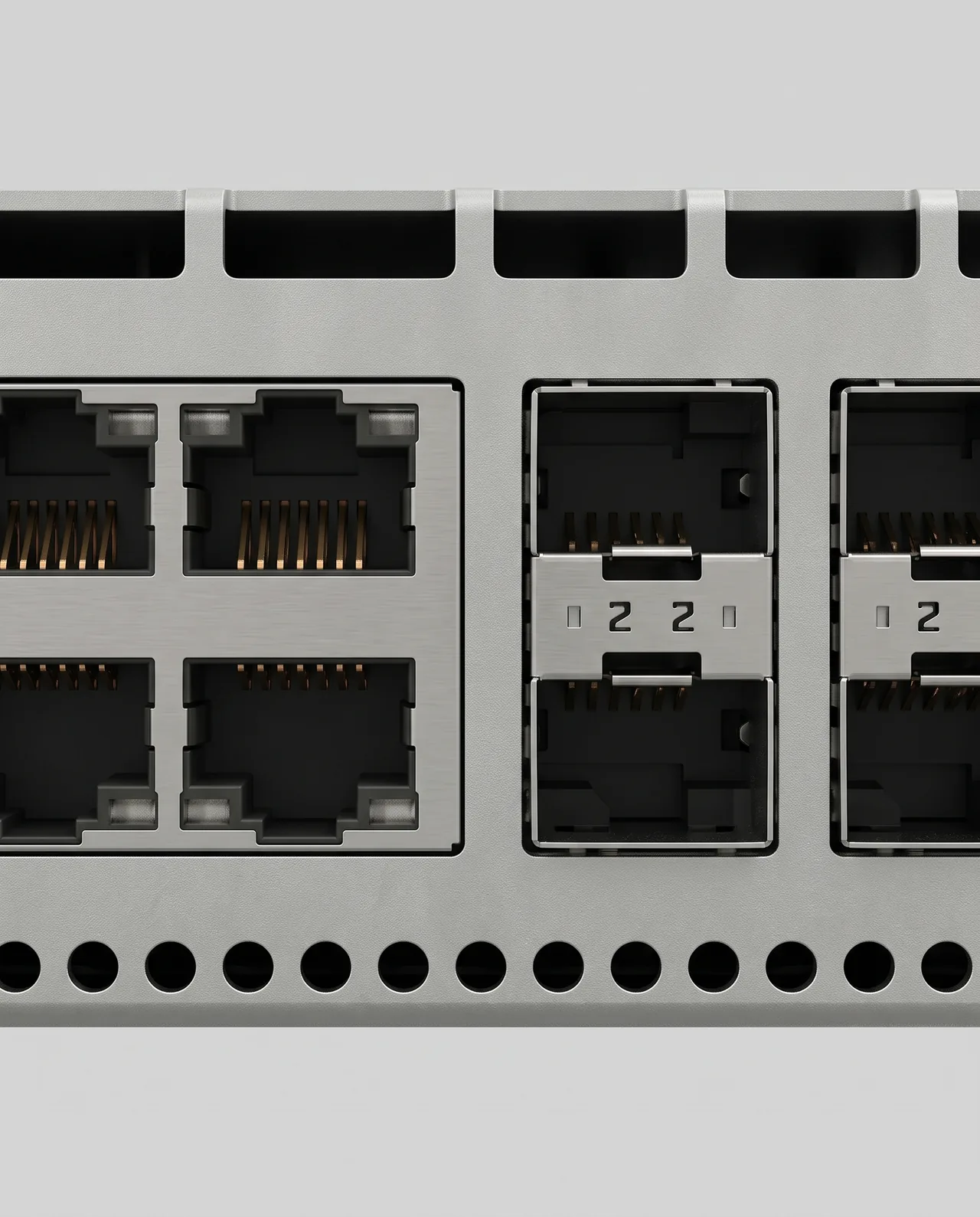

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
36 of 50 publishedClassification
- Platform type
- Fixed
Ports
- Breakout modes (primary ports)
- 2x400g
- Maximum logical ports
- 320
- Linear pluggable optics supported
- Yes
Port configuration
| Ports | Cage | Cage (as published) | Native speed per port (Gb/s) | Port role |
|---|---|---|---|---|
| 64 | Osfp | OSFP | 800 Gb/s | Primary data |
Maximum ports by speed
| Speed (Gb/s) | Maximum ports |
|---|---|
| 800 Gb/s | 64 |
| 400 Gb/s | 128 |
| 200 Gb/s | 256 |
| 100 Gb/s | 320 |
| 50 Gb/s | 320 |
Switching performance
- Switching capacity (one direction)
- 51.2 Tb/s
- Switching capacity (full duplex, both directions)
- 102.4 Tb/s
- Switching capacity (as published)
- Throughput (FDX) 51.2 (102.4) Tbps
- Forwarding rate
- 21.2 Bpps
- Forwarding rate basis
- Average packet size stated
- Forwarding rate: minimum average packet size
- 295 bytes
- Latency
- 700 ns
- Latency qualifier
- From lower bound
- Packet buffer
- 165 MB
- Buffer architecture
- Shared on chip
Silicon and software
- Switch ASIC disclosed
- Not named
- Network OS model
- Vendor nos only
- Network OS options
- Arista eos
- Minimum NOS version
- Minimum EOS 4.32.2
Power
- PSU redundancy (as published)
- 2 (1+1 redundant)
Power consumption
| Figure | Power (W) | Traffic load (%) | Ambient (°C) | Port population | Condition (as published) |
|---|---|---|---|---|---|
| Typical | 640 W | 50 % | 25 °C | Passive copper dac | Typical power consumption measured at 25C ambient with 50% load with DACs |
| Maximum | 2,218 W | 100 % | 46 °C | Optics high power | Max power consumption measured at 46C ambient with 100% load with high powered optics |
Physical and airflow
- Airflow direction
- Port to power
- Airflow (as published)
- Front to Rear
- Airflow options offered
- Port to power
- Cooling
- Air
- Rack units
- 2 RU
- Width
- 440 mm
- Depth
- 607 mm
- Height
- 87.9 mm
- Weight
- 20.86 kg
- Weight basis
- Not stated
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 40 °C
- Operating altitude, max
- 3,000 m
Ordering
Orderable configurations
| Part number | Description (as published) | Includes PSUs and fans | Airflow |
|---|---|---|---|
| DCS-7060X6-64PE-F | Arista 7060X6, 64x800GbE OSFP switch, front-to-rear air, 2xAC 2400W | Yes | Port to power |
| DCS-7060X6-64PE# | Arista 7060X6, 64x800GbE OSFP switch, no fans, no psu | No | — |
