Celestica

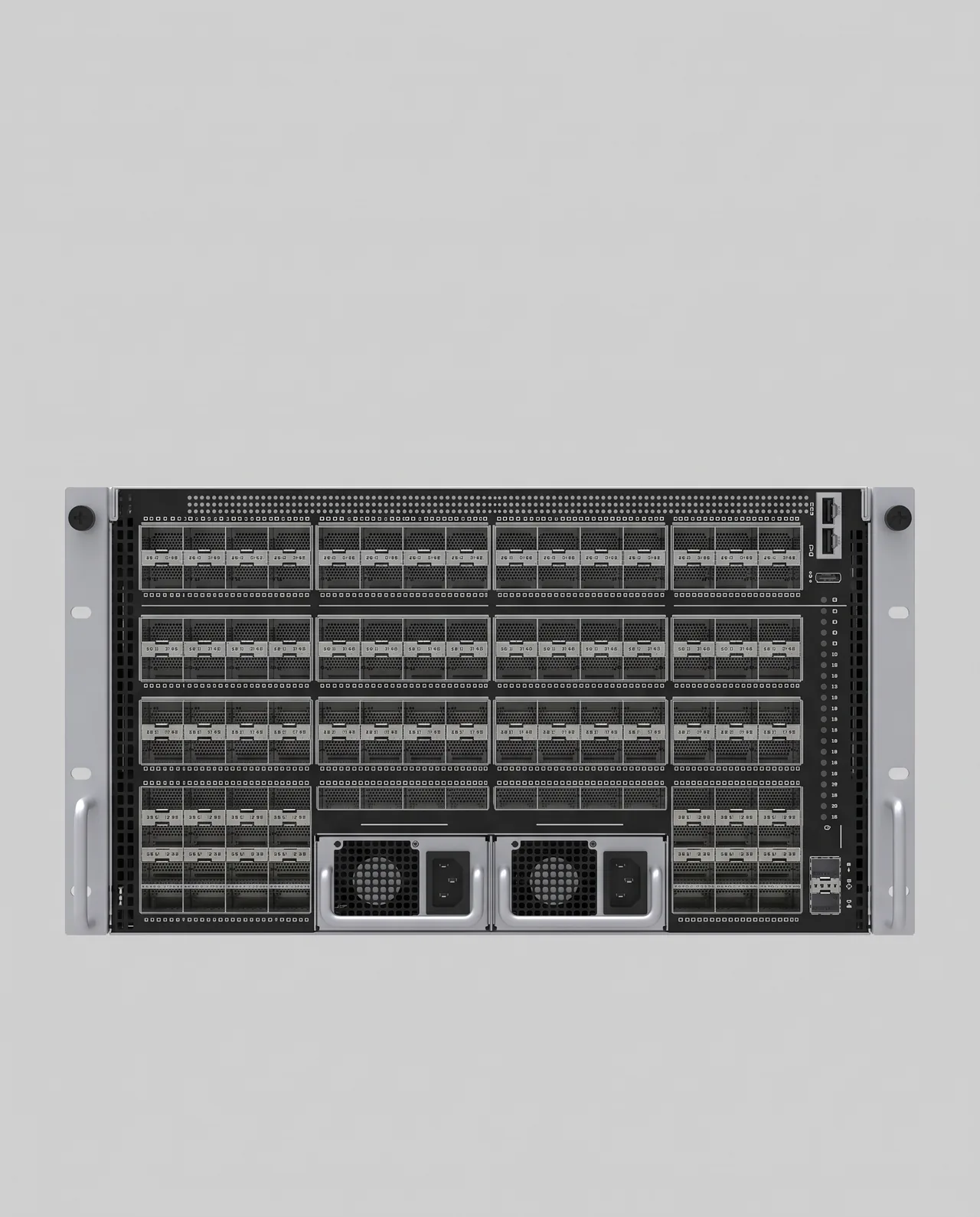

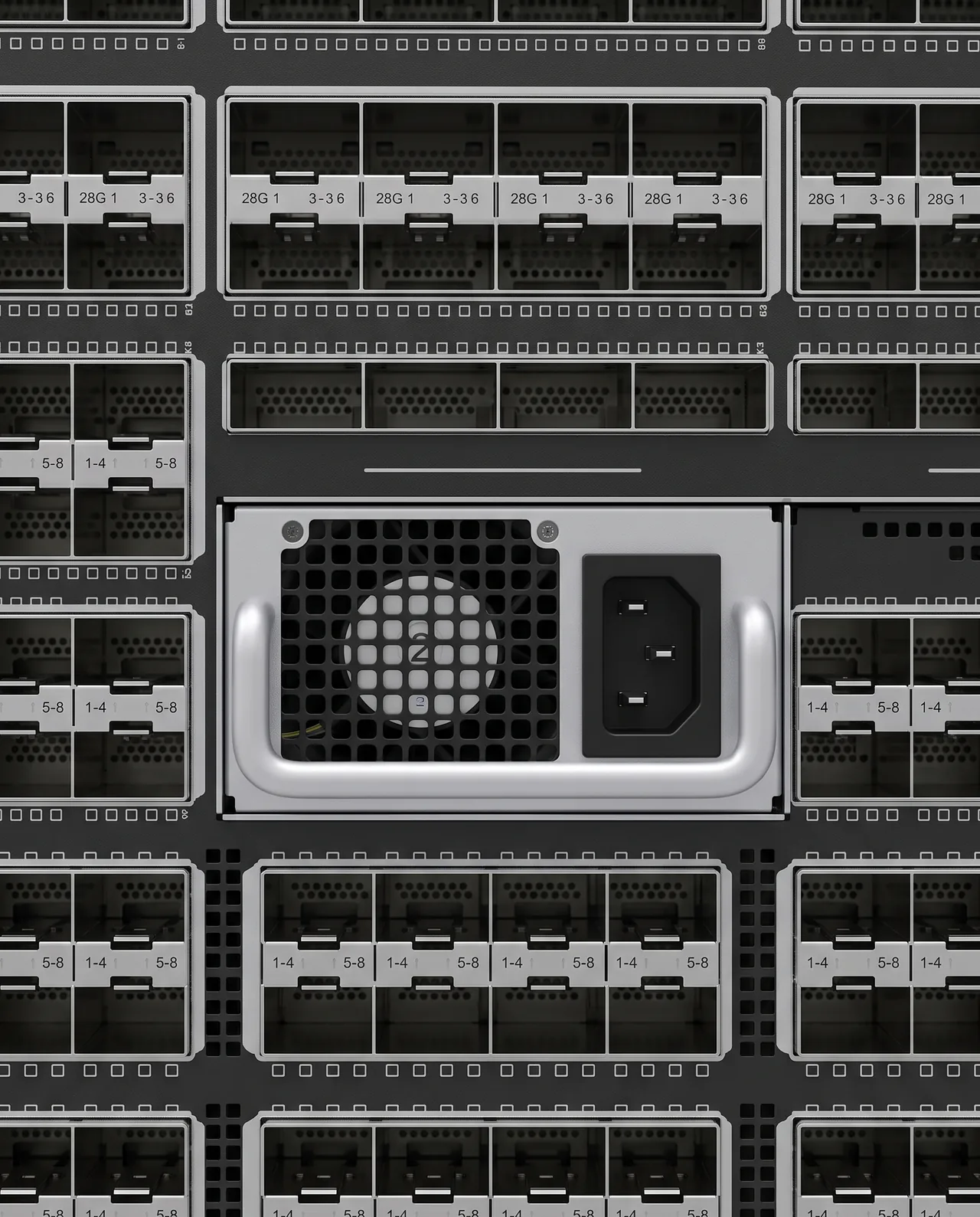

Celestica DS5000

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.

Specification

26 of 50 published
Classification
Platform type
Fixed
Ports

Port configuration

PortsCageCage (as published)Native speed per port (Gb/s)Port role
64OsfpOSFP800 Gb/sPrimary data
2Sfp28SFP2825 Gb/sAuxiliary data
Switching performance
Switching capacity (as published)
Switching Capability: 51.2Tbps IO Bandwidth
Silicon and software
Switch ASIC disclosed
Named by vendor
Switch ASIC
Broadcom tomahawk 5
Switch ASIC (as published)
Broadcom StrataXGS® Tomahawk® 5
Network OS model
Open networking onie
Network OS options
Sonic unspecified
ONIE
Yes
Power
PSU rated output (each)
2,000 W
PSU redundancy (as published)
2+2 redundant, hot swappable 2000W PSUs
Power input
AC 100 240v, Hvdc
Physical and airflow
Airflow direction
Port to power
Airflow (as published)
Front-to-back airflow
Airflow options offered
Port to power
Rack units
2 RU
Width
438.5 mm
Depth
750 mm
Height
87 mm
Weight
30 kg
Weight basis
Not stated
Environmental
Operating temperature, min
0 °C
Operating temperature, max
40 °C
MTBF
150,000 h
MTBF qualifier
Greater than bound
Ordering

Orderable configurations

Part numberDescription (as published)Airflow
R4028-F9002-A12U, 64x 800GbE, COMe 4C/32GB-DDR/128GB-SSD (F2B)Port to power

More Data Center Switches

6
Arista 7060X6-32PE — renderArista NetworksArista 7060X6-32PE
36 of 50 fieldsViewArista 7060X6-64PE — renderArista NetworksArista 7060X6-64PE
36 of 50 fieldsViewCisco N9332D-GX2B — renderCiscoCisco N9332D-GX2B
32 of 50 fieldsViewCisco N9364D-GX2A — renderCiscoCisco N9364D-GX2A
32 of 50 fieldsViewDell PowerSwitch Z9864F-ON — renderDell TechnologiesDell PowerSwitch Z9864F-ON

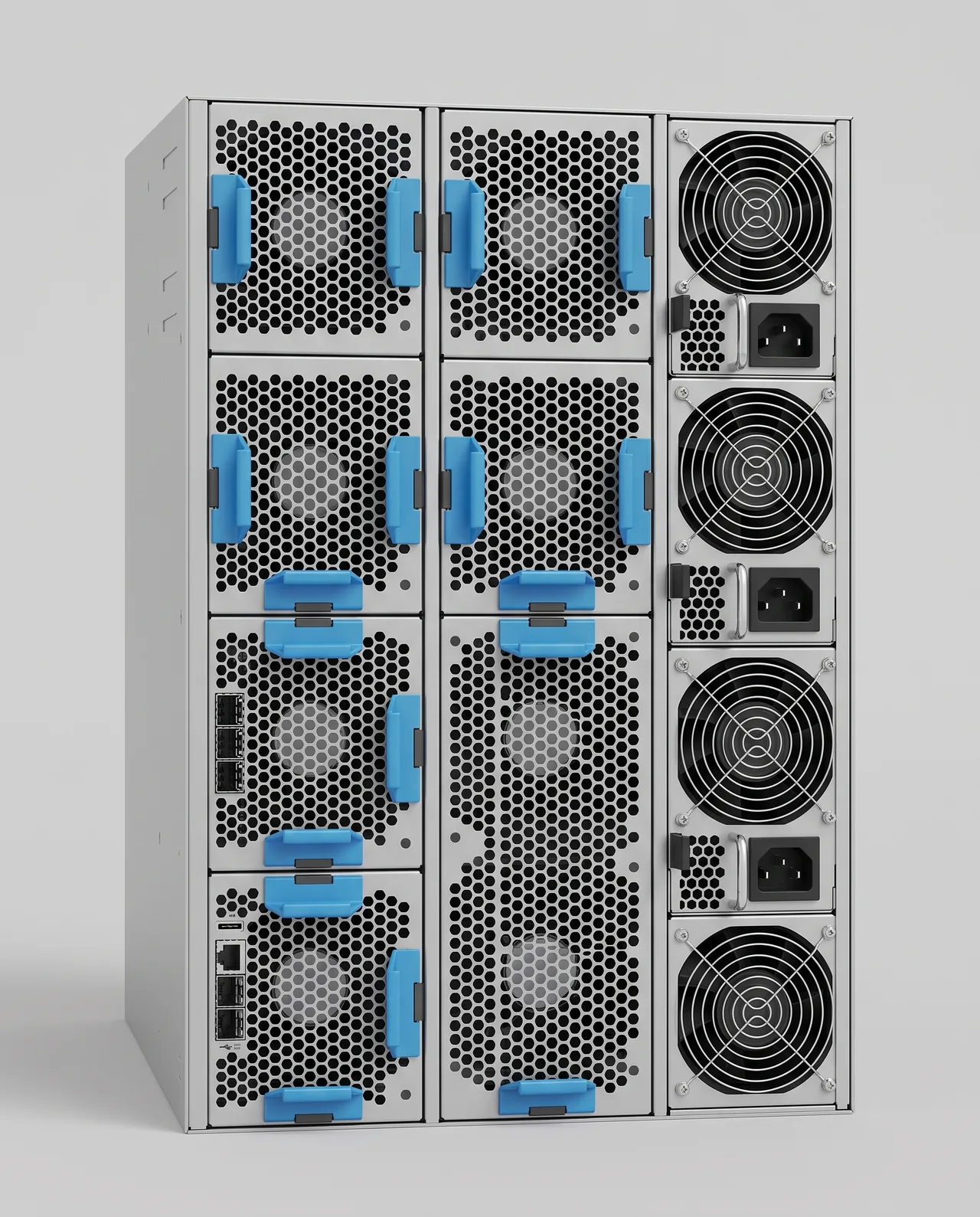

33 of 50 fieldsViewH3C S9827-64E — renderH3CH3C S9827-64E
