Dell PowerSwitch Z9864F-ON

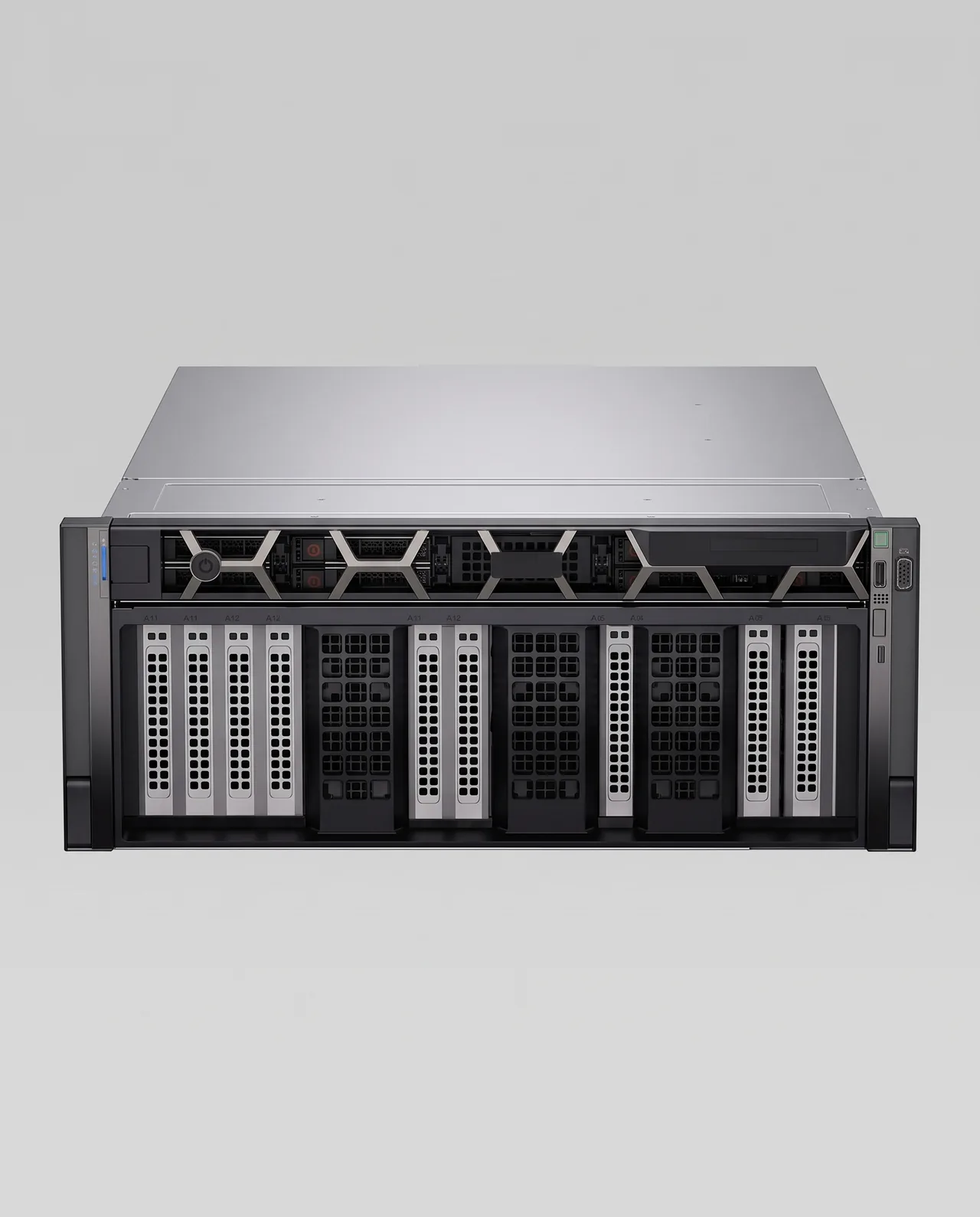

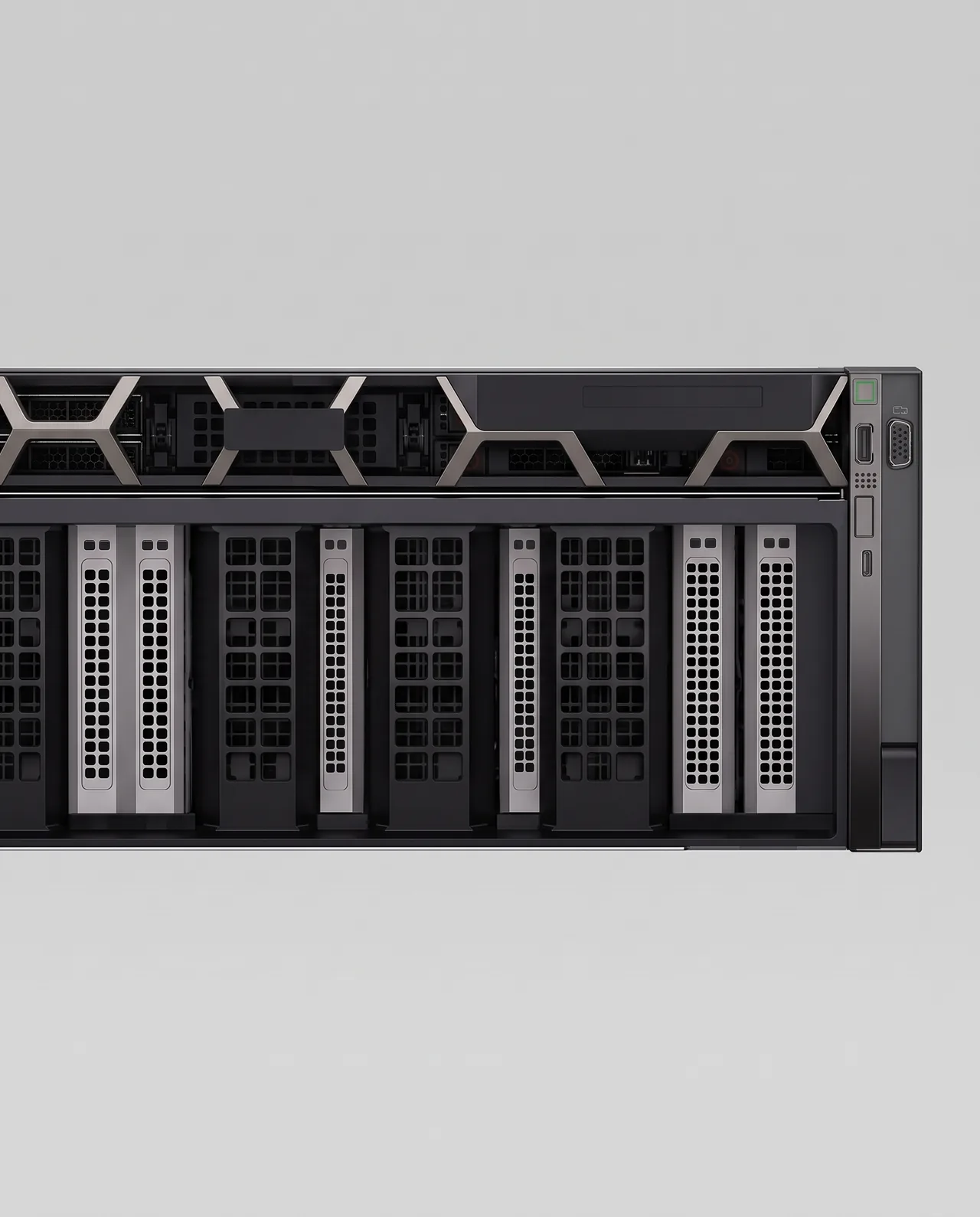

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
33 of 50 publishedClassification
- Platform type
- Fixed
Ports
- Maximum logical ports
- 320
Port configuration
| Ports | Cage | Cage (as published) | Native speed per port (Gb/s) | Port role |
|---|---|---|---|---|
| 64 | Osfp | OSFP112 | 800 Gb/s | Primary data |
| 2 | Sfp plus | SFP+ | 10 Gb/s | Auxiliary data |
Maximum ports by speed
| Speed (Gb/s) | Maximum ports |
|---|---|
| 800 Gb/s | 64 |
| 400 Gb/s | 128 |
| 200 Gb/s | 256 |
| 100 Gb/s | 320 |
Transceiver power limits
| Max module power (W) | Cage | Ports at that power | Airflow | At ambient up to (°C) | Condition (as published) |
|---|---|---|---|---|---|
| 18 W | Osfp | 64 | Port to power | — | Supports up to 64 ports of 18W optics when in IO/PSU airflow direction |
| 17 W | Osfp | 32 | Power to port | 35 °C | Supports up to 32 ports of 17W optics when in PSU/IO airflow direction operating at 35°C |
Switching performance
- Switching capacity (one direction)
- 51.2 Tb/s
- Switching capacity (full duplex, both directions)
- 102.4 Tb/s
- Switching capacity (as published)
- 102.4Tbps switching capacity (full duplex), 51.2Tbps non-blocking (half duplex)
- Forwarding rate
- 20.3 Bpps
- Forwarding rate basis
- Not stated
- Latency
- 700 ns
- Latency qualifier
- Less than bound
- Packet buffer
- 165.2 MB
- Buffer architecture
- On chip split per traffic manager
Silicon and software
- Switch ASIC disclosed
- Not named
- Network OS model
- Open networking onie
- Network OS options
- Dell enterprise sonic
- ONIE
- Yes
Power
- PSU redundancy (as published)
- Hot swappable redundant power (1+1 redundancy); Power redundancy is supported only in high power mode
- Power input
- AC 100 240v
Power consumption
| Figure | Power (W) | Traffic load (%) | Ambient (°C) | Port population | Condition (as published) |
|---|---|---|---|---|---|
| Typical | 1,500 W | 100 % | 25 °C | Passive copper dac | Typical power consumption measured at 25°C ambient with 100% load on all ports with DAC |
| Maximum utilised budget | 2,848 W | — | — | — | Max. utilized: 2848W |
Physical and airflow
- Airflow direction
- Port to power
- Airflow (as published)
- AC – IO Panel to PSU Airflow, 2 AC PSUs and 4 fans
- Airflow options offered
- Port to power, Power to port
- Rack units
- 2 RU
- Width
- 438.5 mm
- Depth
- 630 mm
- Height
- 87.3 mm
- Weight
- 25.3 kg
- Weight basis
- Fully populated
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 45 °C
Ordering
Orderable configurations
| Part number | Description (as published) | TAA |
|---|---|---|
| Z9864F-ON | Z9864F-ON, 64x 800GbE OSFP112, 2x SFP+, TAA Certified, with ONIE bootloader | Yes |
