Cisco N9332D-GX2B

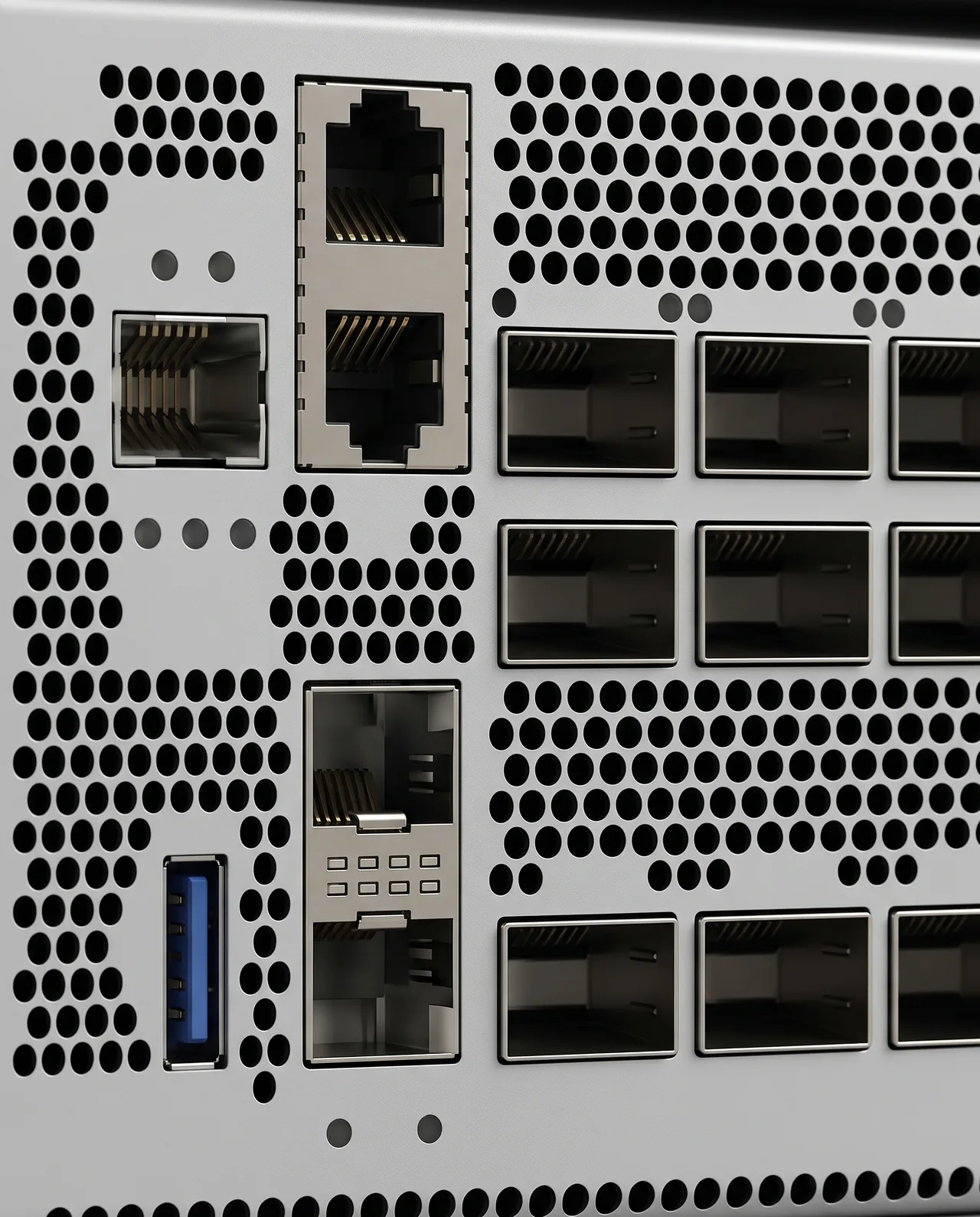

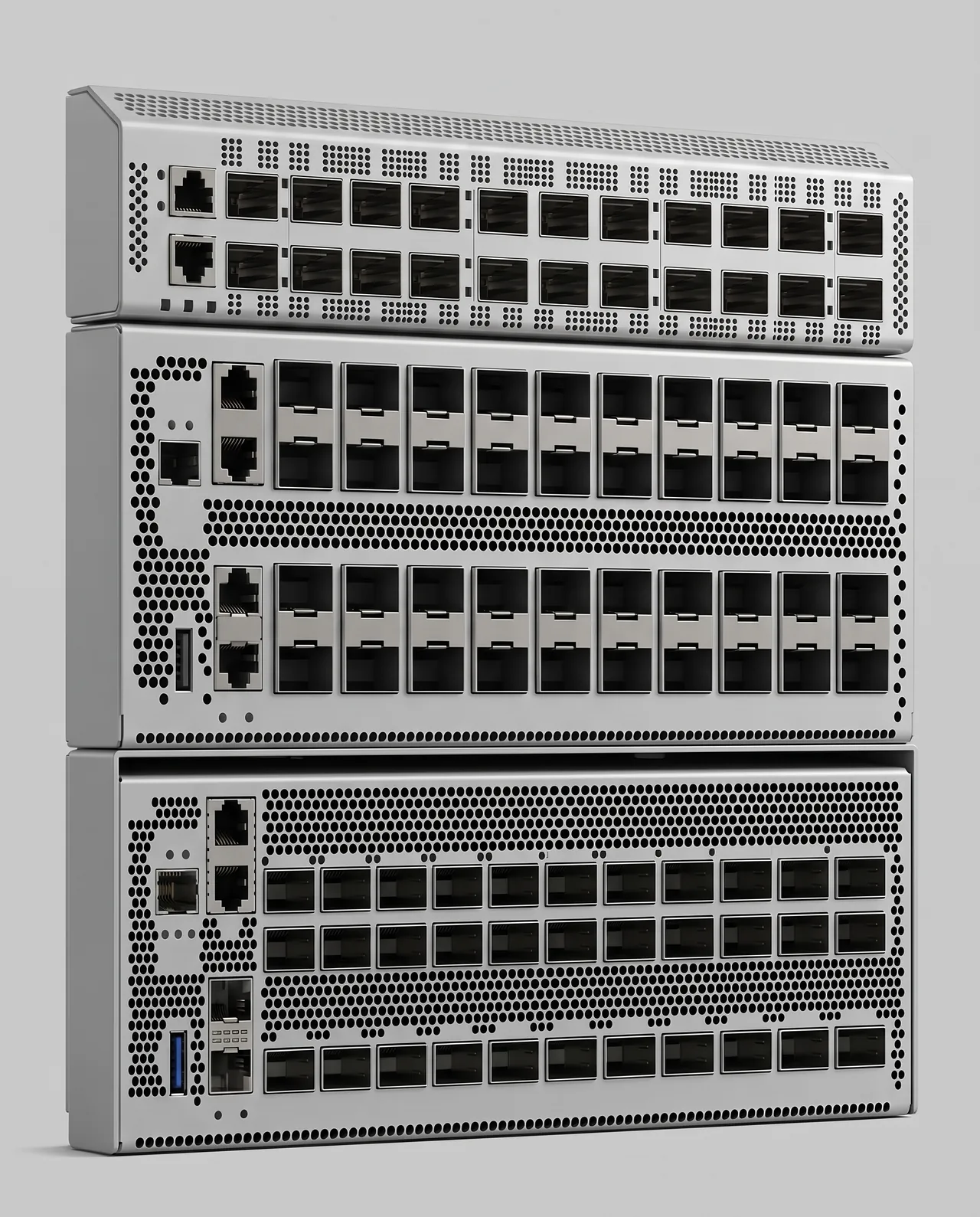

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
32 of 50 publishedClassification
- Platform type
- Fixed
Ports
- Breakout modes (primary ports)
- 4x10g, 4x25g, 4x50g, 4x100g, 2x200g
- MACsec-capable ports
- 8
Port configuration
| Ports | Cage | Cage (as published) | Native speed per port (Gb/s) | Port role |
|---|---|---|---|---|
| 32 | Qsfp dd | QSFP-DD | 400 Gb/s | Primary data |
| 2 | Sfp plus | SFP+ | 10 Gb/s | Auxiliary data |
Switching performance
- Switching capacity (as published)
- 25.6 Tbps of bandwidth
- Forwarding rate
- 4.17 Bpps
- Forwarding rate basis
- Not stated
- Packet buffer
- 120 MB
- Buffer architecture
- Not stated
Silicon and software
- Switch ASIC disclosed
- Not named
- Network OS model
- Vendor nos only
- Network OS options
- Cisco nx os, Cisco aci
Power
- PSU rated output (each)
- 1,500 W
- PSU redundancy (as published)
- Hot-swappable power-supply units (PSUs) with 1+1 redundancy
- Power input
- AC 100 240v
Power consumption
| Figure | Power (W) | Port population | Condition (as published) |
|---|---|---|---|
| Typical | 638 W | Not stated | Typical power: 638 W |
| Maximum | 1,442 W | Not stated | Maximum power: 1442 W |
Physical and airflow
- Airflow direction
- Port to power
- Airflow (as published)
- Port-side intake
- Airflow options offered
- Port to power, Power to port
- Rack units
- 1 RU
- Width
- 439 mm
- Depth
- 608 mm
- Height
- 44 mm
- Weight
- 12.7 kg
- Weight basis
- Without psus and fans
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 40 °C
- Operating altitude, max
- 4,000 m
- MTBF
- 211,310 h
- MTBF qualifier
- Point value
Acoustics
| Quantity | Level (dB) | At fan speed (%) | Condition (as published) |
|---|---|---|---|
| Sound pressure unqualified | 71.1 dB | 50 % | 71.1 dBA at 50% fan speed |
| Sound pressure unqualified | 81.2 dB | 70 % | 81.2 dBA at 70% fan speed |
| Sound pressure unqualified | 88 dB | 100 % | 88 dBA at 100% fan speed |
Ordering
Orderable configurations
| Part number | Description (as published) |
|---|---|
| N9K-C9332D-GX2B | Cisco N9332D-GX2B Switch with 32p 400/100-Gbps QSFP-DD ports and 2p 1/10 SFP+ ports (32GB memory) |
