H3C

H3C S9827-64E

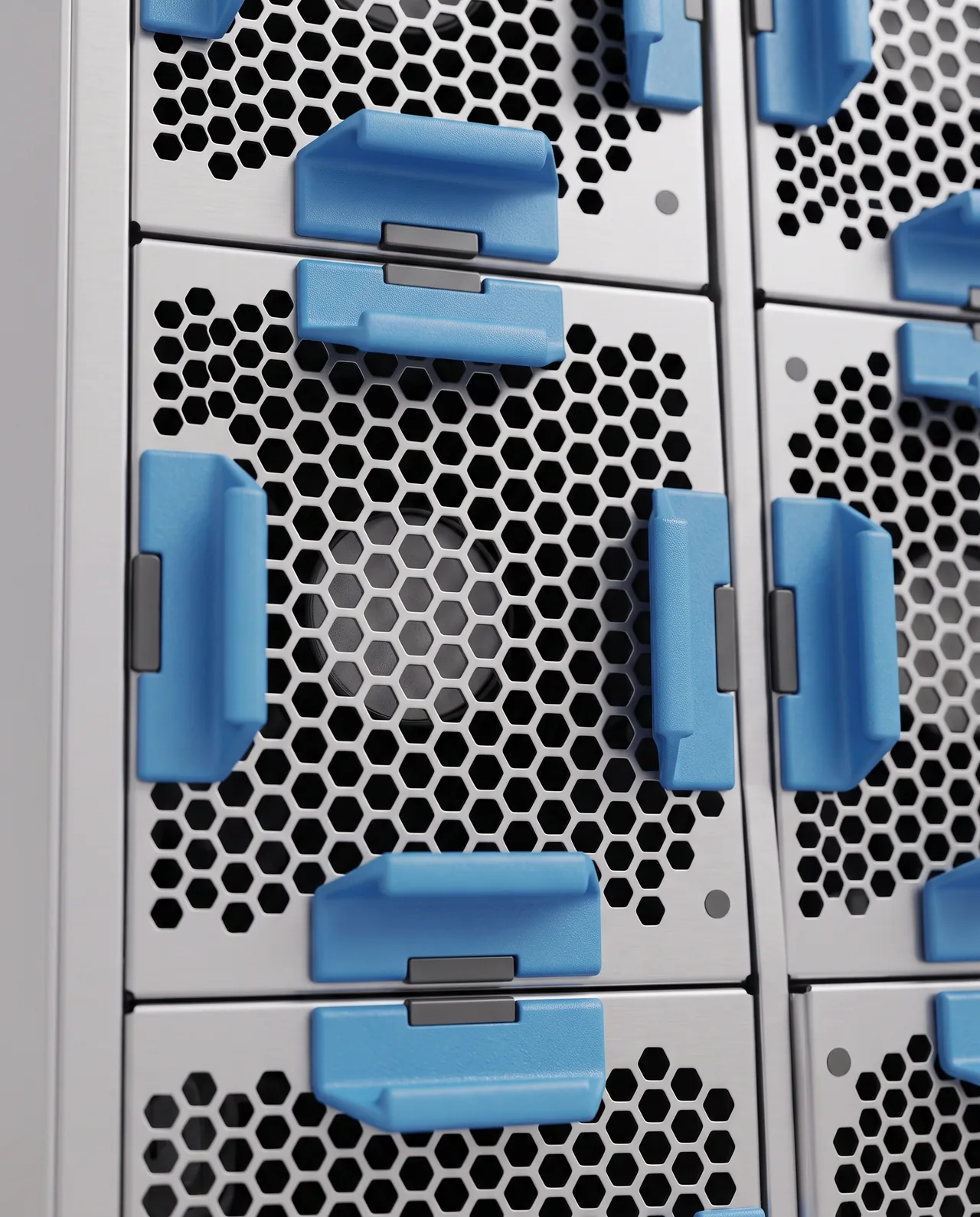

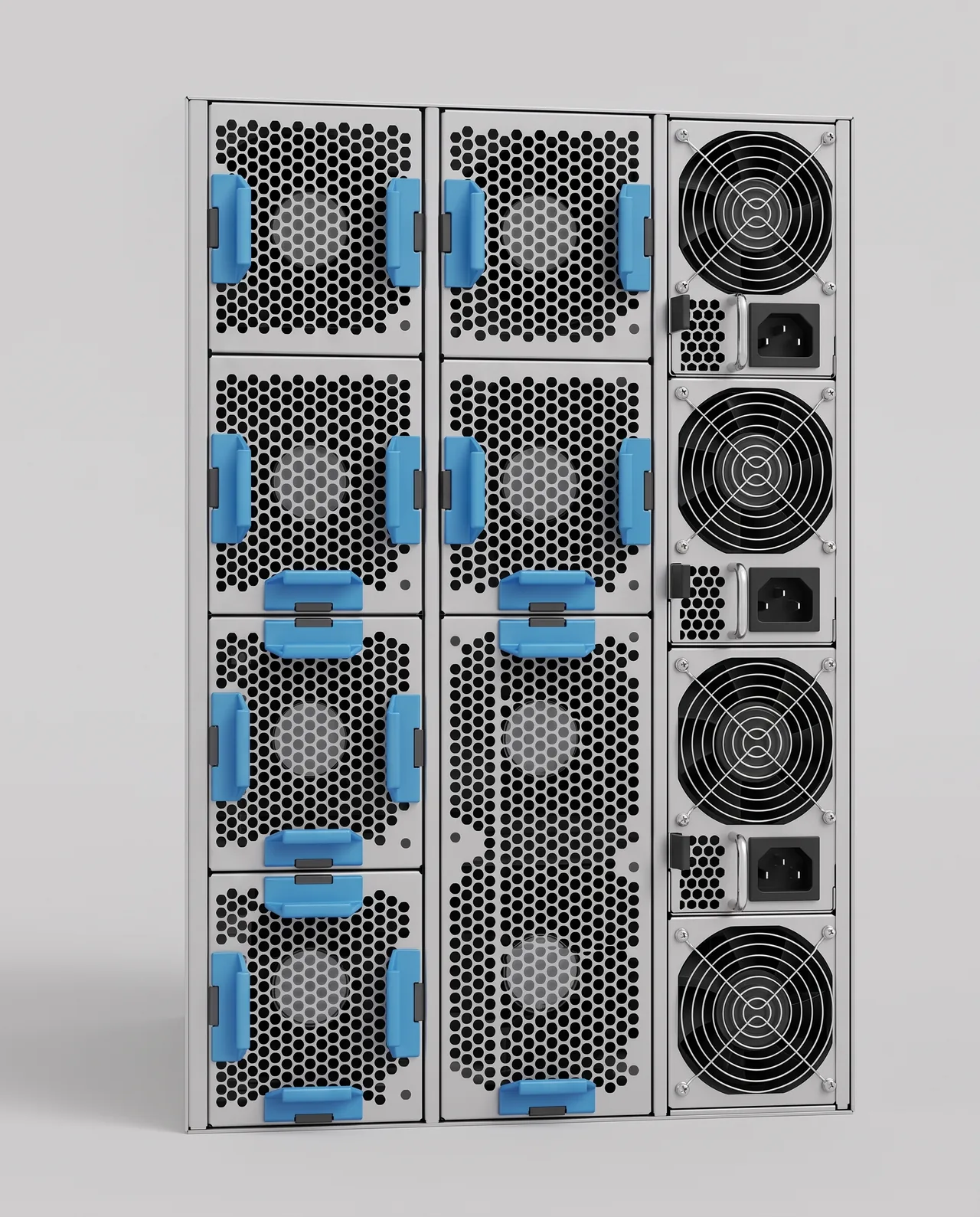

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.

Specification

27 of 50 published
Classification
Platform type
Fixed
Ports
Breakout modes (primary ports)
2x400g, 4x200g
Linear pluggable optics supported
Yes

Port configuration

PortsCageCage (as published)Native speed per port (Gb/s)Port role
64Qsfp dd800QSFP-DD800800 Gb/sPrimary data
Switching performance
Switching capacity (as published)
Switching capacity 102.4Tbps
Forwarding rate
21.1 Bpps
Forwarding rate basis
Not stated
Latency
960 ns
Latency qualifier
Point value
Packet buffer
165.2 MB
Buffer architecture
Not stated
Silicon and software
Switch ASIC disclosed
Not named
Network OS model
Not stated
Power
PSU redundancy (as published)
1+1 power redundancy
Power input
AC 100 240v, Hvdc

Power consumption

FigurePower (W)Port populationCondition (as published)
Idle or static247 WNot statedStatic Power Consumption 2 AC:247W
Typical724 WNot statedTypical Power Consumption 2 AC:724W
Physical and airflow
Airflow direction
Port to power
Airflow (as published)
From front to rear
Airflow options offered
Port to power
Rack units
2 RU
Width
440 mm
Depth
760 mm
Height
88.1 mm
Weight
24.5 kg
Weight basis
Fully populated
Environmental
Operating temperature, min
0 °C
Operating temperature, max
40 °C
