NVIDIA

NVIDIA Spectrum-4 SN5600D

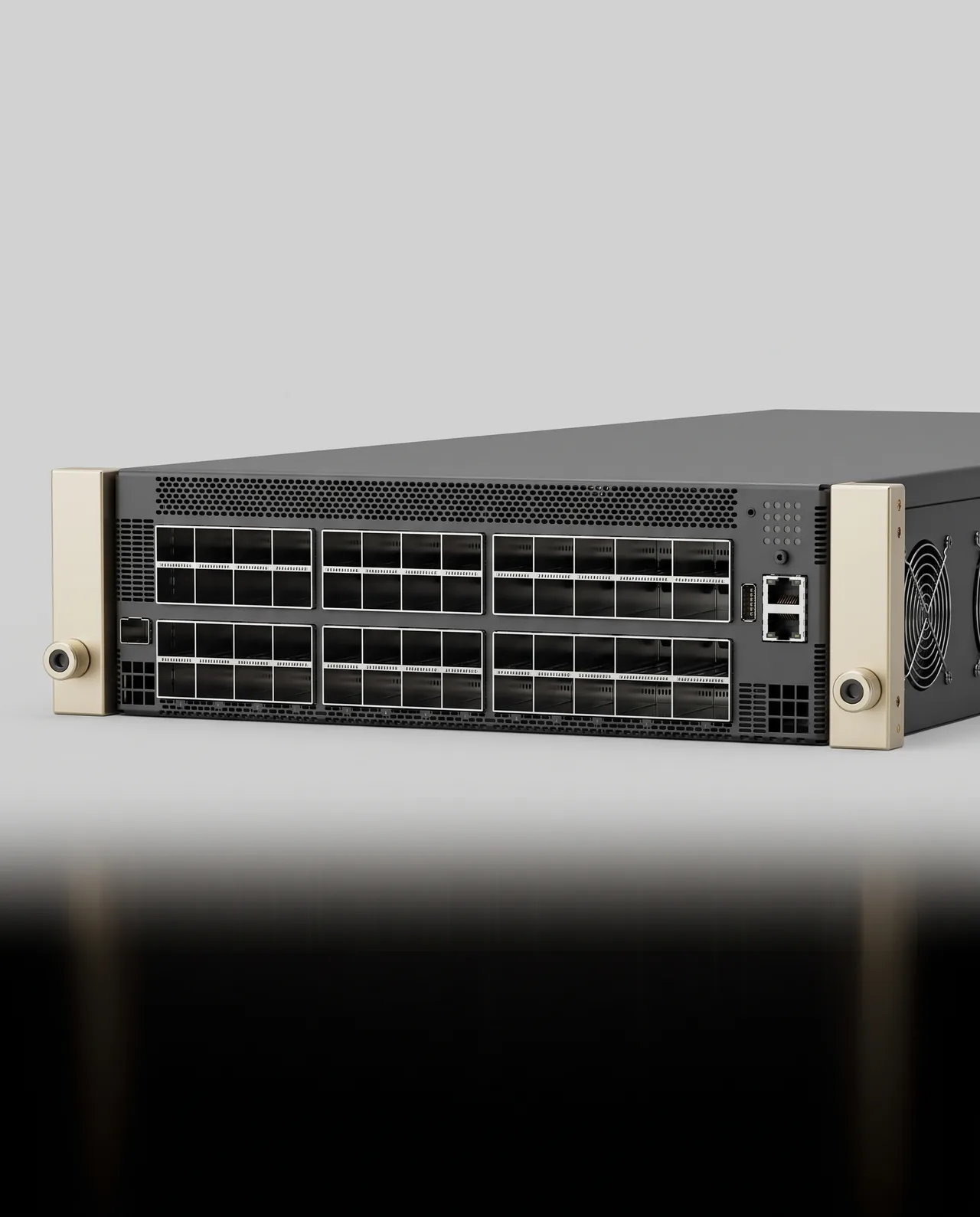

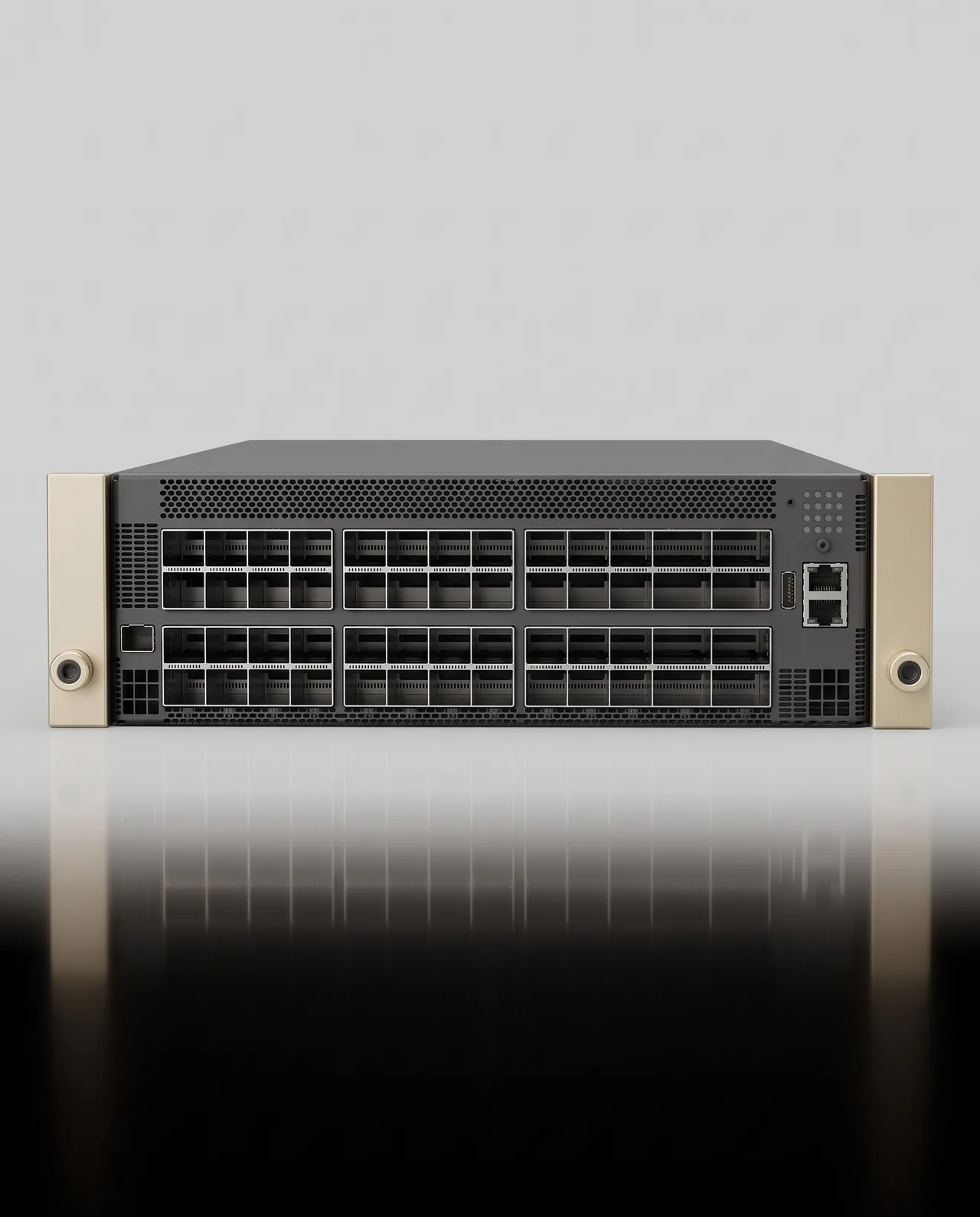

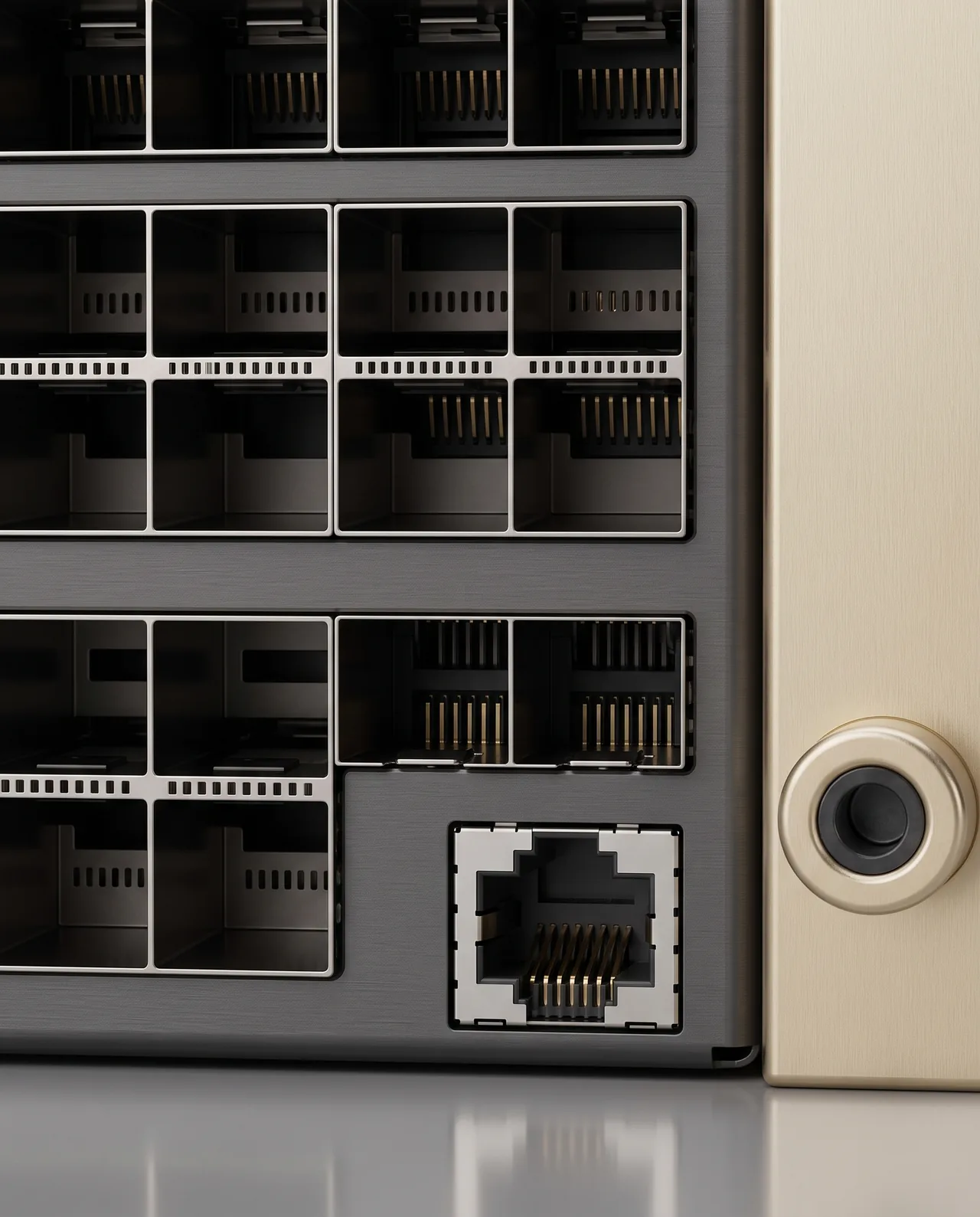

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.

Specification

23 of 50 published
Classification
Platform type
Fixed
Ports

Port configuration

PortsCageCage (as published)Native speed per port (Gb/s)Port role
64OsfpOSFP800 Gb/sPrimary data
1Sfp28SFP2825 Gb/sAuxiliary data
Switching performance
Switching capacity (as published)
Throughput 51.2 Tbps
Silicon and software
Switch ASIC disclosed
Named by vendor
Switch ASIC
Nvidia spectrum 4
Switch ASIC (as published)
NVIDIA Spectrum®-4
Network OS model
Vendor nos only
Network OS options
Nvidia cumulus linux
Power
Power input
DC 48v busbar

Power consumption

FigurePower (W)Port populationCondition (as published)
Typical940 WPassive copper dacTypical power with passive cables (ATIS): 940W
Physical and airflow
Airflow direction
Port to power
Airflow (as published)
Connector-to-Power Airflow
Rack units
2 RU
Rack mount
Nvidia mgx
Width
438 mm
Depth
781 mm
Height
88 mm
Weight
18.5 kg
Weight basis
Not stated
Environmental
Operating temperature, min
0 °C
Operating temperature, max
35 °C
Operating altitude, max
3,050 m
Ordering

Orderable configurations

Part numberDescription (as published)Airflow
920-9N42F-00RI-KC0NVIDIA Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 1 SFP28 port, 48VDC Busbar, x86 CPU, Secure-boot, standard depth, Connector-to-Power Airflow, MGX Mount, Mounting Rail-KitPort to power
