NVIDIA Spectrum-4 SN5610

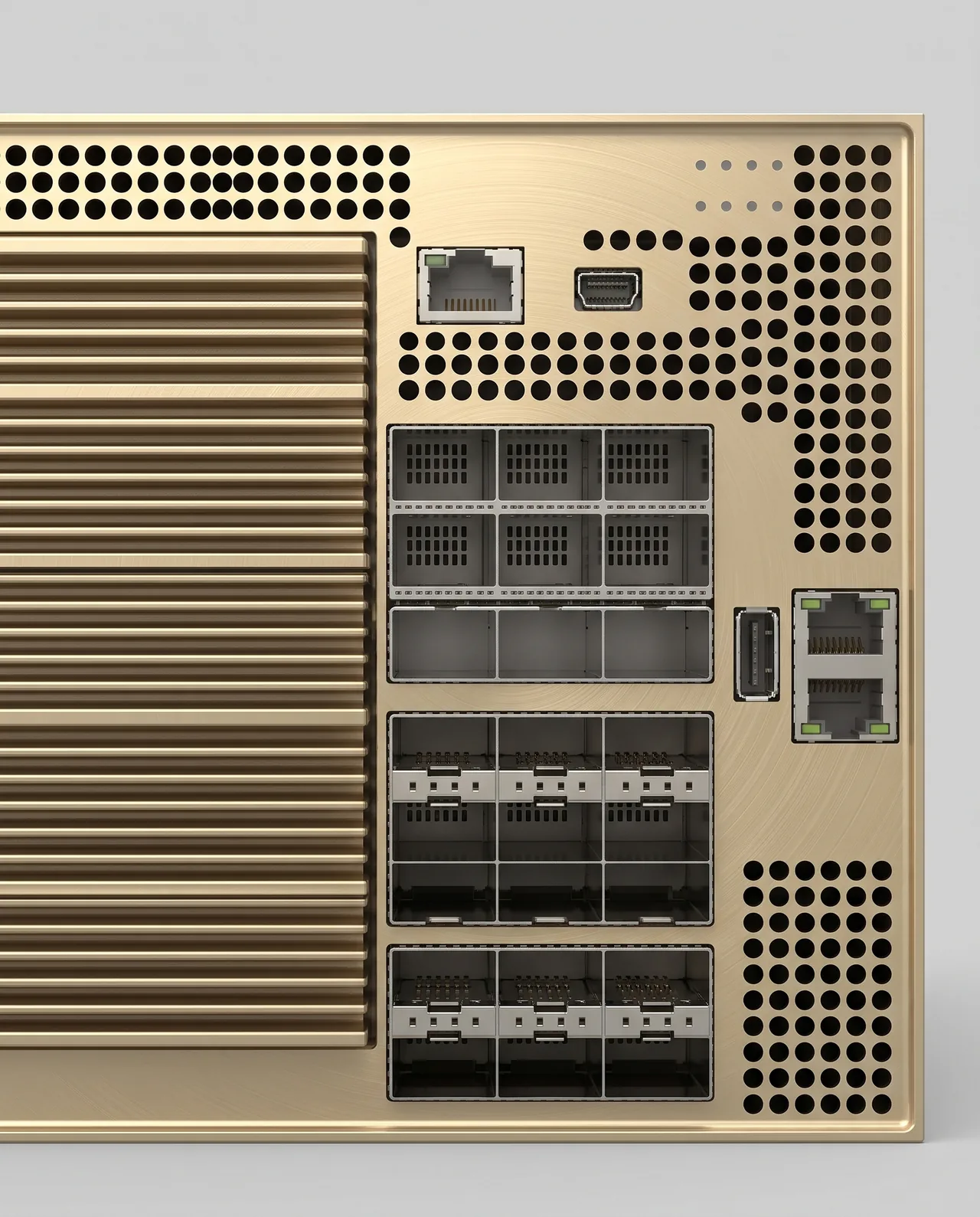

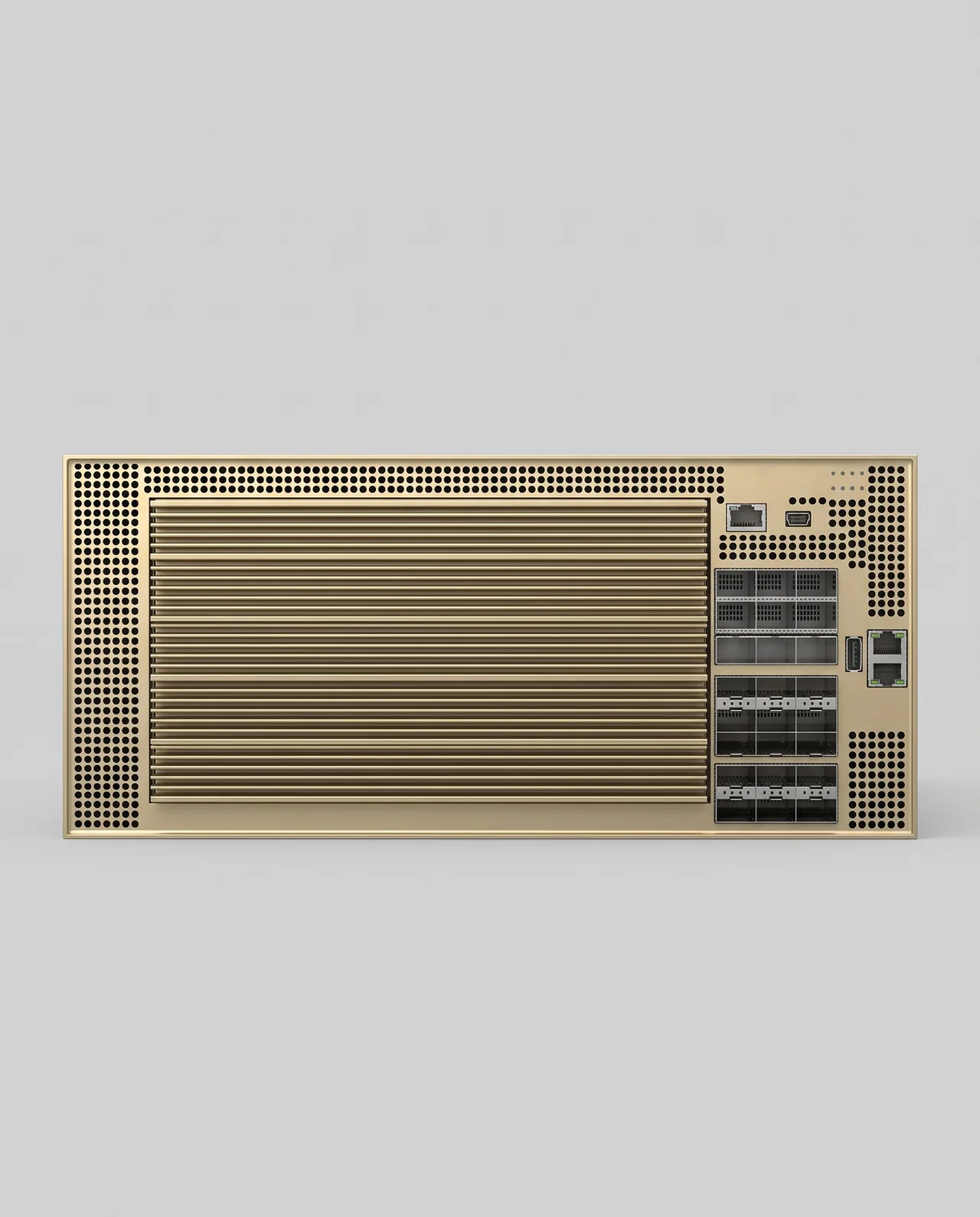

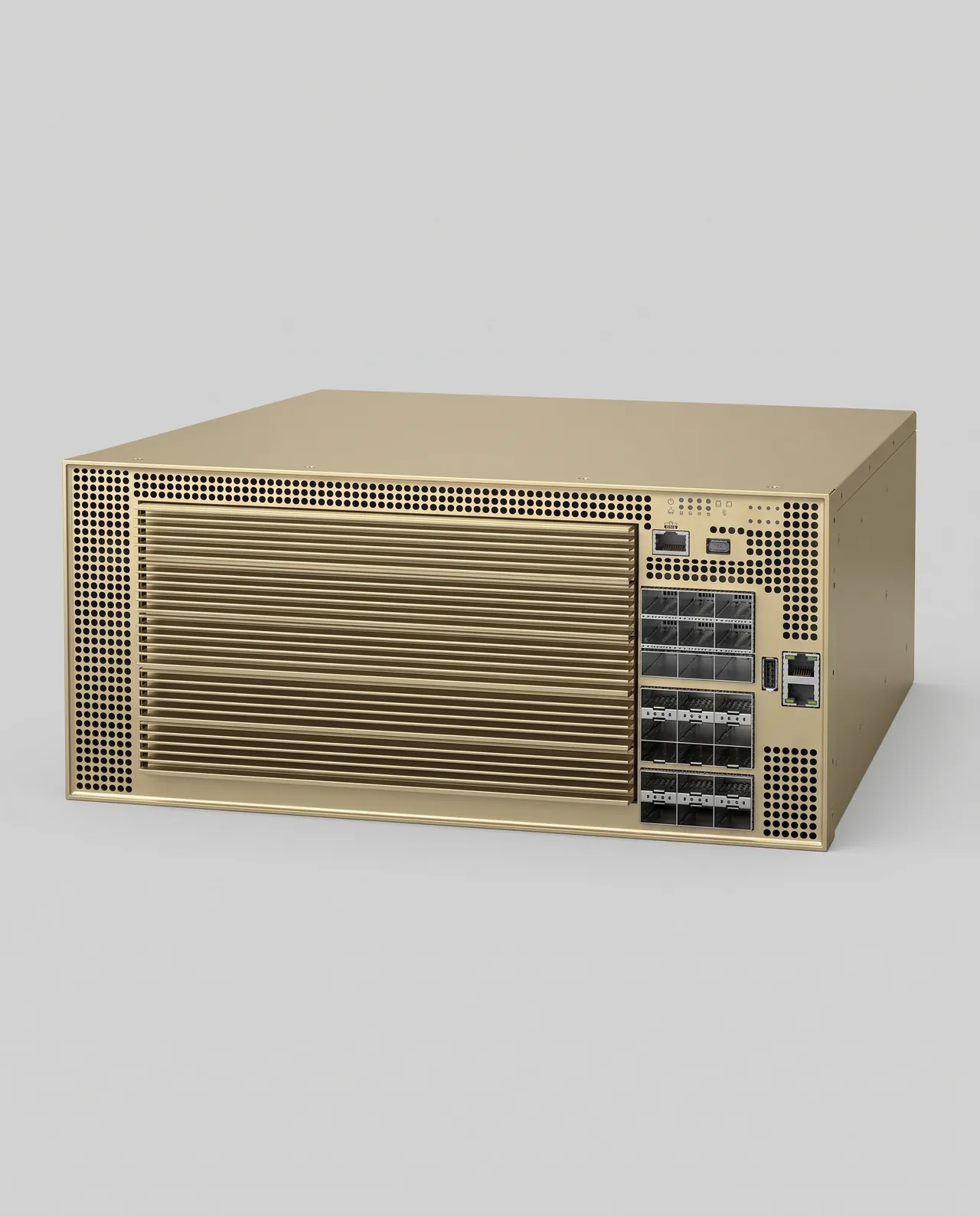

Renders, not photographs. Produced to DC Atlas art direction from the manufacturer’s own product image, so form, panel layout and controls follow the real machine. Vendor branding is deliberately not reproduced.
Specification
23 of 50 publishedClassification
- Platform type
- Fixed
Ports
Port configuration
| Ports | Cage | Cage (as published) | Native speed per port (Gb/s) | Port role |
|---|---|---|---|---|
| 64 | Osfp | OSFP | 800 Gb/s | Primary data |
| 2 | Sfp28 | SFP28 | 25 Gb/s | Auxiliary data |
Switching performance
- Switching capacity (as published)
- Throughput 51.2 Tbps
Silicon and software
- Switch ASIC disclosed
- Named by vendor
- Switch ASIC
- Nvidia spectrum 4
- Switch ASIC (as published)
- NVIDIA Spectrum®-4
- Network OS model
- Vendor nos only
- Network OS options
- Nvidia cumulus linux
Power
- Power input
- AC 200 240v high line only
Power consumption
| Figure | Power (W) | Port population | Condition (as published) |
|---|---|---|---|
| Typical | 900 W | Passive copper dac | Typical power with passive cables (ATIS) 900W |
| Typical | 2,080 W | Optics all ports unspecified | Typical power with 64 optical modules: 2.08KW |
Physical and airflow
- Airflow direction
- Port to power
- Airflow (as published)
- Connector-to-Power Airflow
- Rack units
- 2 RU
- Rack mount
- Eia 19in
- Width
- 438 mm
- Depth
- 775 mm
- Height
- 88 mm
- Weight
- 26.9 kg
- Weight basis
- Not stated
Environmental
- Operating temperature, min
- 0 °C
- Operating temperature, max
- 35 °C
- Operating altitude, max
- 3,050 m
Ordering
Orderable configurations
| Part number | Description (as published) | Includes PSUs and fans | Airflow |
|---|---|---|---|
| 920-9N42F-00RI-3C1 | NVIDIA Spectrum-4 based 800GbE 2U Open Ethernet switch with Cumulus Linux Authentication, 64 OSFP ports and 2 SFP28 ports, 4 AC PSUs, Secure-boot, standard depth, Connector-to-Power Airflow, Tool-less Rail Kit | Yes | Port to power |
